Hood Sensor/Switch (For Alarm): Service and Repair

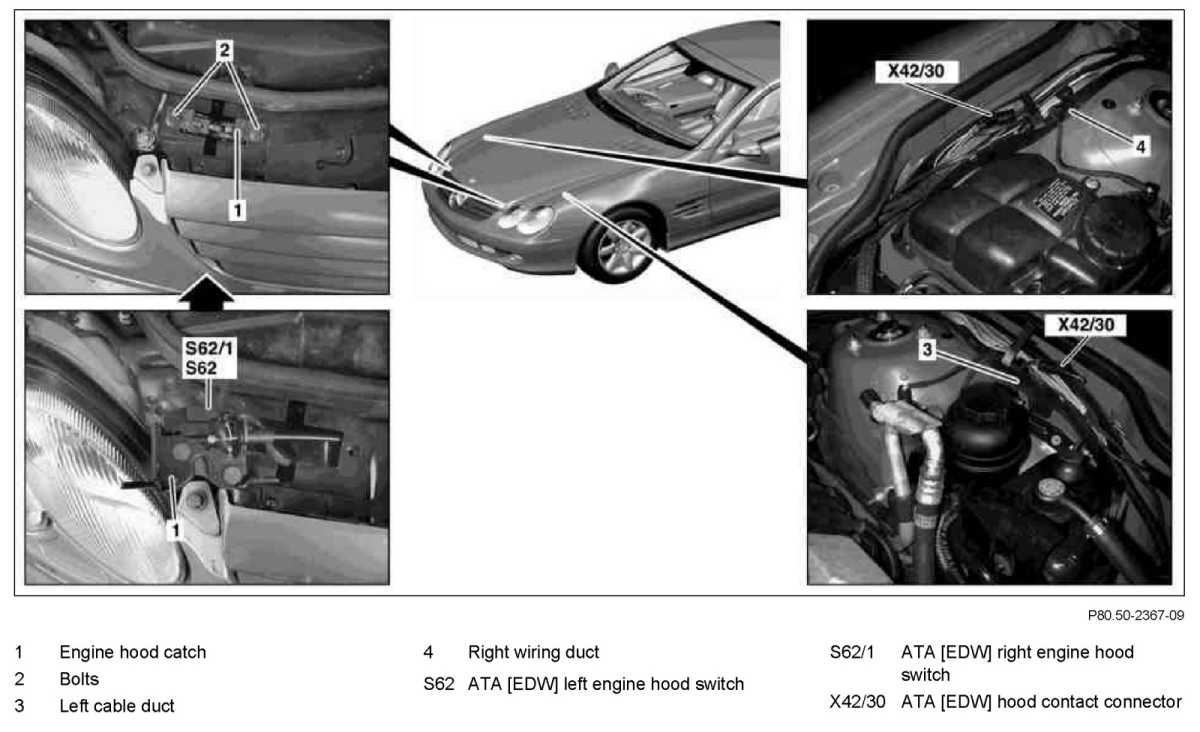

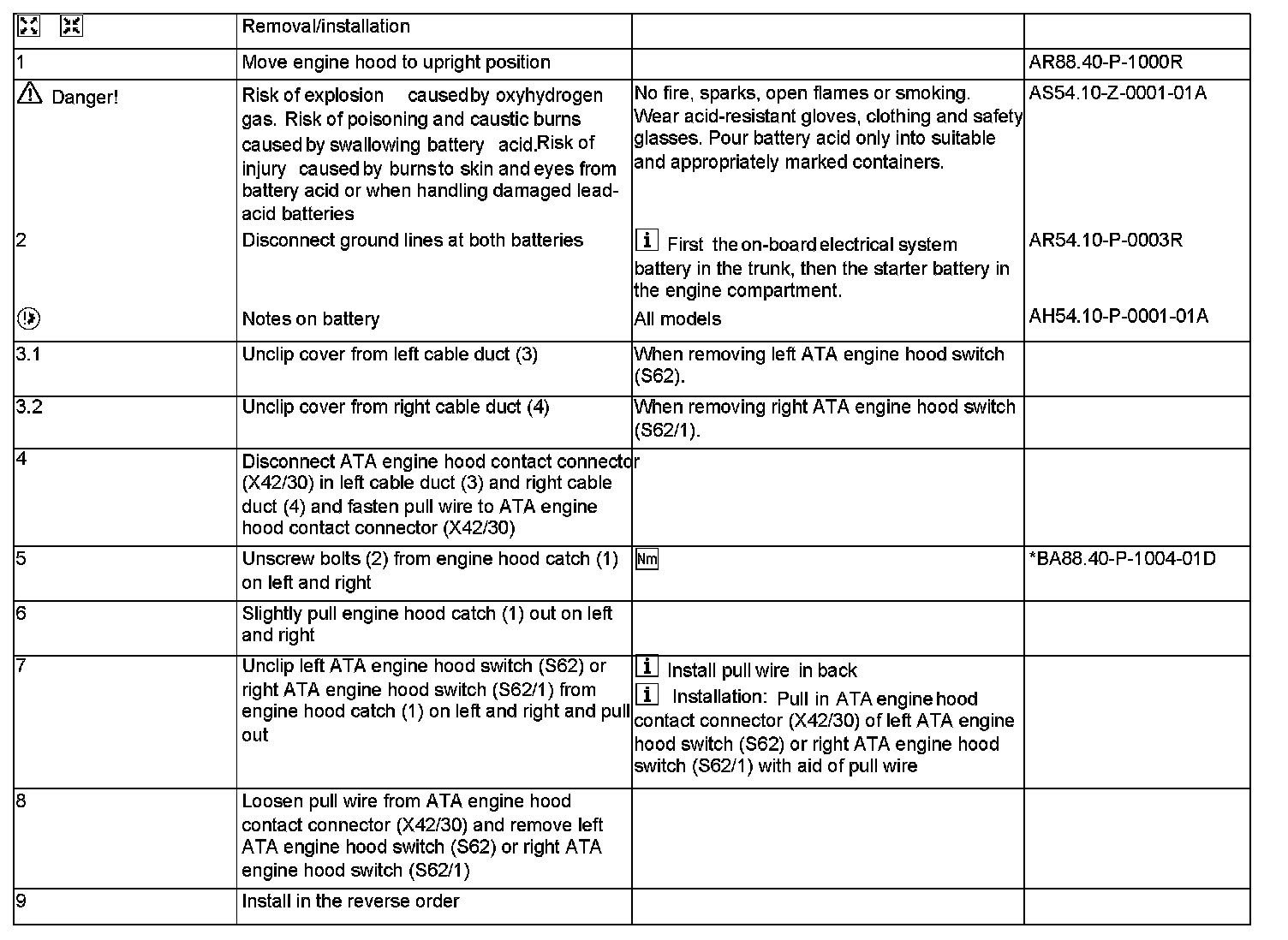

AR80.50-P-0004R Remove/Install ATA Engine Hood Switch

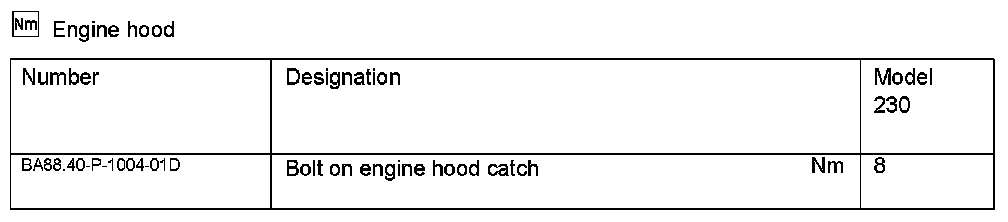

Engine Hood:
