PE91.30-P-2103KA Wiring Diagram For AIRSCARF Control Unit

Wiring Diagram For AIRSCARF Control Unit PE91.30-P-2103KA
- with CODE (403) Airscarf system
- control unit N25/7

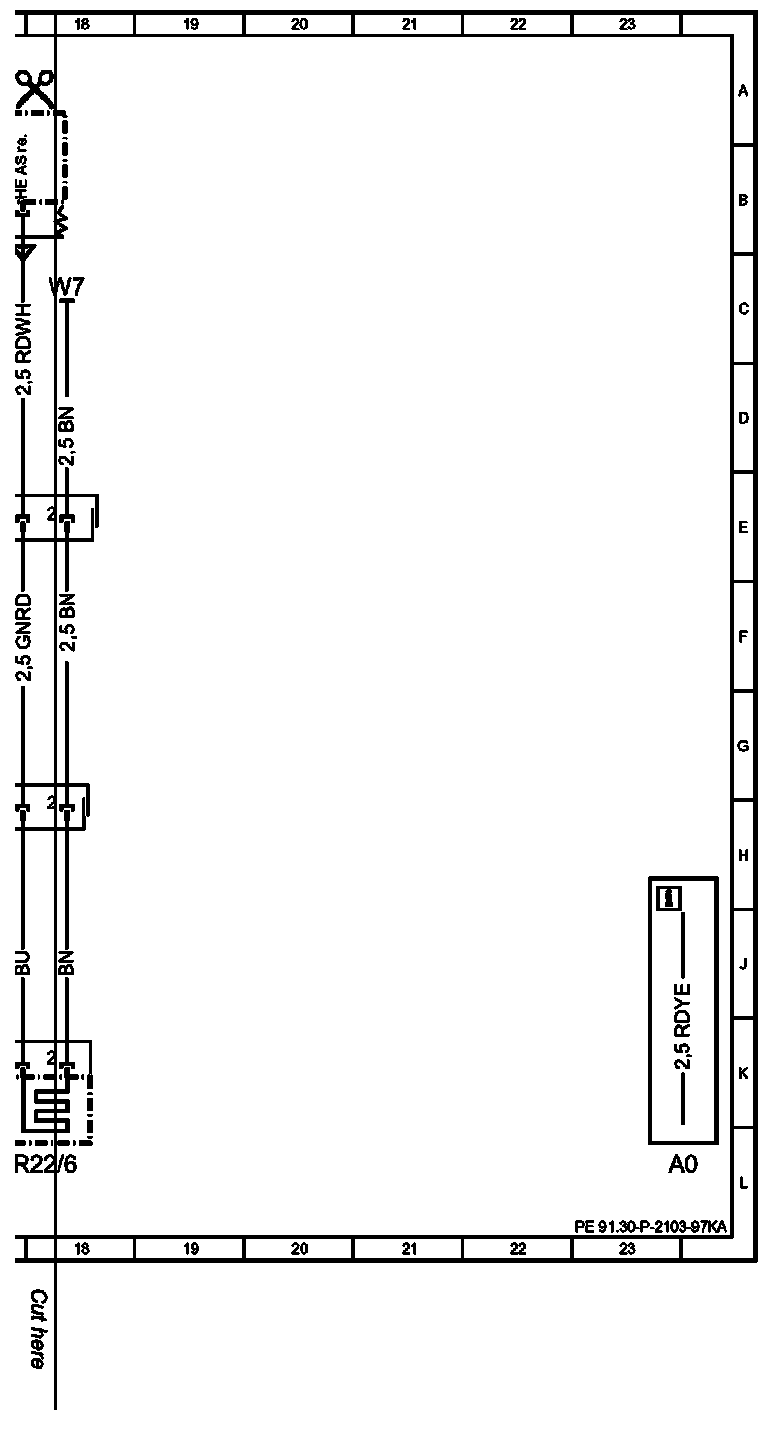

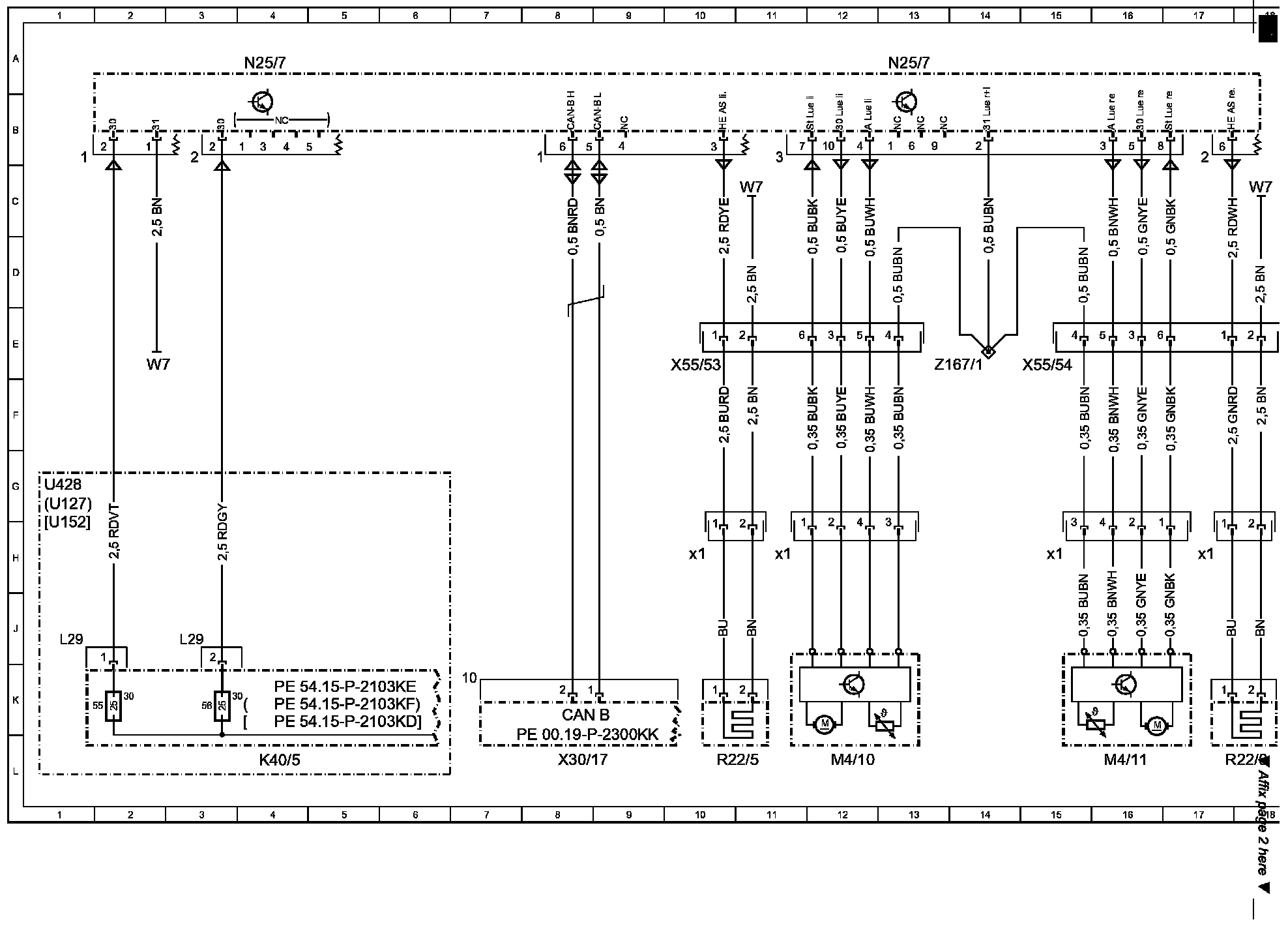

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

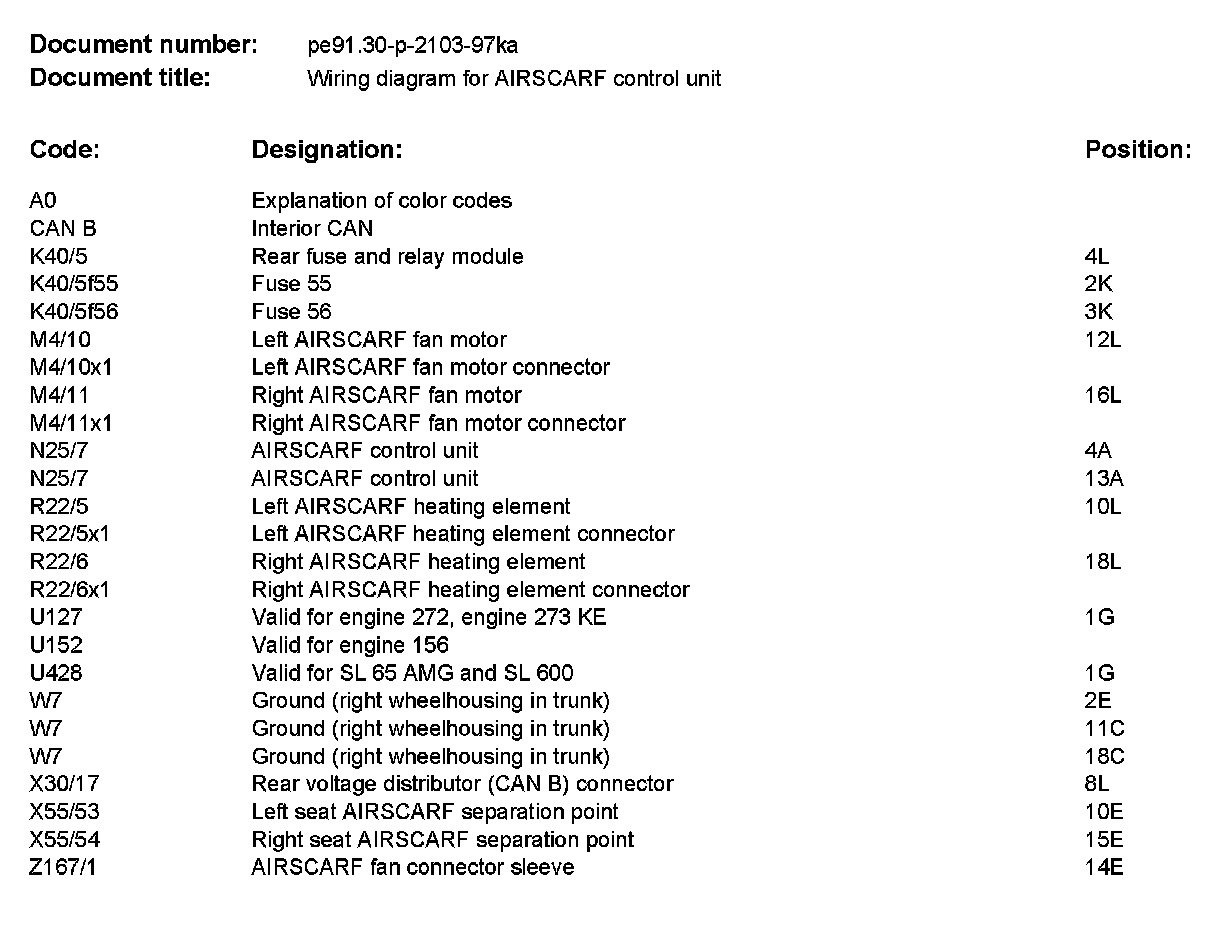

Component Description/Coordinates, A0 To Z167/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
