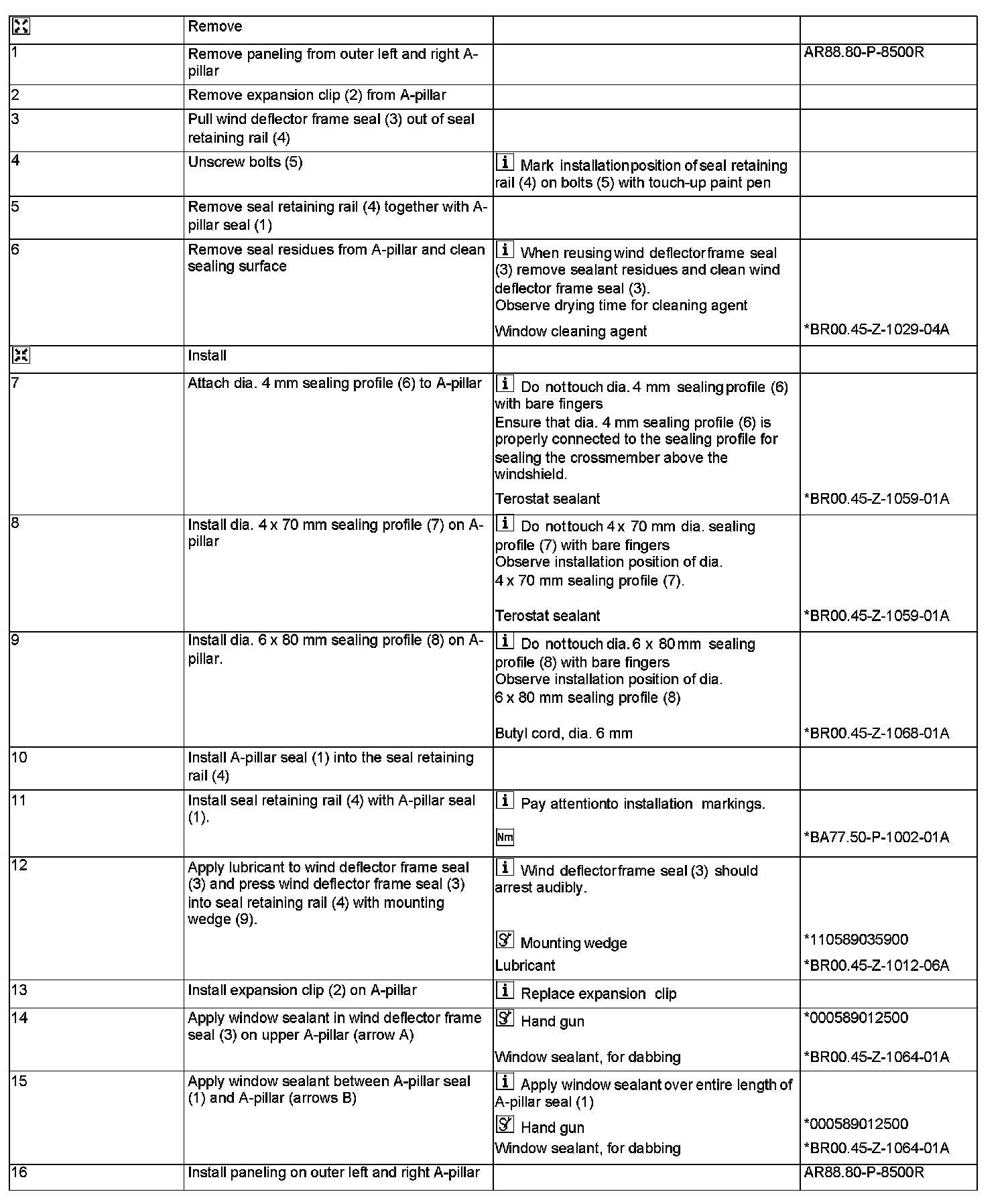

AR77.50-P-4000R Remove/Install A-Pillar Seal
AR77.50-P-4000R Remove/Install A-Pillar Seal
AR77.50-P-4000R Remove/Install A-Pillar Seal

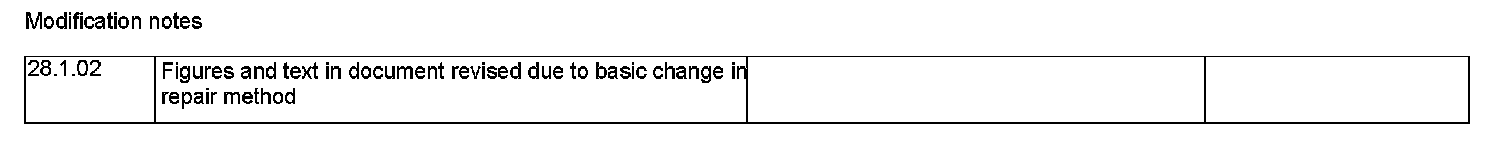

Modification Notes:
Hardtop:
