AR88.50-P-5120R Remove/Install Hinge Bracket For Trunk Lid

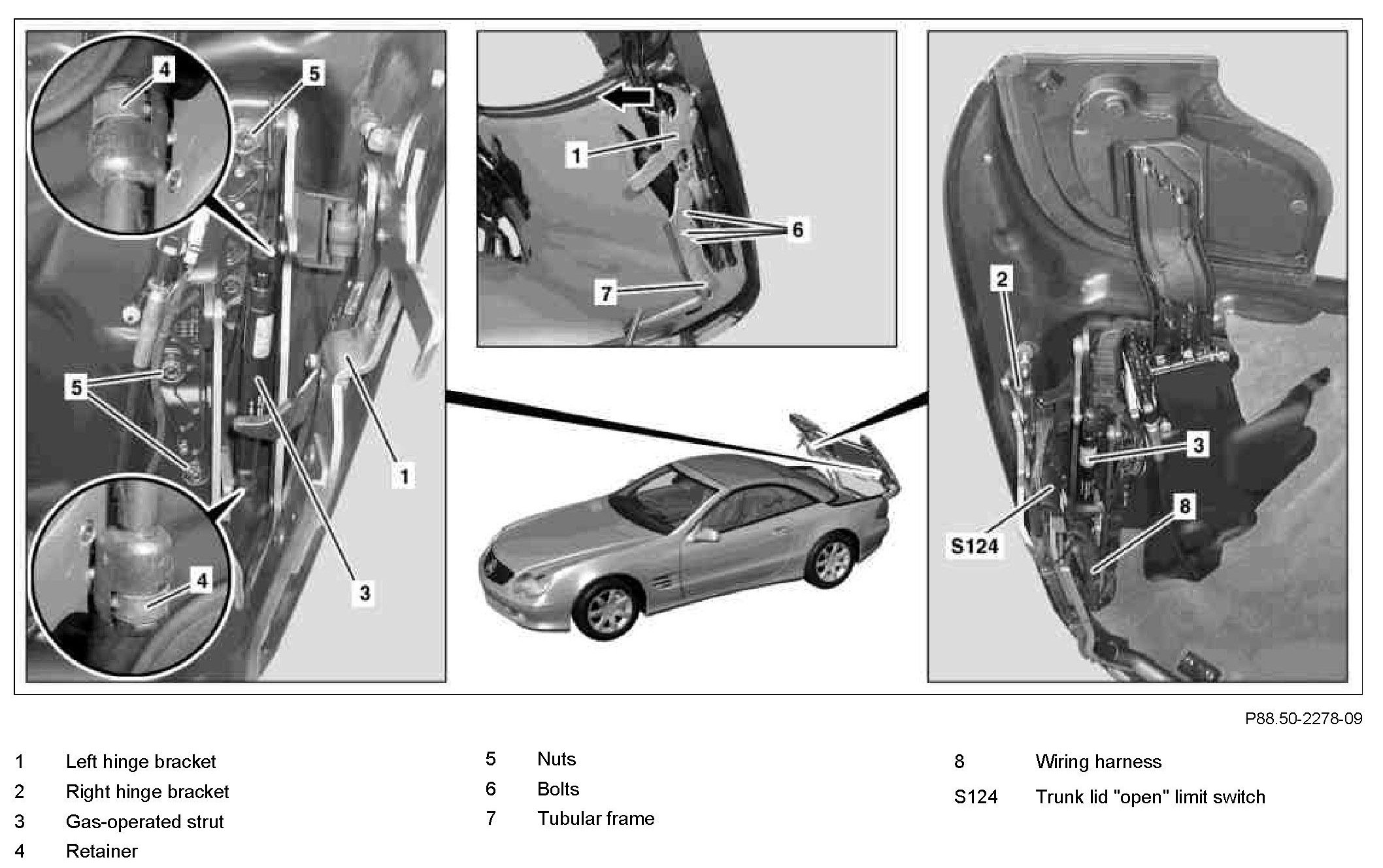

Component Identification:

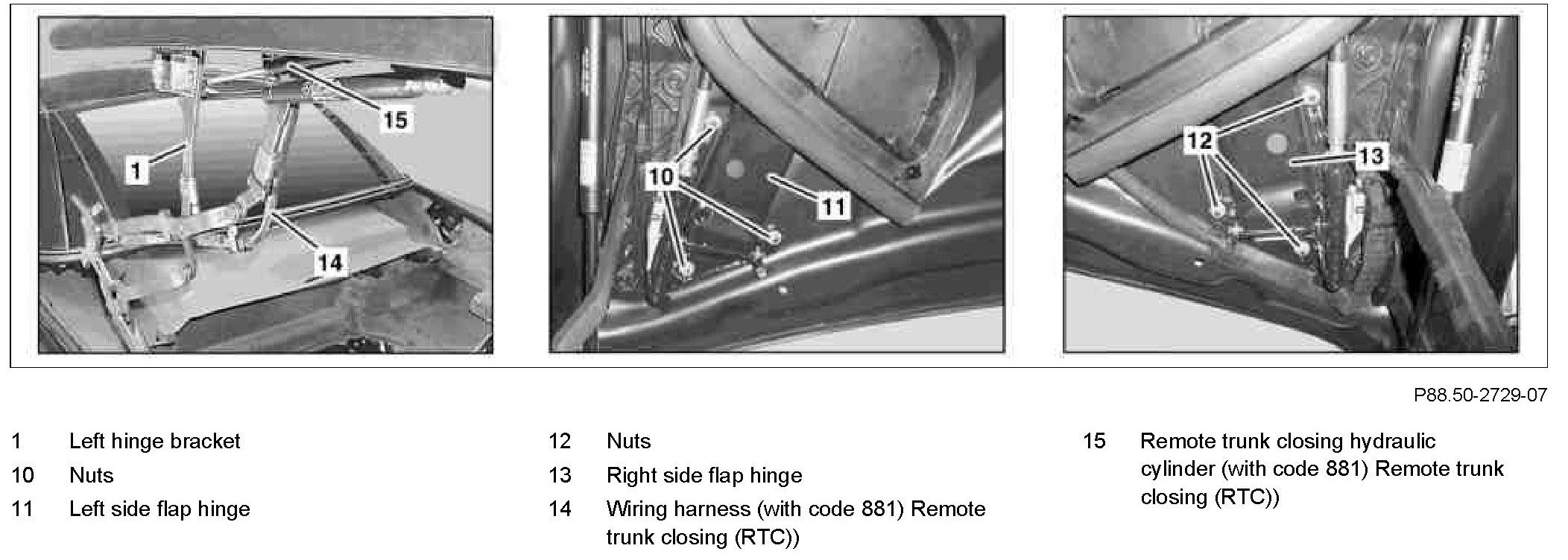

Component Identification:

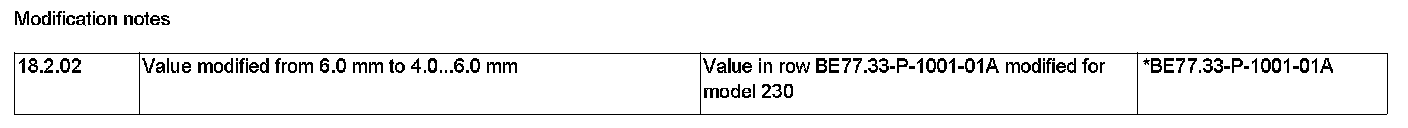

Modification Notes:

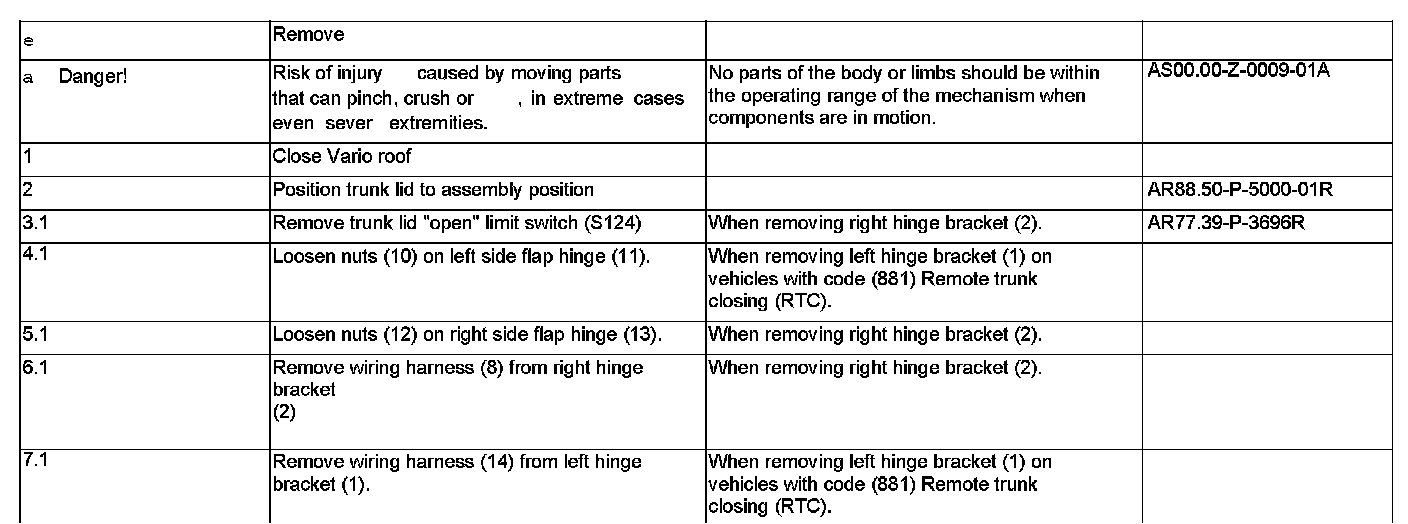

Step 1 - 7.1:

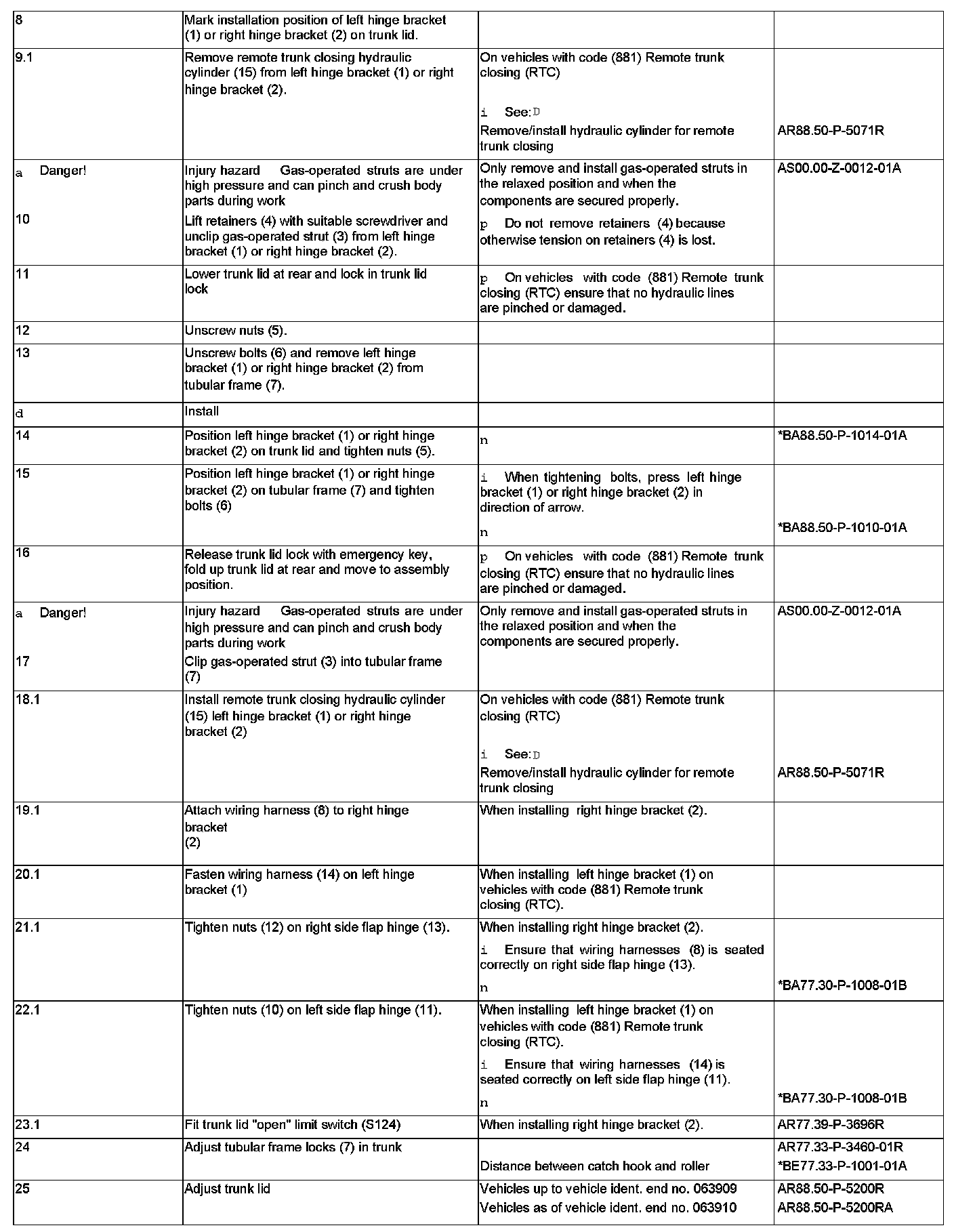

Step 8 - 25:

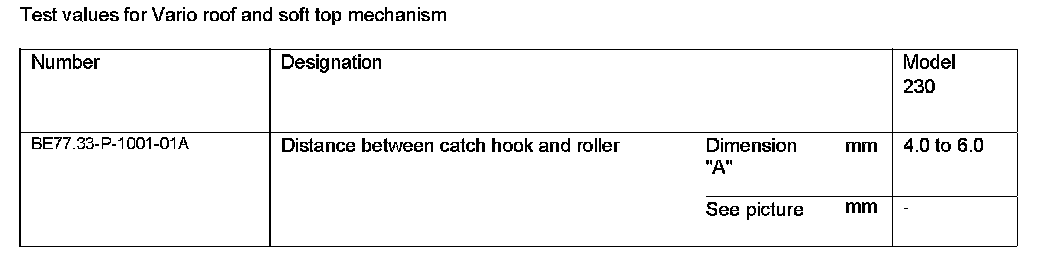

Test Values For Vario Roof And Soft Top Mechanism:

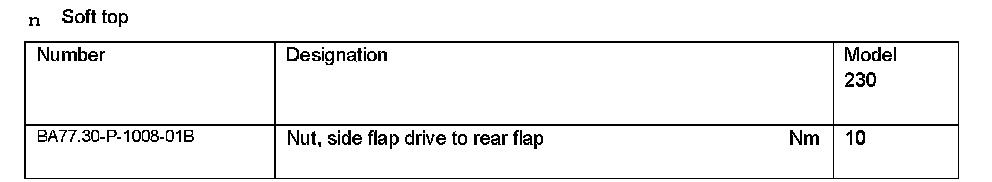

Soft Top:

Trunk Lid:
