Home >> Mercedes Benz >> 2007 >> SL 55 AMG (230.472) V8-5.5L SC (113.995) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Hood >> Specifications

Hood: Specifications

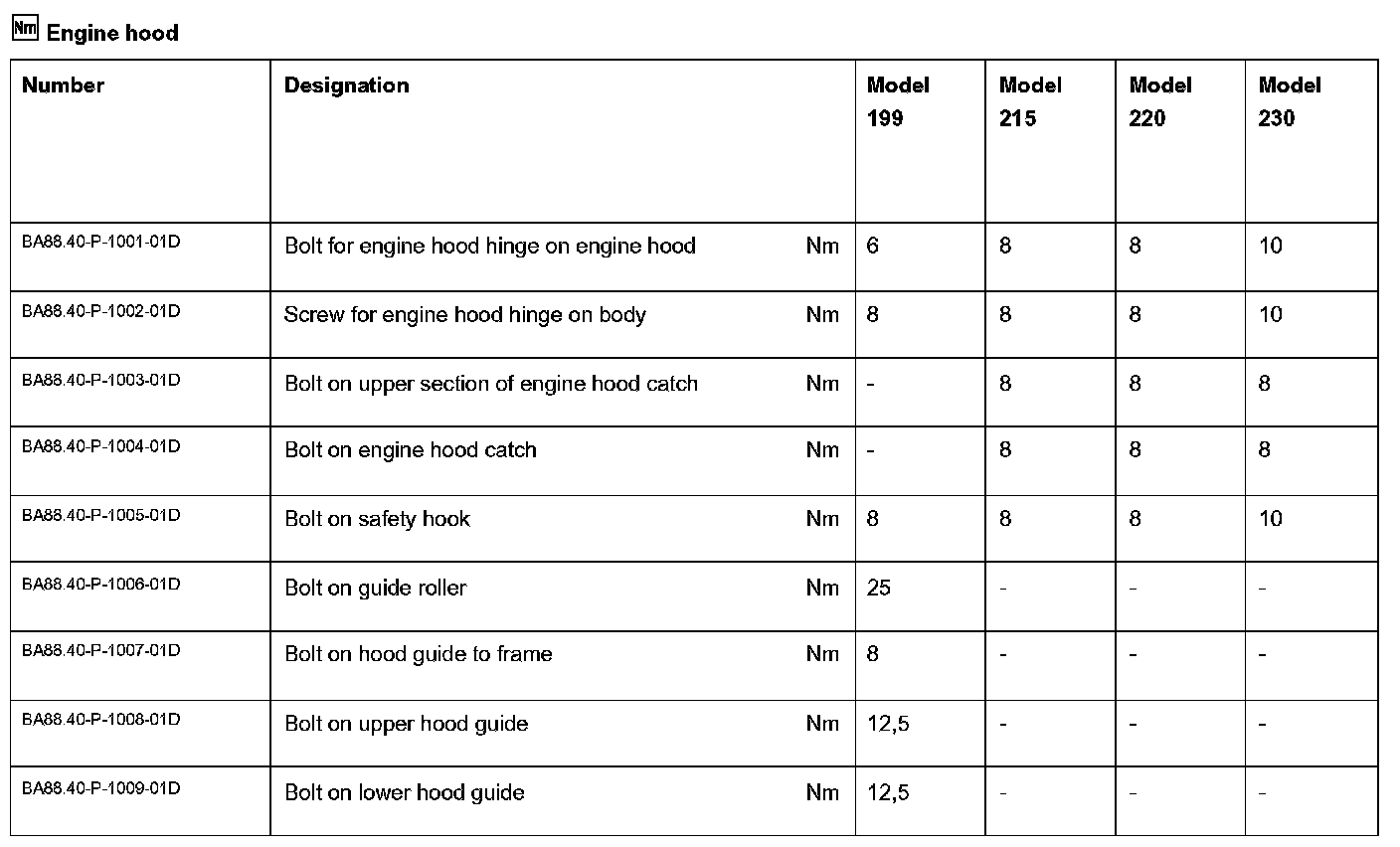

BA88.40-P-1000-01D Engine Hood


Engine Hood:




Engine Hood:
