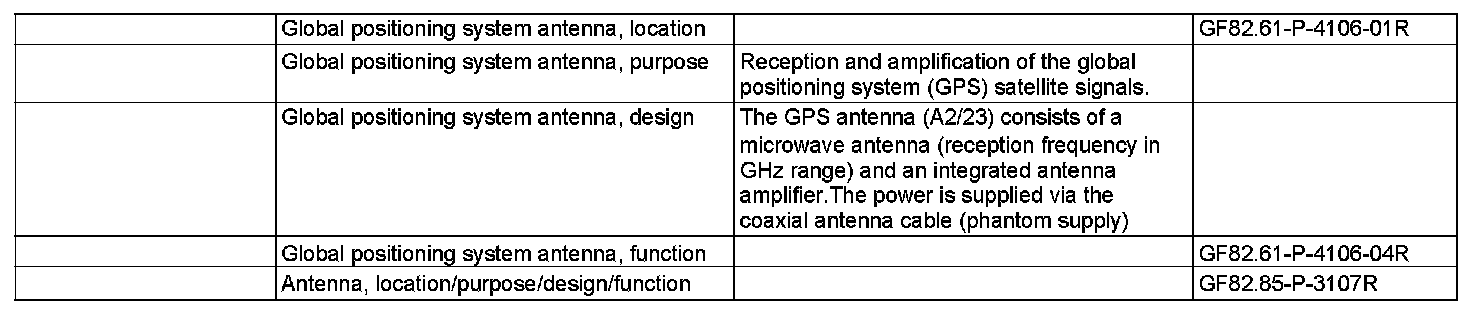

GF82.61-P-4106R Global Positioning System Antenna, Location / Task / Design / Function



GF82.61-P-4106R Global Positioning System Antenna, Location/Task/Design/Function
- with CODE (527) COMAND APS (with navigation)
- with CODE (349) E Call emergency call system

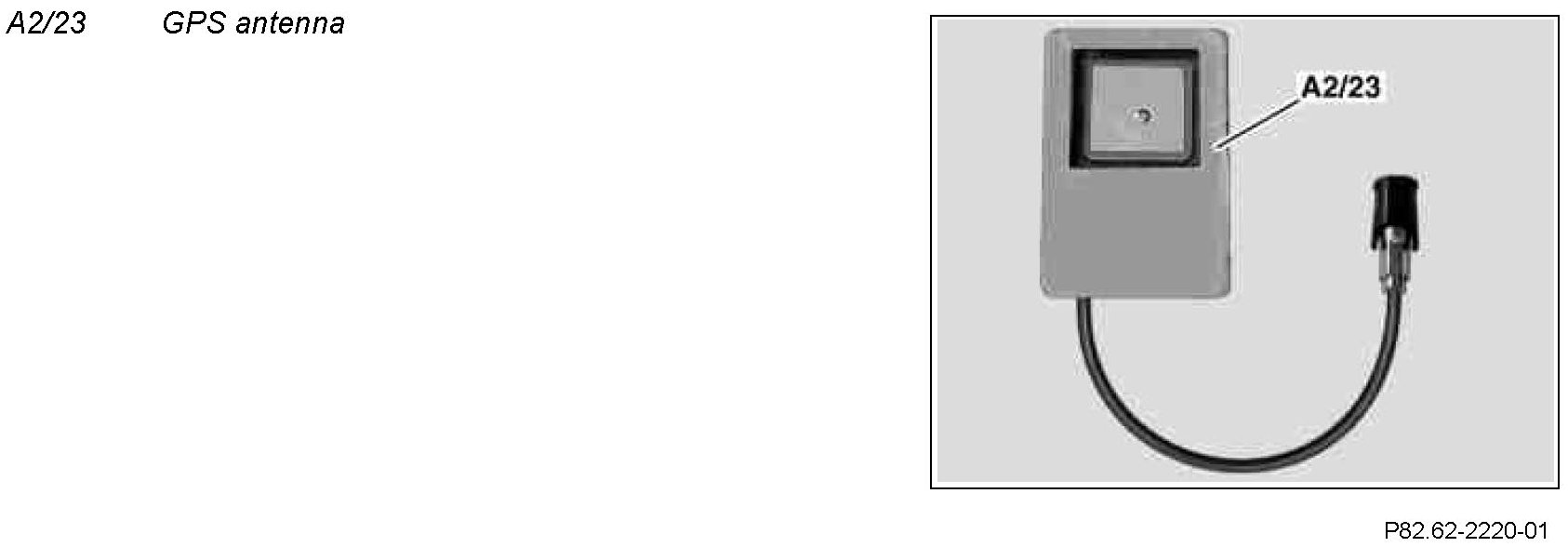

Component Identification:
