GF82.85-P-3114-07RMU Operating, Display Unit With Control Unit, Design

GF82.85-P-3114-07RMU Operating, Display Unit With Control Unit, Design

Component Identification:

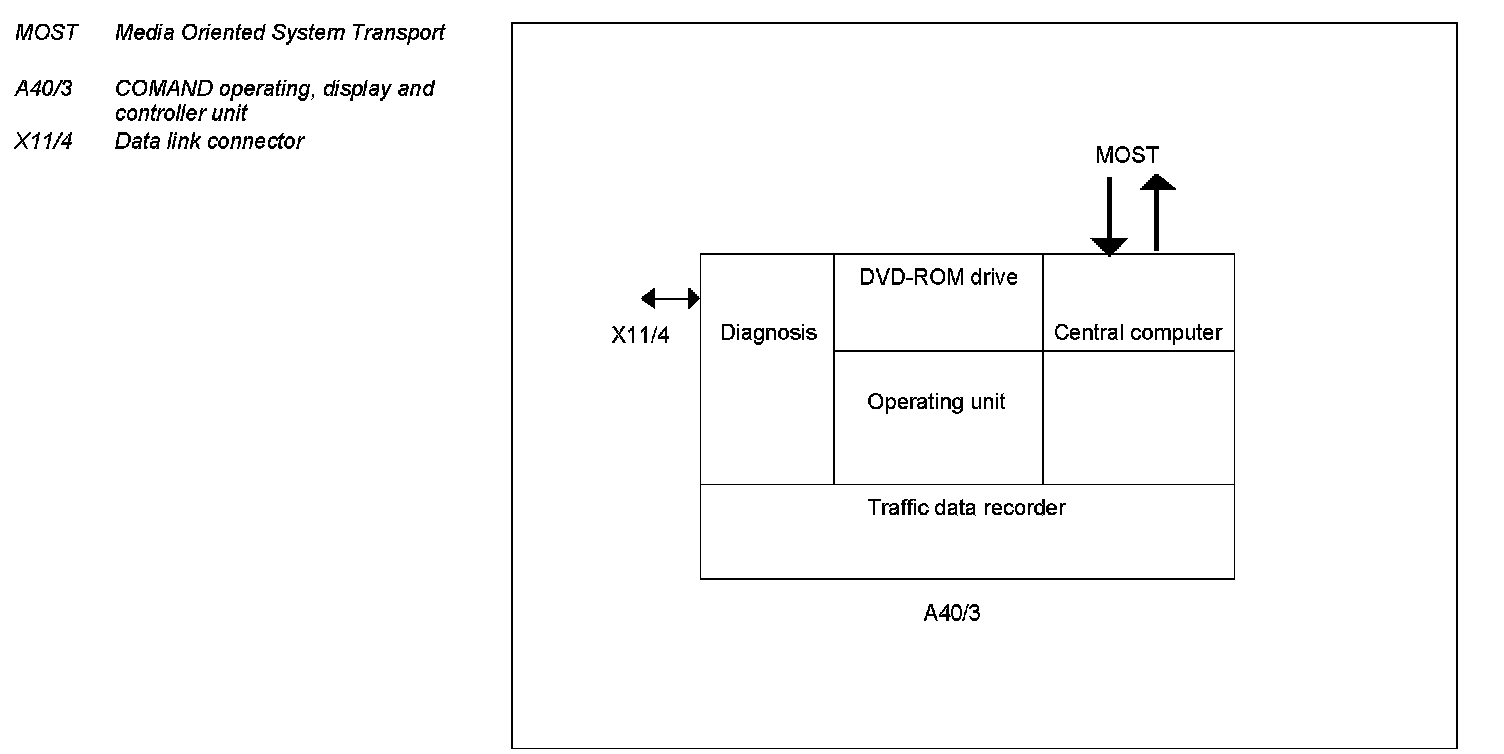

The following are integrated in the COMAND operating, display and controller unit (A40/3):
^ Graphic compatible color liquid crystal display (LCD)
^ Digital versatile disk (DVD) ROM drive for playing video DVDs, audio CDs and MP3s
^ Traffic data recorder

The COMAND operating, display and controller unit (A40/3) is also equipped with an "AUX jack" in the glove compartment, which can be used as a connection option for additional audio sources such as, e.g. an MP3 player.

The COMAND, operating, display and controller unit (A40/3) features the following digital interfaces:
^ Controller Area Network bus, class B (interior) (CAN-B)
^ Media Oriented System Transport (MOST)
^ Data link connector (X11/4)
