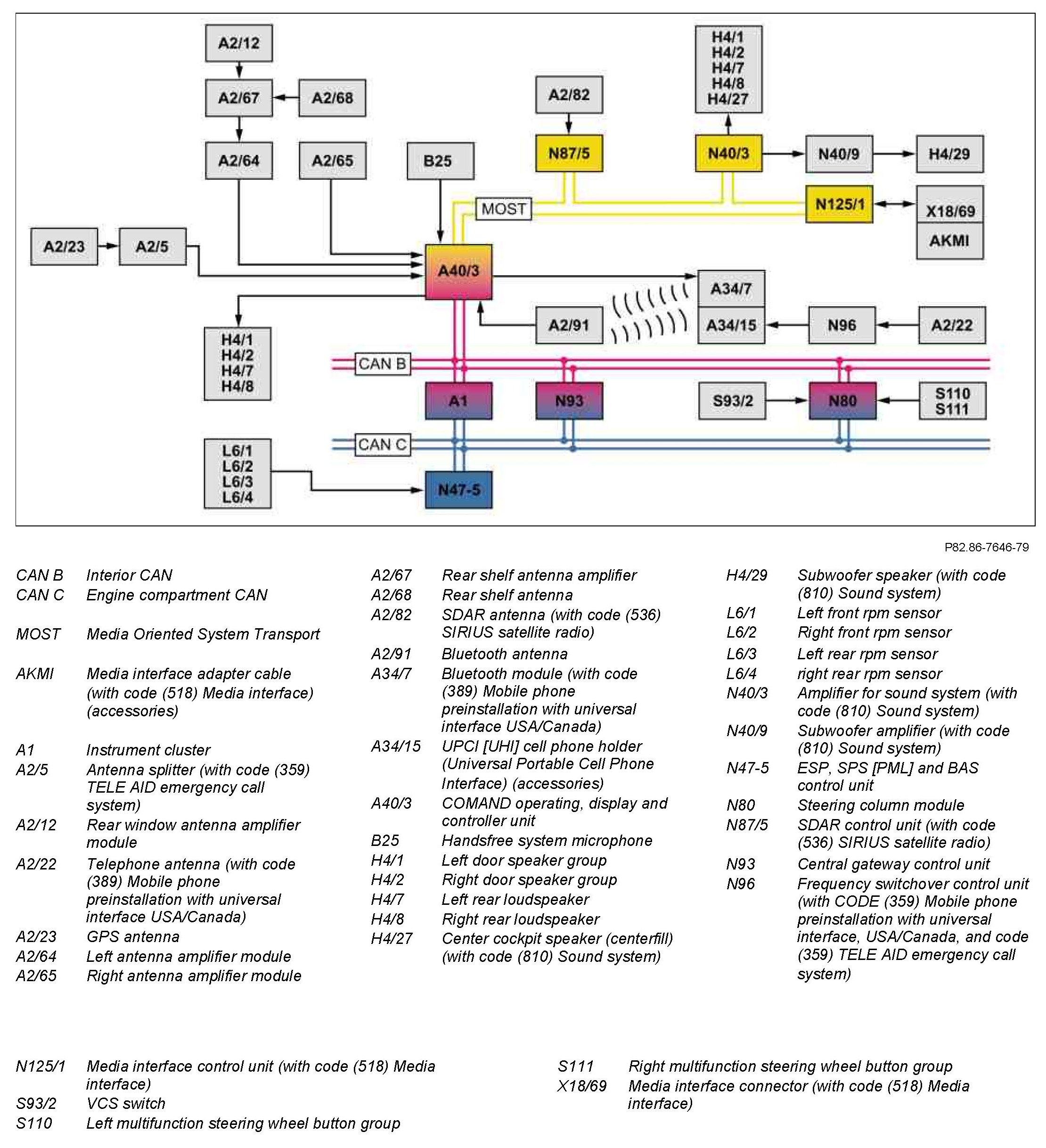

GF82.85-P-0003-11RIB Cockpit Management and Data System (COMAND) Block Diagram



GF82.85-P-0003-11RIB Cockpit Management And Data System (COMAND) Block Diagram
- with CODE (512) COMAND APS with DVD changer


Component Identification:
