AR32.22-P-8000T Check Air Suspension For Leaks



AR32.22-P-8000T Check air suspension for leaks
- Except CODE (489) Airmatic (semi-active air suspension)

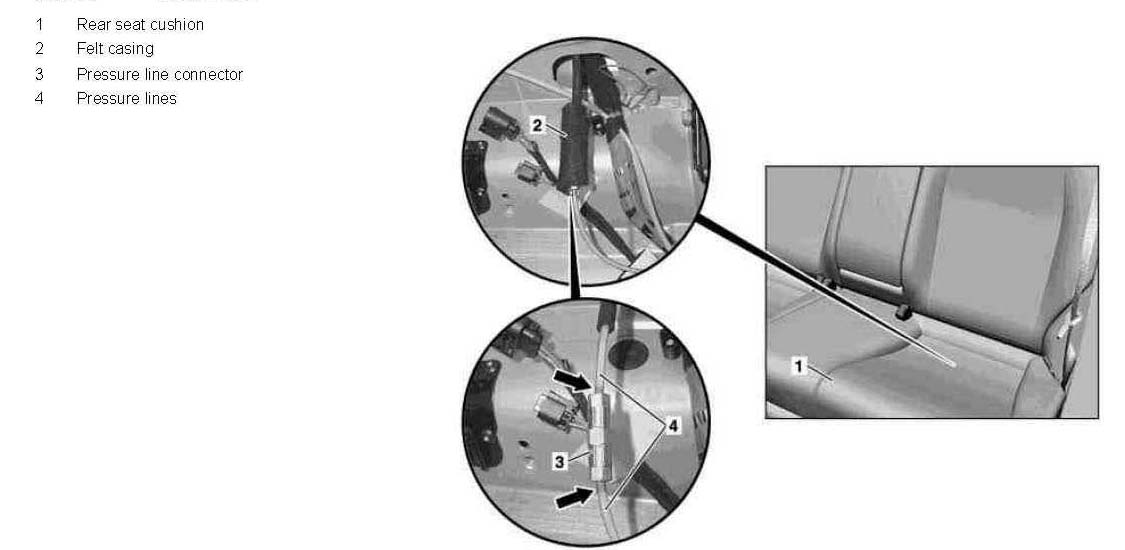

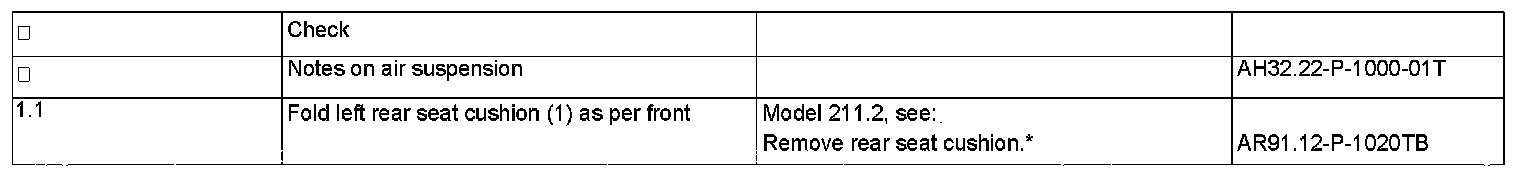

Step 1:

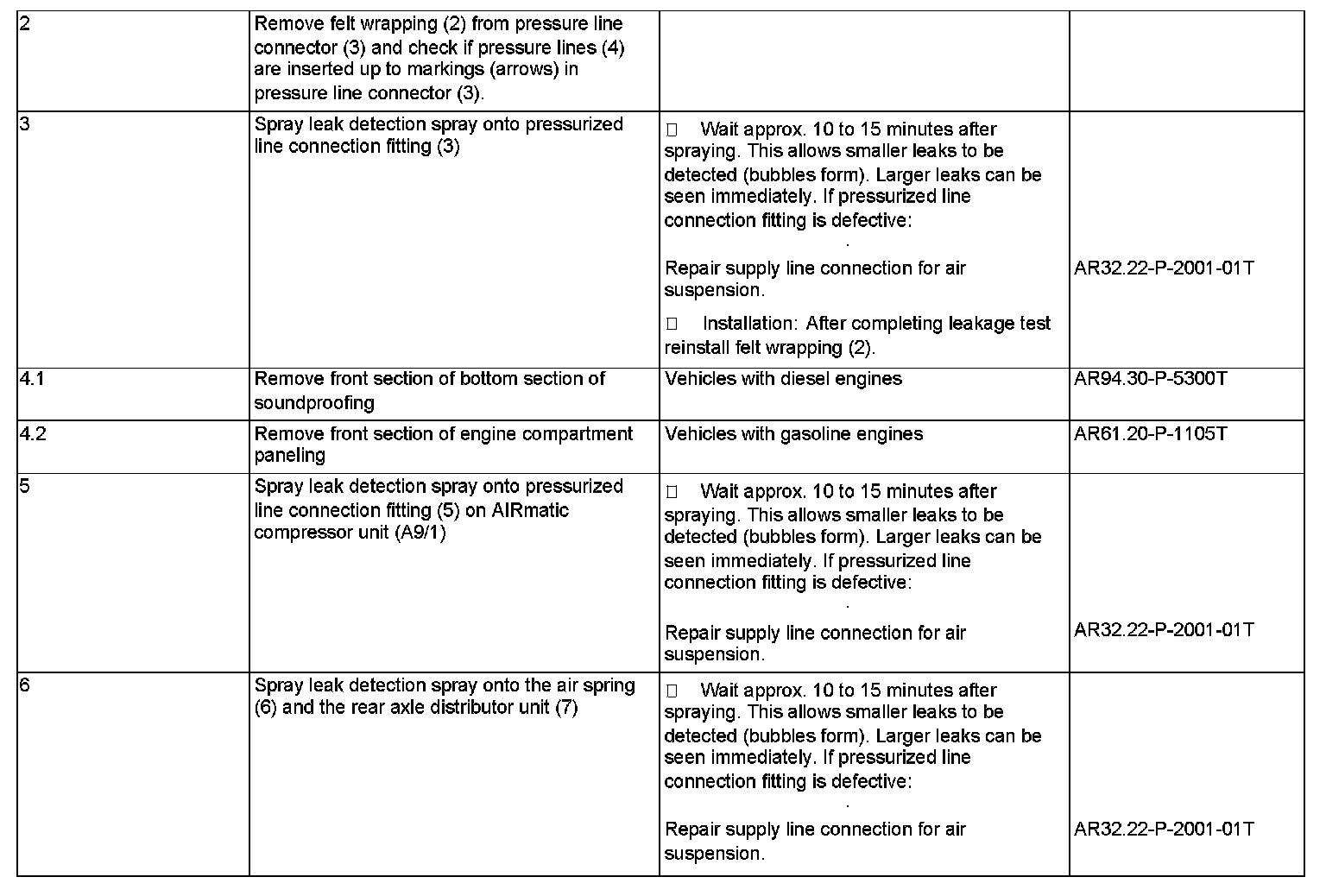

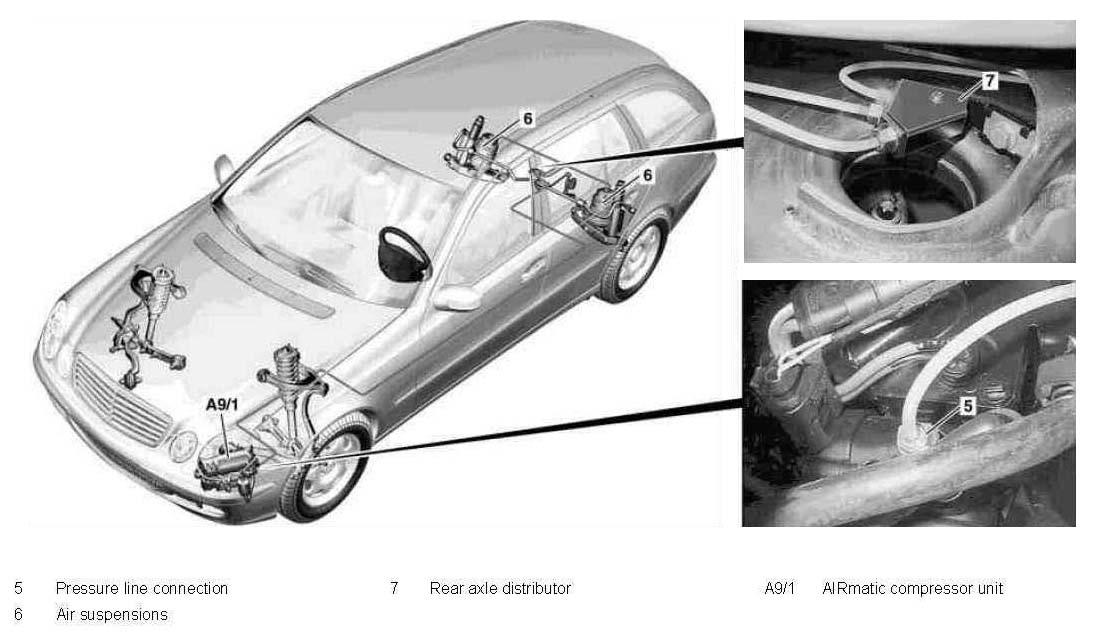

Steps 2-6:
