Home >> Mercedes Benz >> 2007 >> E 350 4MATIC Wagon (211.287) V6-3.5L (272.972) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Locations >> GF32.33-P-0004-06A Electronic Rear Axle Level Control, Location of Components

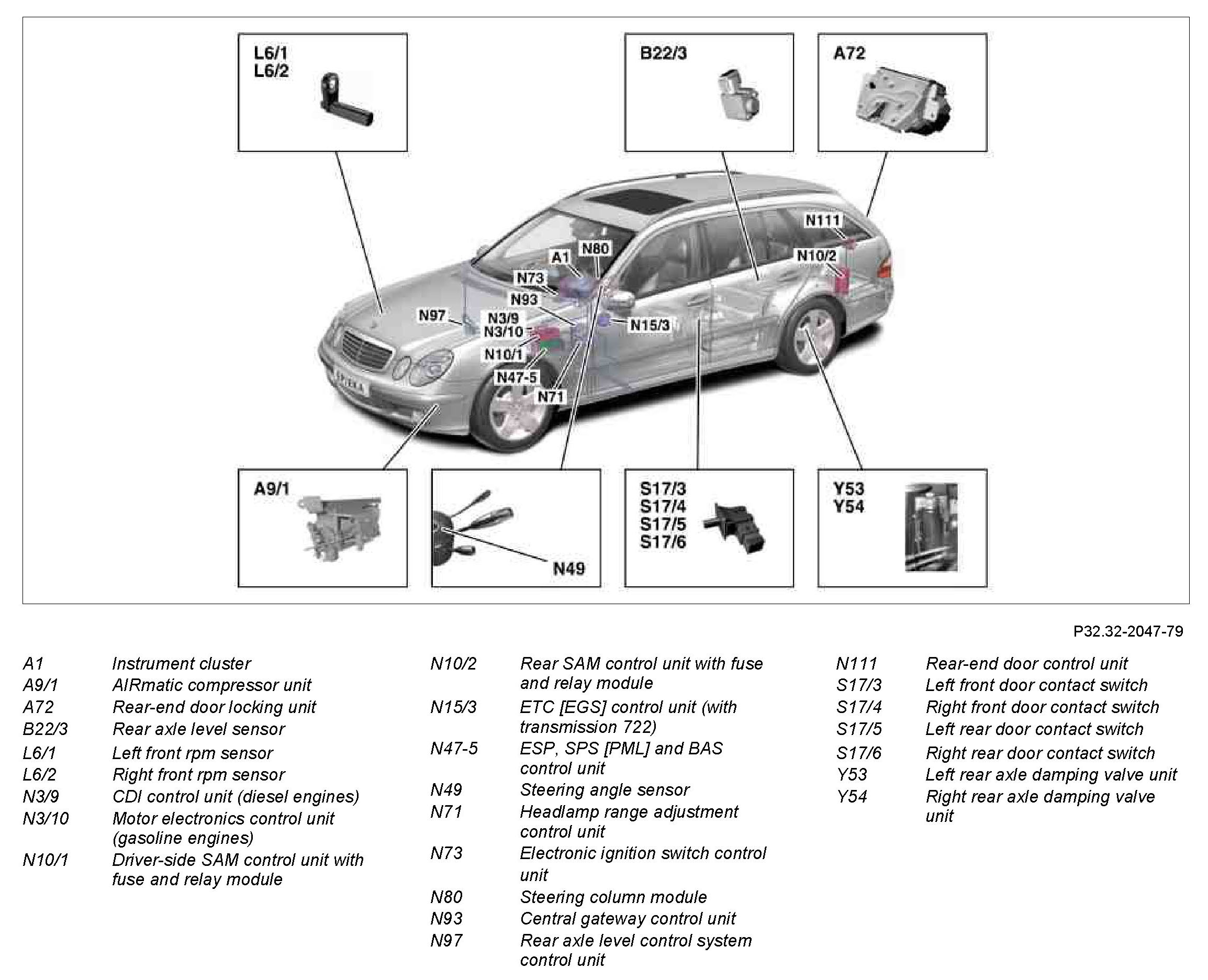

GF32.33-P-0004-06A Electronic Rear Axle Level Control, Location of Components



GF32.33-P-0004-06A Electronic rear axle level control, location of components
- except CODE (489a) Airmatic (semi-active air suspension)


Component Identification:
