Home >> Mercedes Benz >> 2007 >> E 350 4MATIC Wagon (211.287) V6-3.5L (272.972) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Air Spring >> Service and Repair >> AR32.22-P-1500TA Remove/Install Air Spring

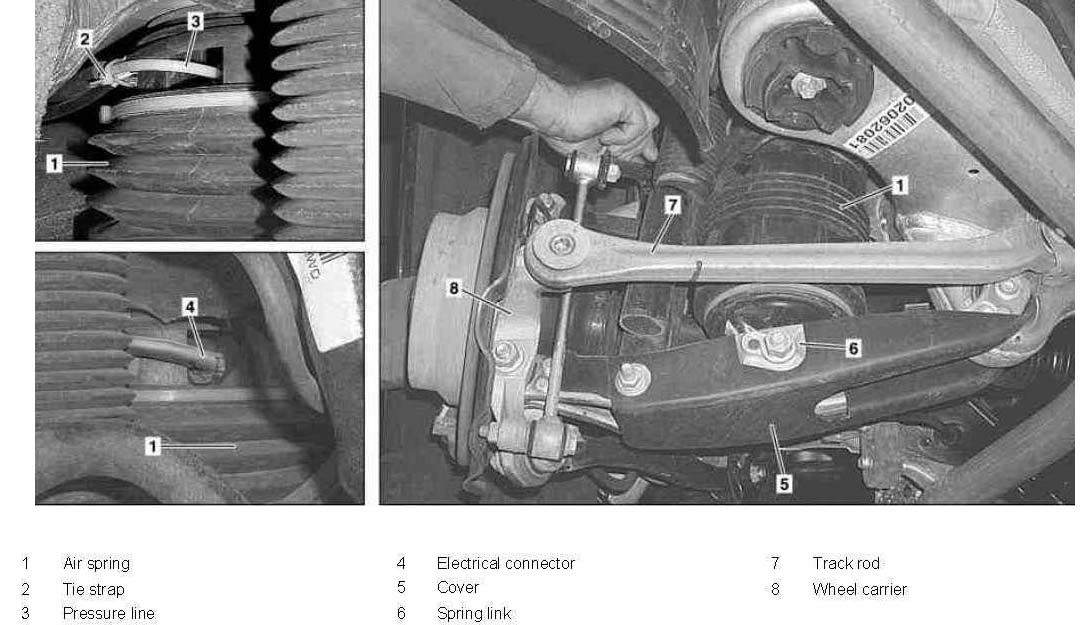

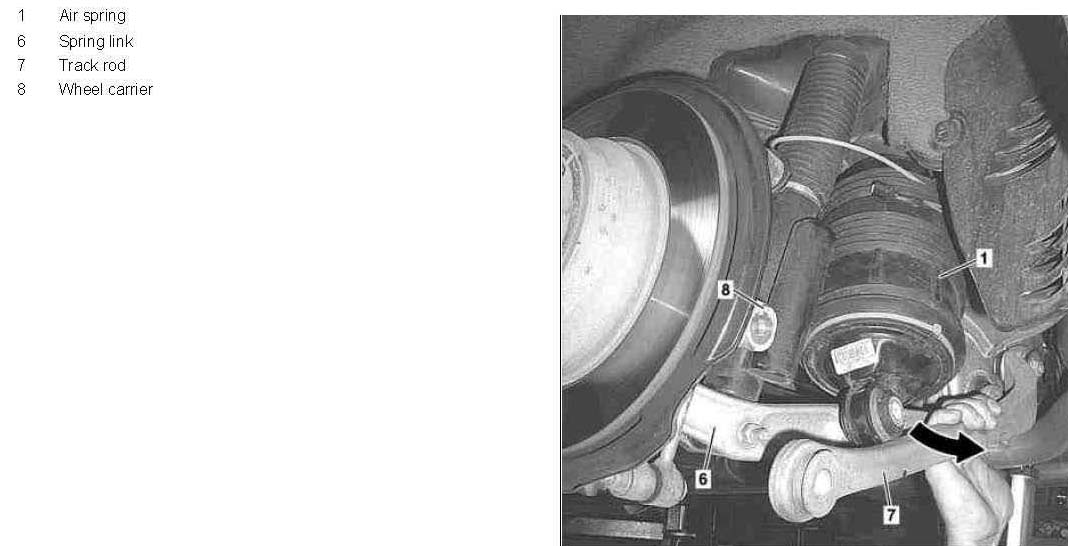

AR32.22-P-1500TA Remove/Install Air Spring



AR32.22-P-1500TA Remove/install air spring
- Except CODE (489) Airmatic (semi-active air suspension)

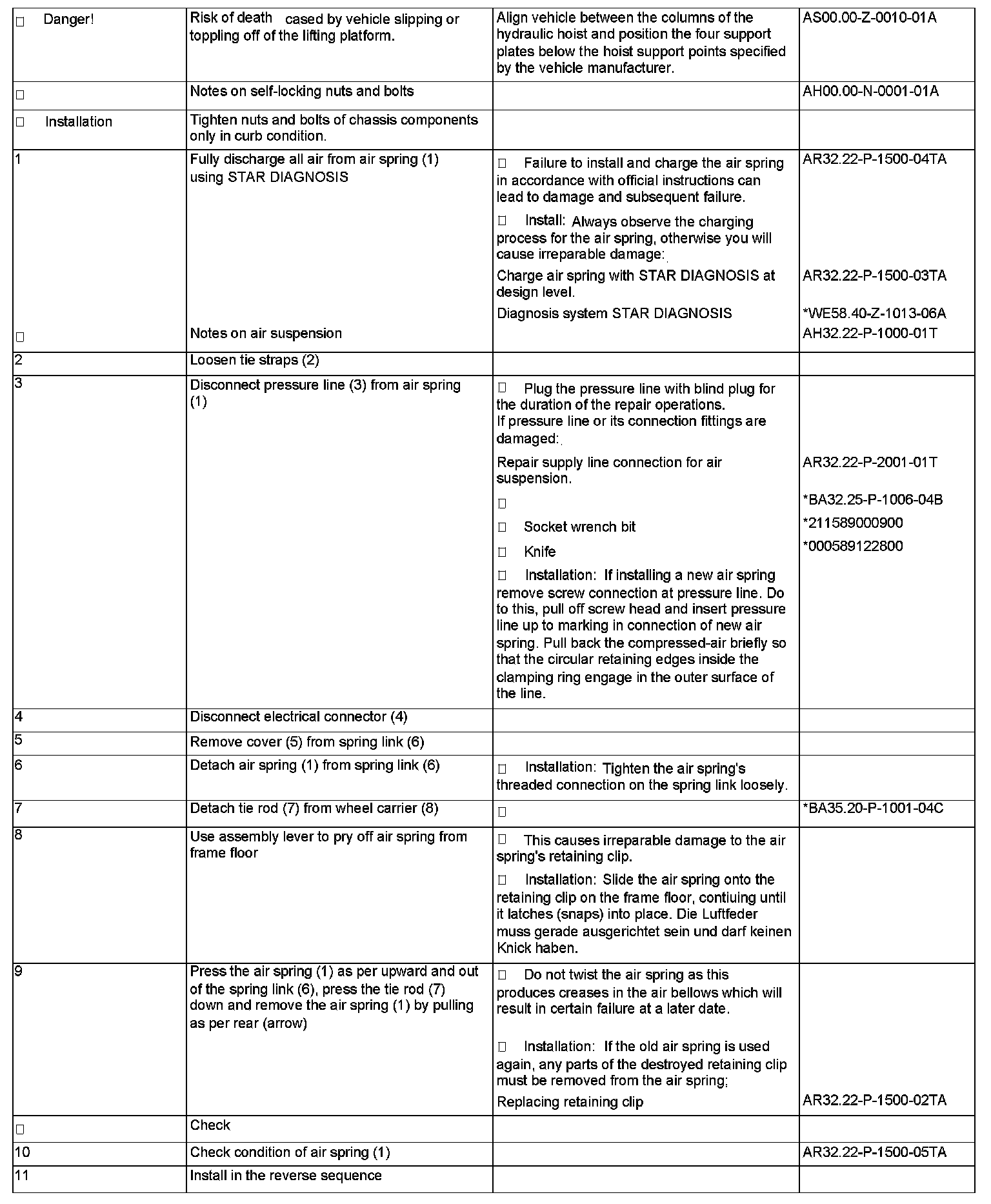

Steps 1-11:
