Home >> Mercedes Benz >> 2007 >> E 350 4MATIC Wagon (211.287) V6-3.5L (272.972) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> Rear Door >> BA72.20-P-1000-02A Rear Door

BA72.20-P-1000-02A Rear Door

BA72.20-P-1000-02A Rear Door

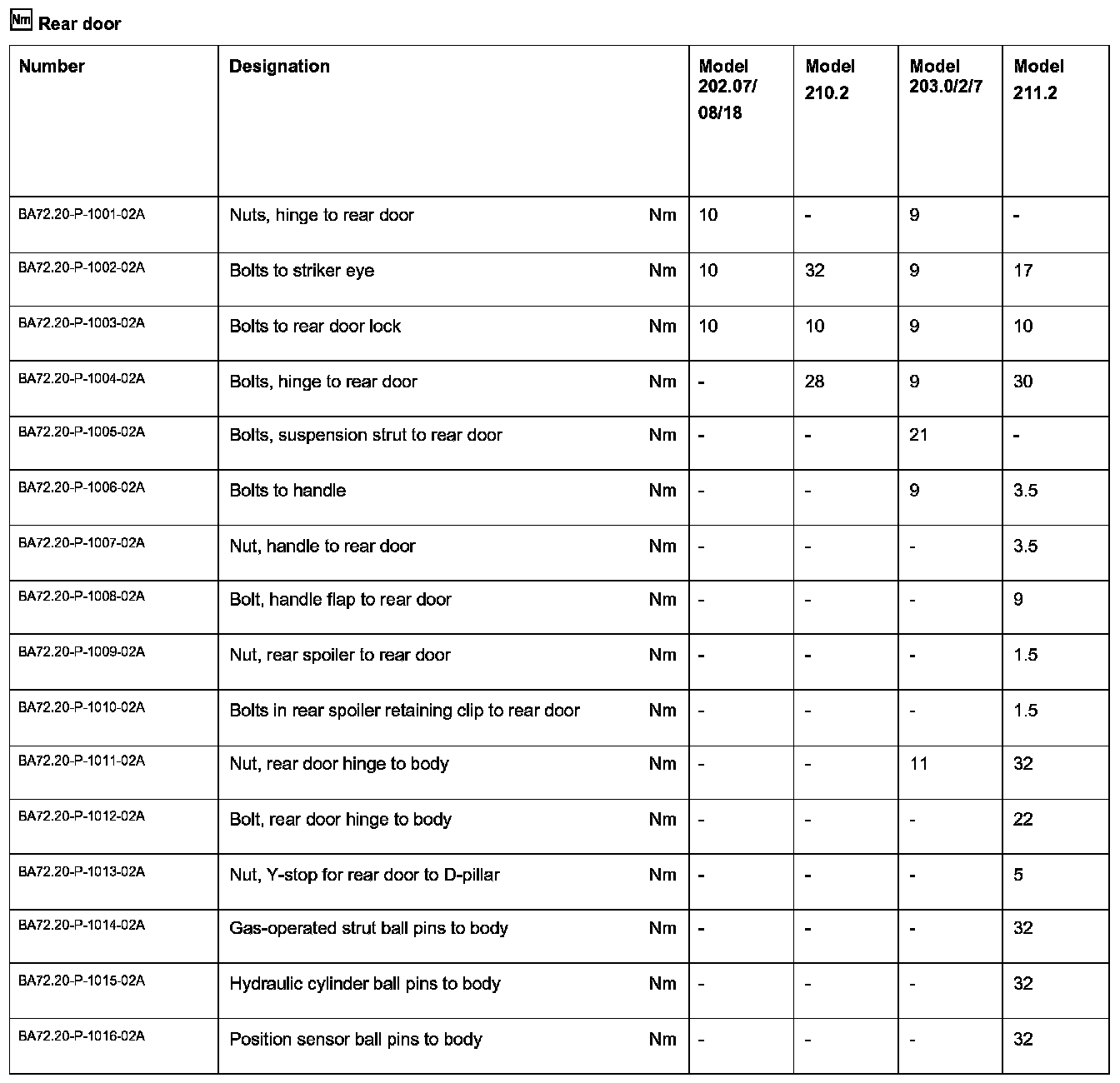

Rear Door:

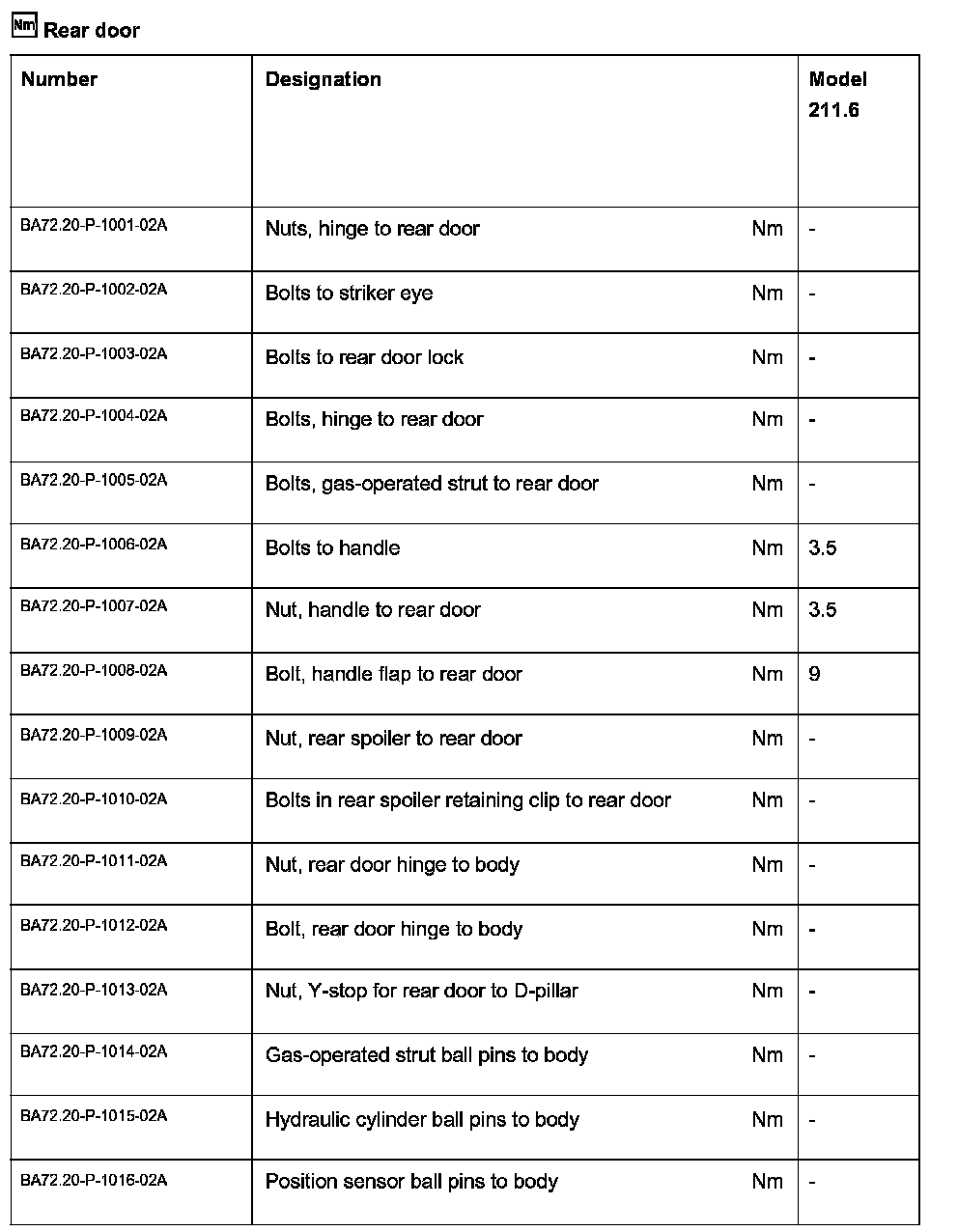

Rear Door:
