Home >> Mercedes Benz >> 2007 >> E 350 4MATIC Wagon (211.287) V6-3.5L (272.972) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Switch >> Service and Repair >> AR72.29-P-0130T Remove/Install Automatic Rear Door Switch

AR72.29-P-0130T Remove/Install Automatic Rear Door Switch



AR72.29-P-0130T Remove/Install Automatic Rear Door Switch
- with CODE (890) Automatic rear-end door

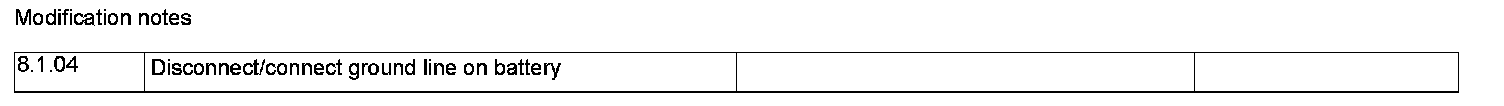

Modification Notes:
