AZ54.65-P-0001-05TT Installing Display Instrument

AZ54.65-P-0001-05TT Installing Display Instrument

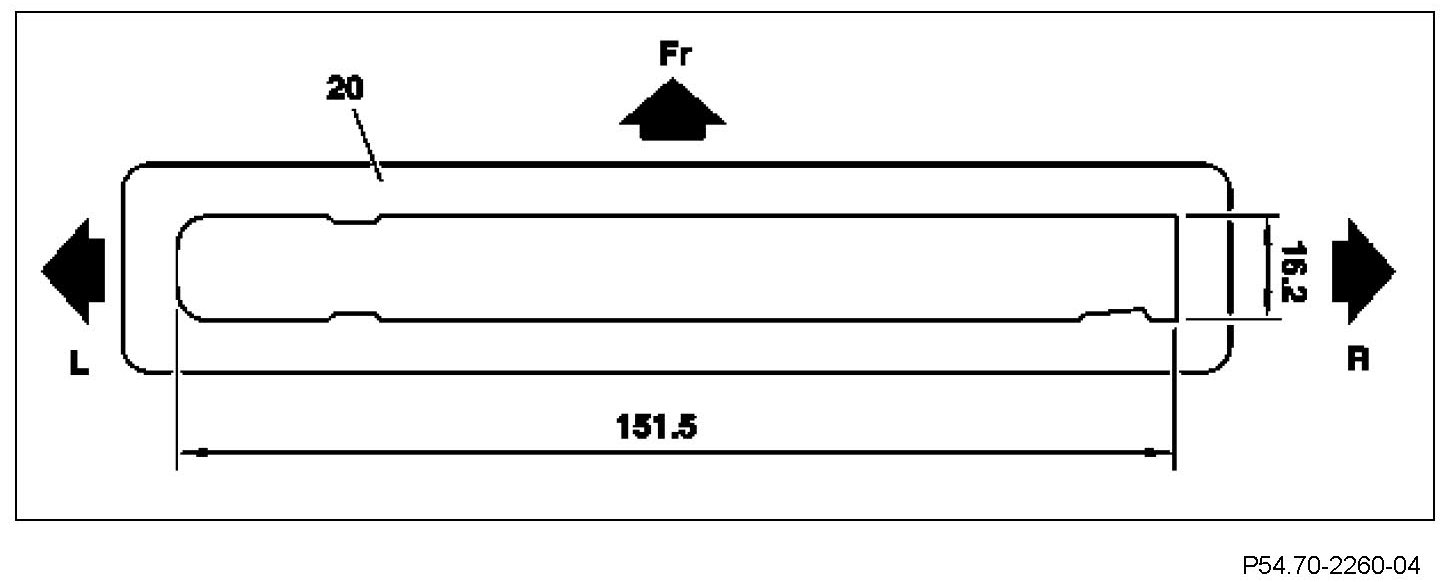

1. Place backing plate (20) in the center of the prestamped recess at the rear of the headliner from above, mark the internal dimensions and cut out carefully.

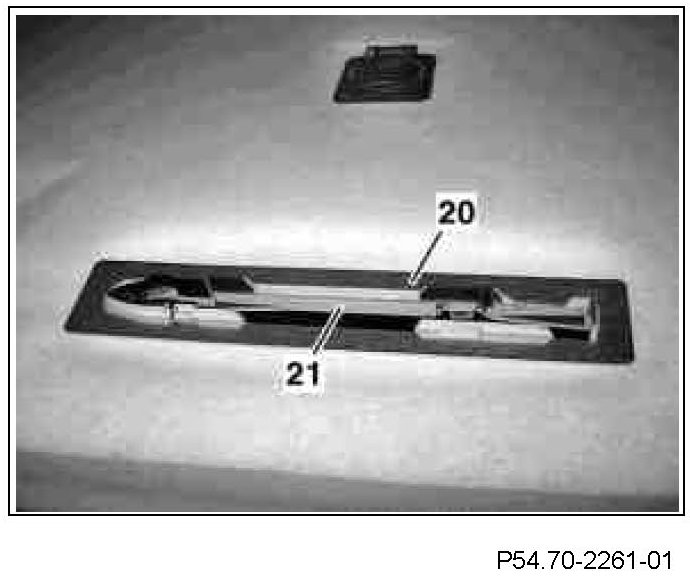

2. Place backing plate (20) on the cutout from above. Clip bracket (21) into backing plate (20) from below.

Component Identification:

Arrow 1 = Push in
Arrow 2 = Lock

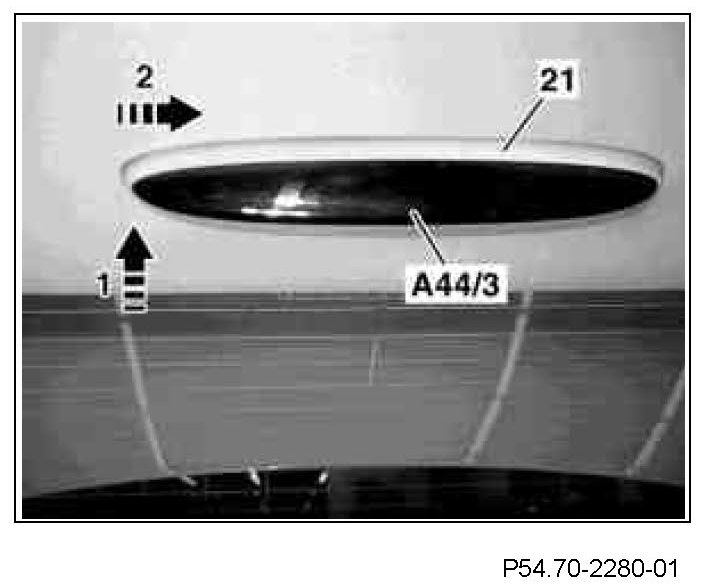

3. Push rear PTS warning display (A44/3) into bracket (21) from below with the connecting coupling pointing to the left, and lock by pushing towards the left side.

Component Identification:

Shown on sedan
20 Backing plate
A44/3 PTS warning display, rear

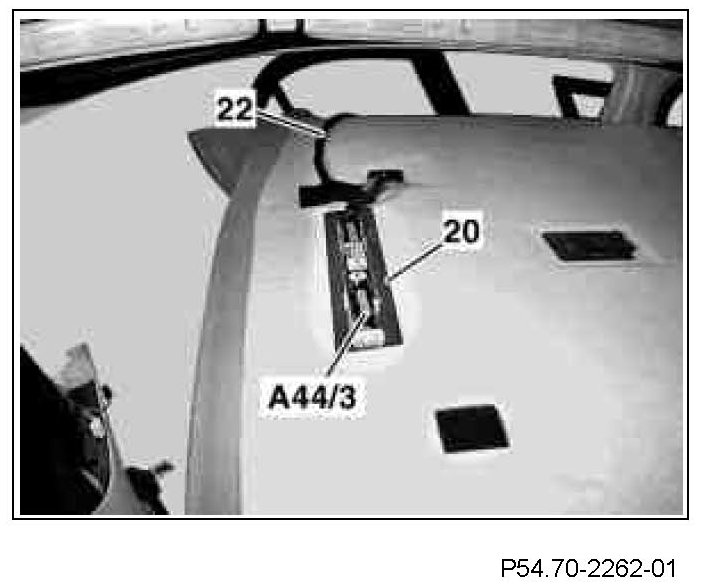

4. Connect warning element wiring harness (22) and attach to headliner with adhesive felt tape as shown in the diagram.

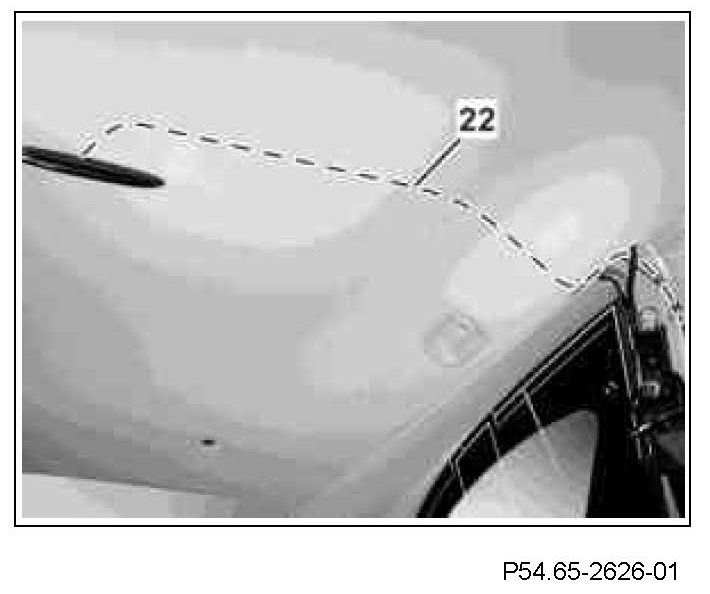

5. Route warning element wiring harness (22) along existing cables on left side of headliner and fasten.

After installing the headliner, the cables should be routed to the left C-pillar along existing cables.

Component Identification:

25 Parking assist wiring harness

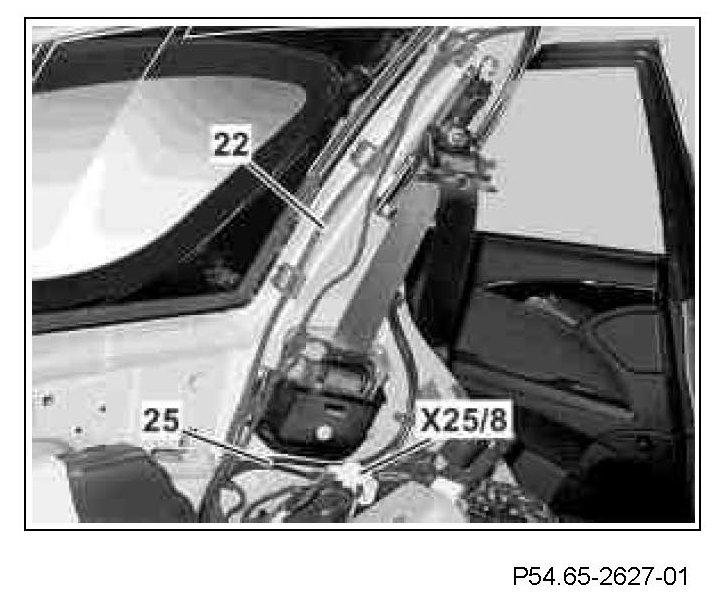

6. Route warning element wiring harness (22) with overhead control panel and frame floor system connector (X25/8) to the side wall beside the left rear door.
