AR32.22-P-6000TA Remove/Install Air Suspension Control Unit



AR32.22-P-6000TA Remove/Install Air Suspension Control Unit
- except CODE (489) Airmatic (semi-active air suspension)

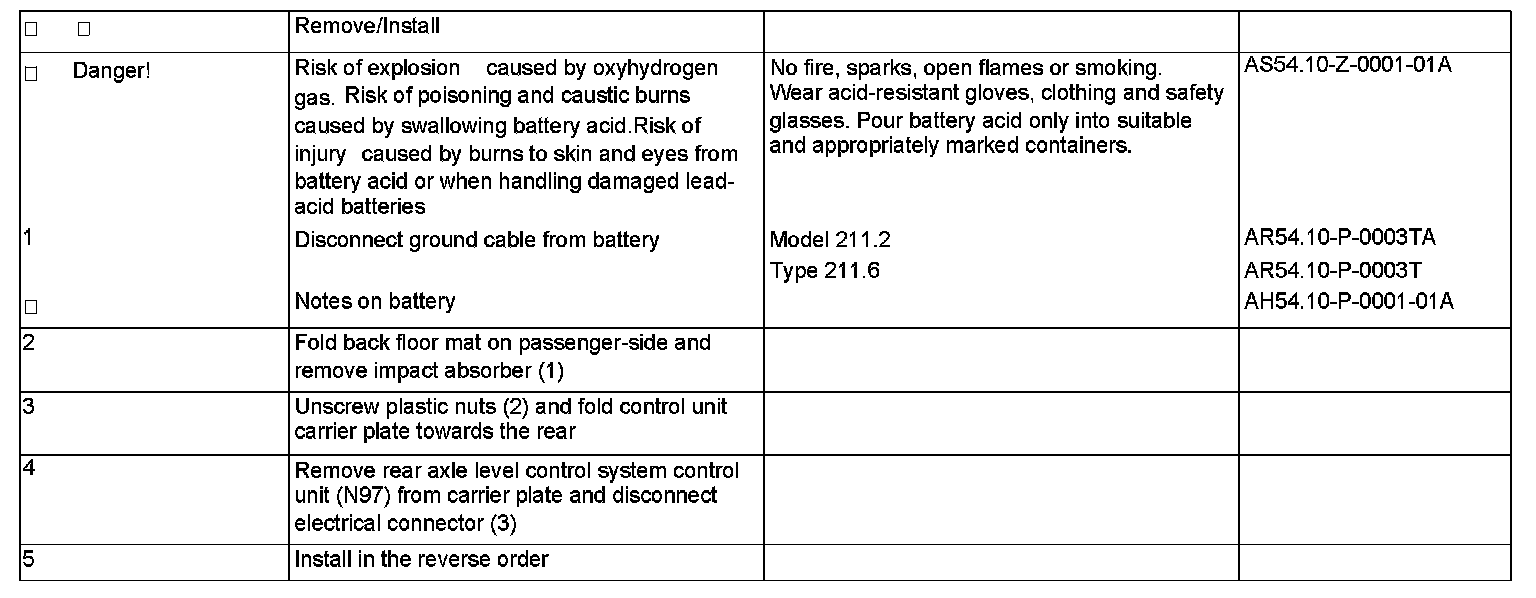

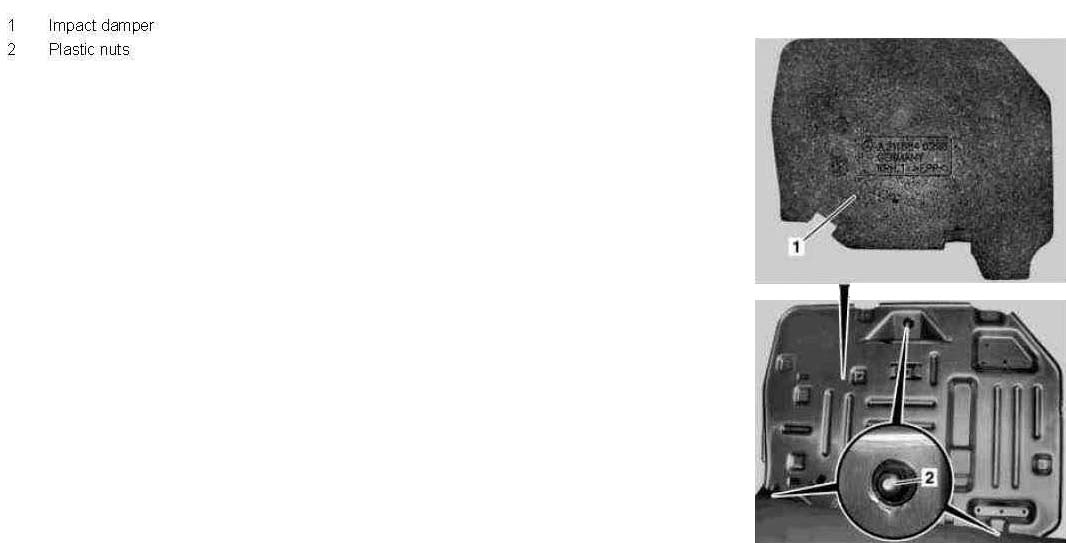

Steps 1-5:

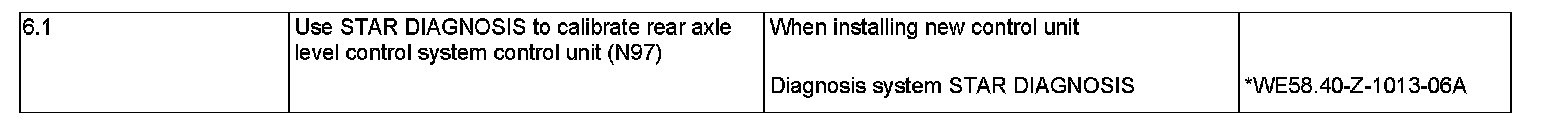

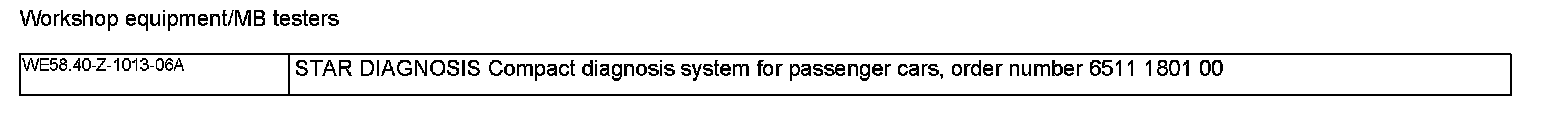

Step 6:
