Variable Induction Control Valve: Service and Repair
AR09.20-P-1990TS Remove/Install Tumble Flap and Resonance Flap Switchover Valve At the Intake Manifold

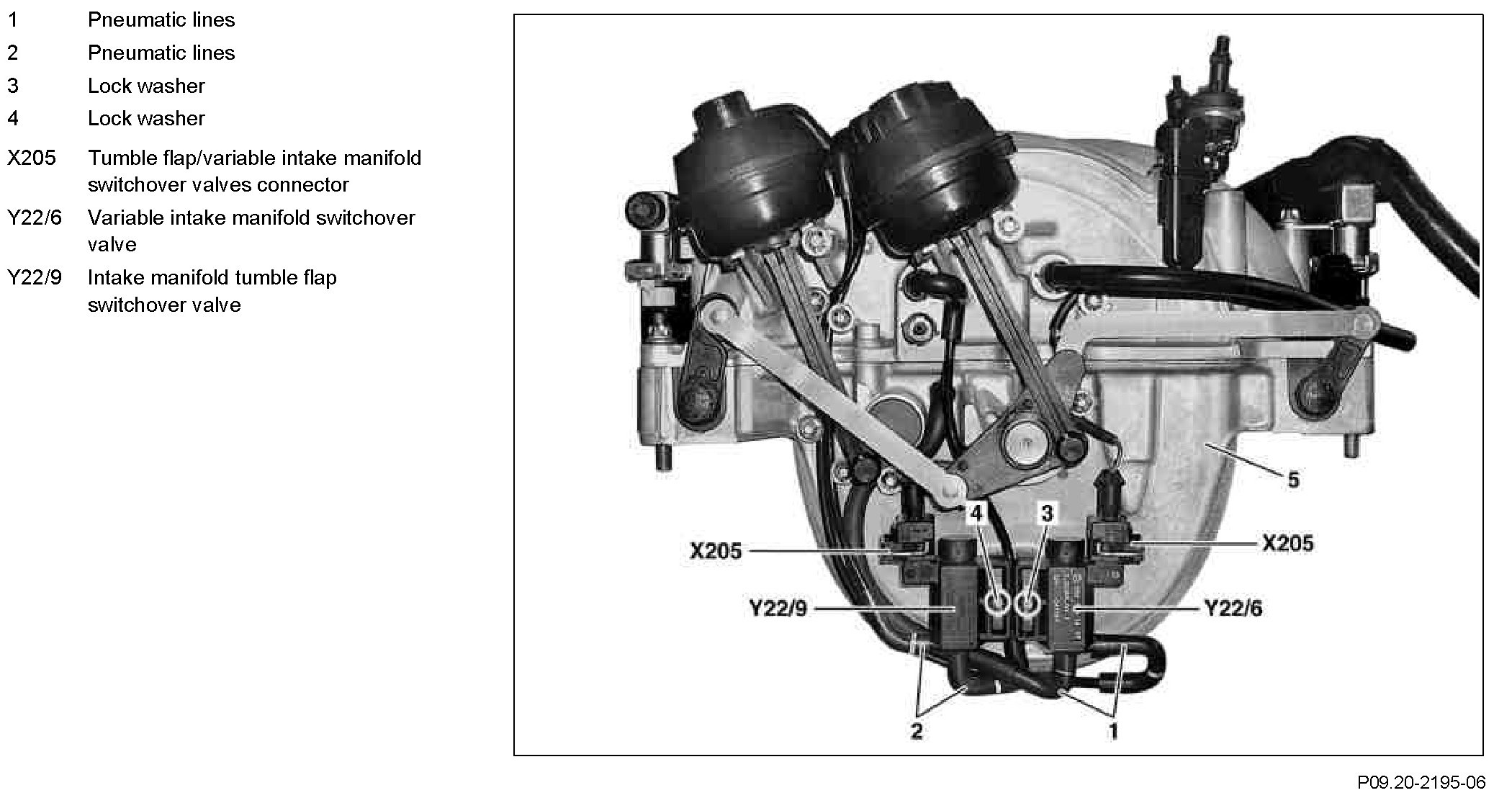

Component Identification:

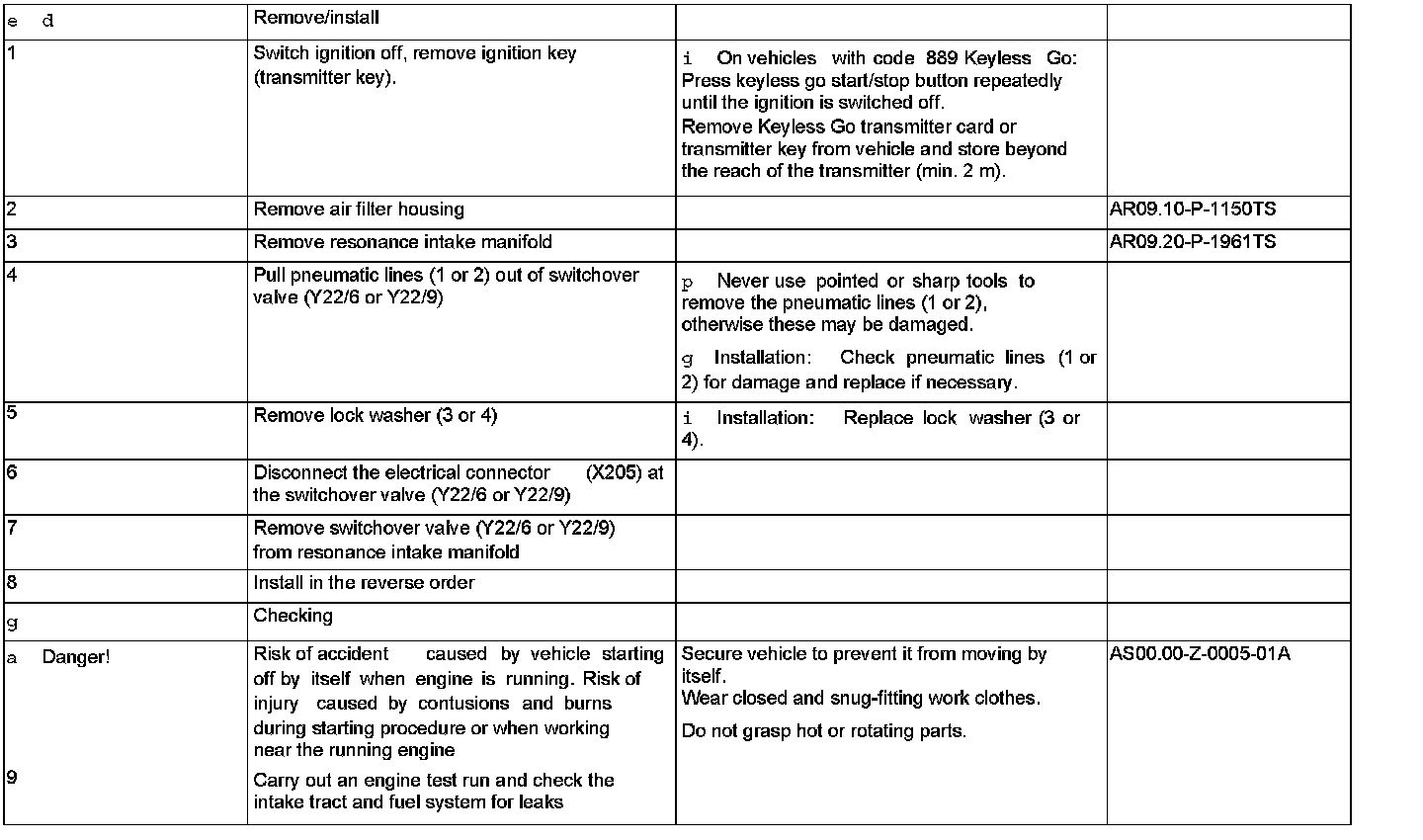

Steps 1 - 9:
AR09.20-P-1990TS Remove/Install Tumble Flap and Resonance Flap Switchover Valve At the Intake Manifold
