AR07.03-P-1451TS Remove/Install Fuel Distributor With Injection Valves (ME-SFI)

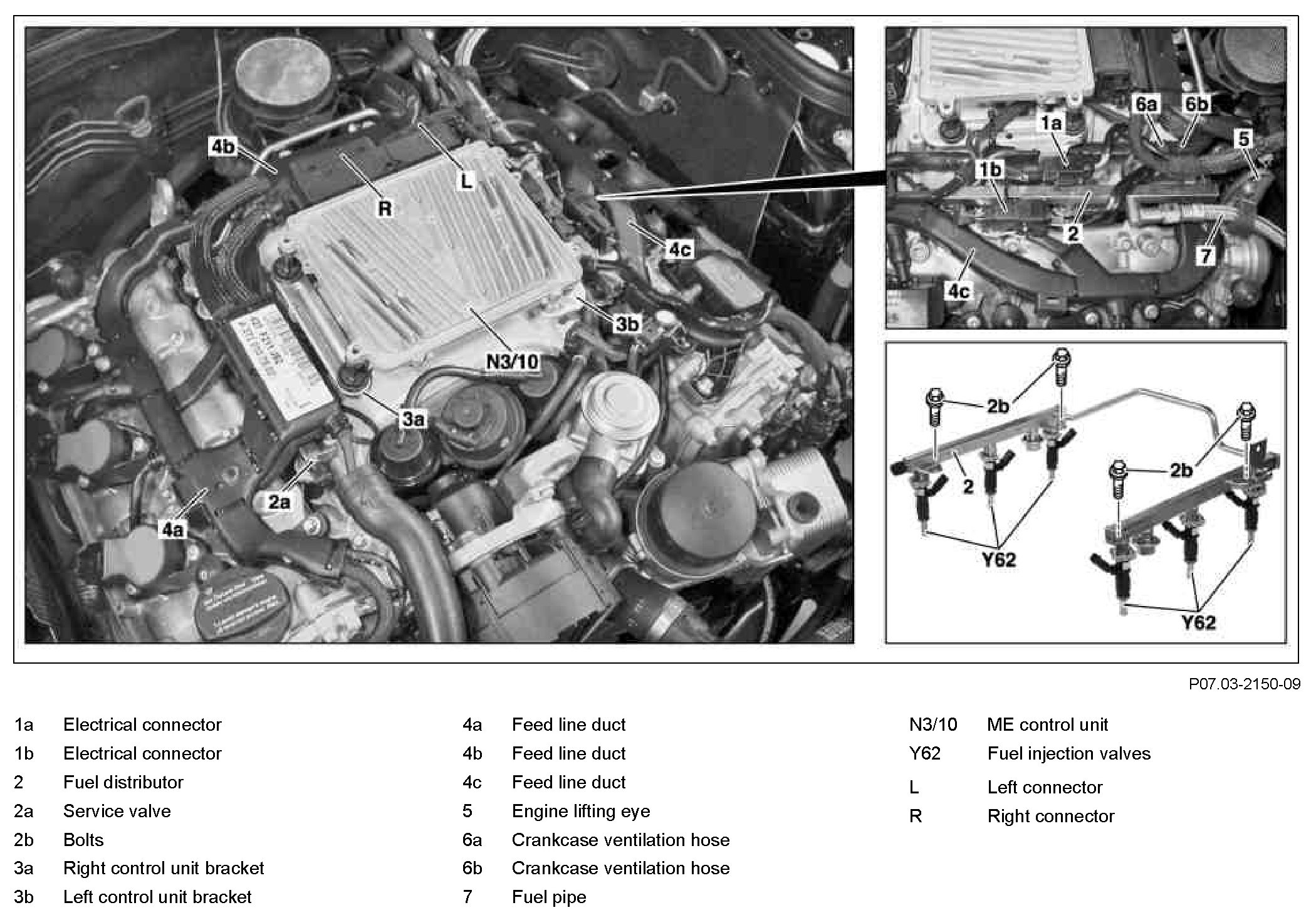

Component Identification:

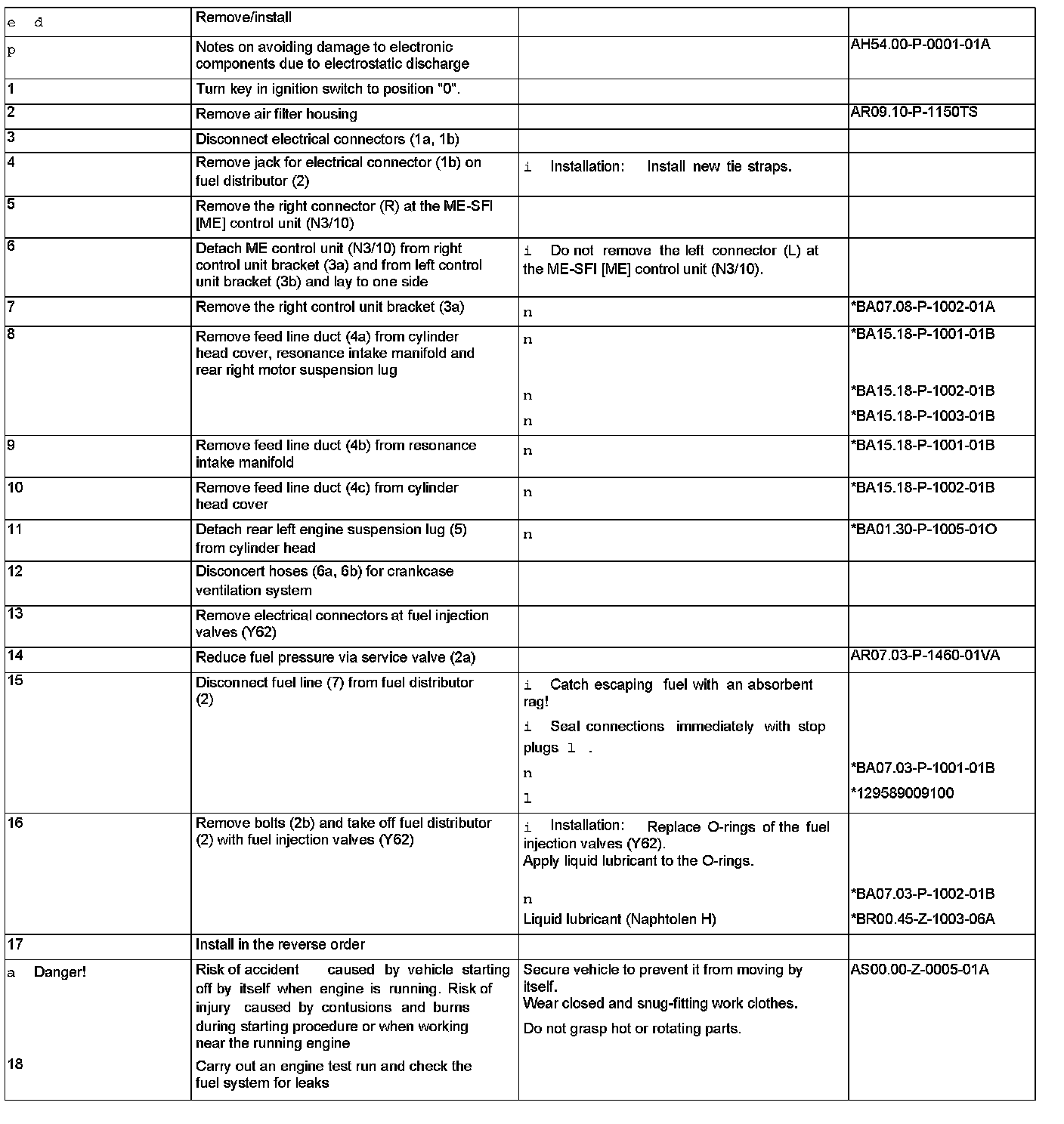

Steps 1 - 18:

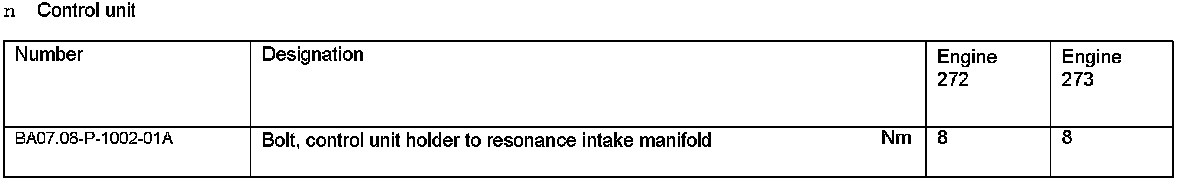

Control Unit:

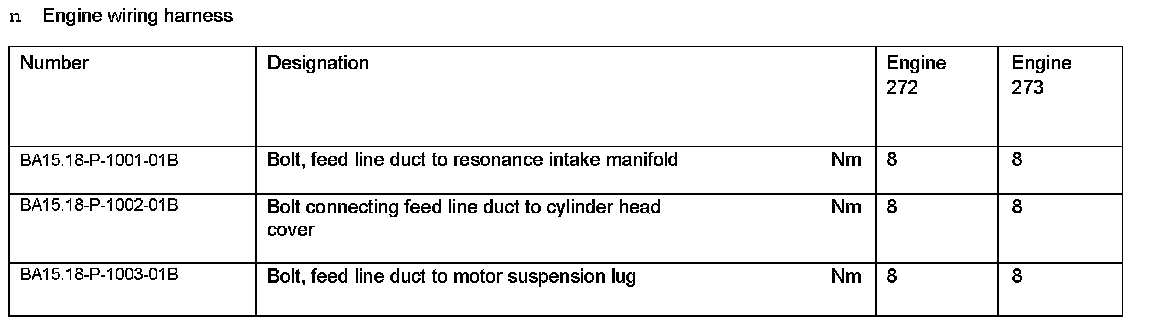

Engine Wiring Harness:

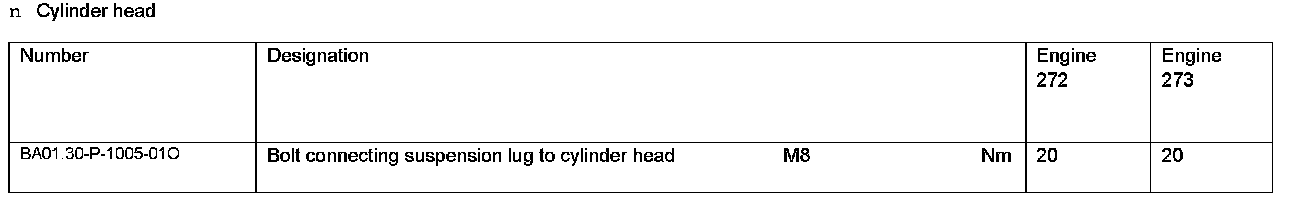

Cylinder Head:

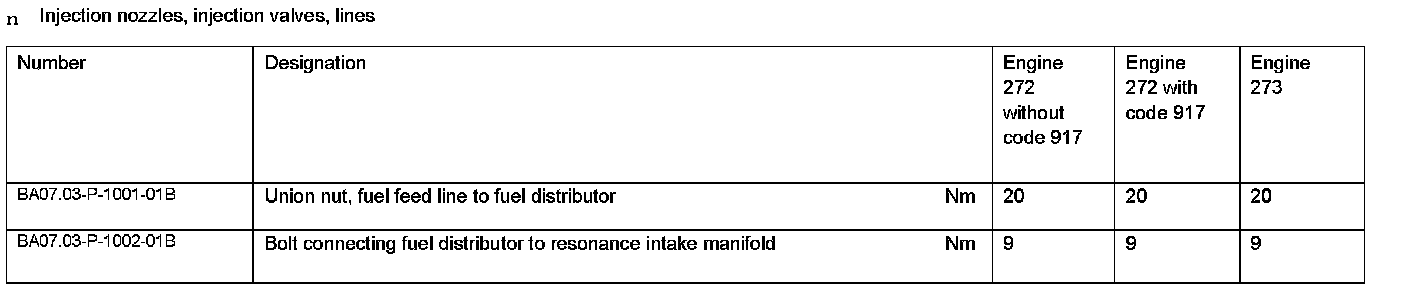

Injection Nozzles, Injection Valves, Lines:

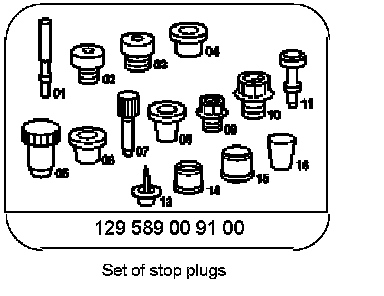

Special Tools:

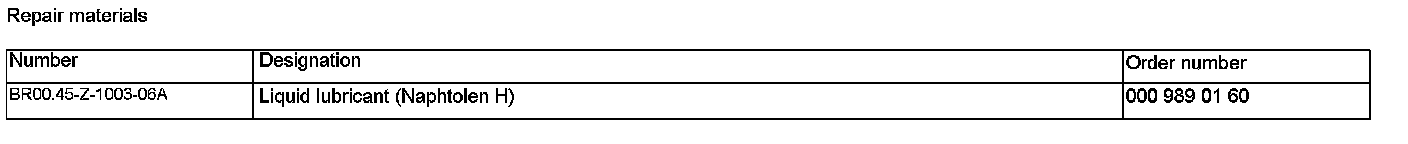

Repair Materials:
