Electronic Throttle Actuator: Service and Repair
AR07.51-P-1401TS Remove/Install Throttle Valve Actuator

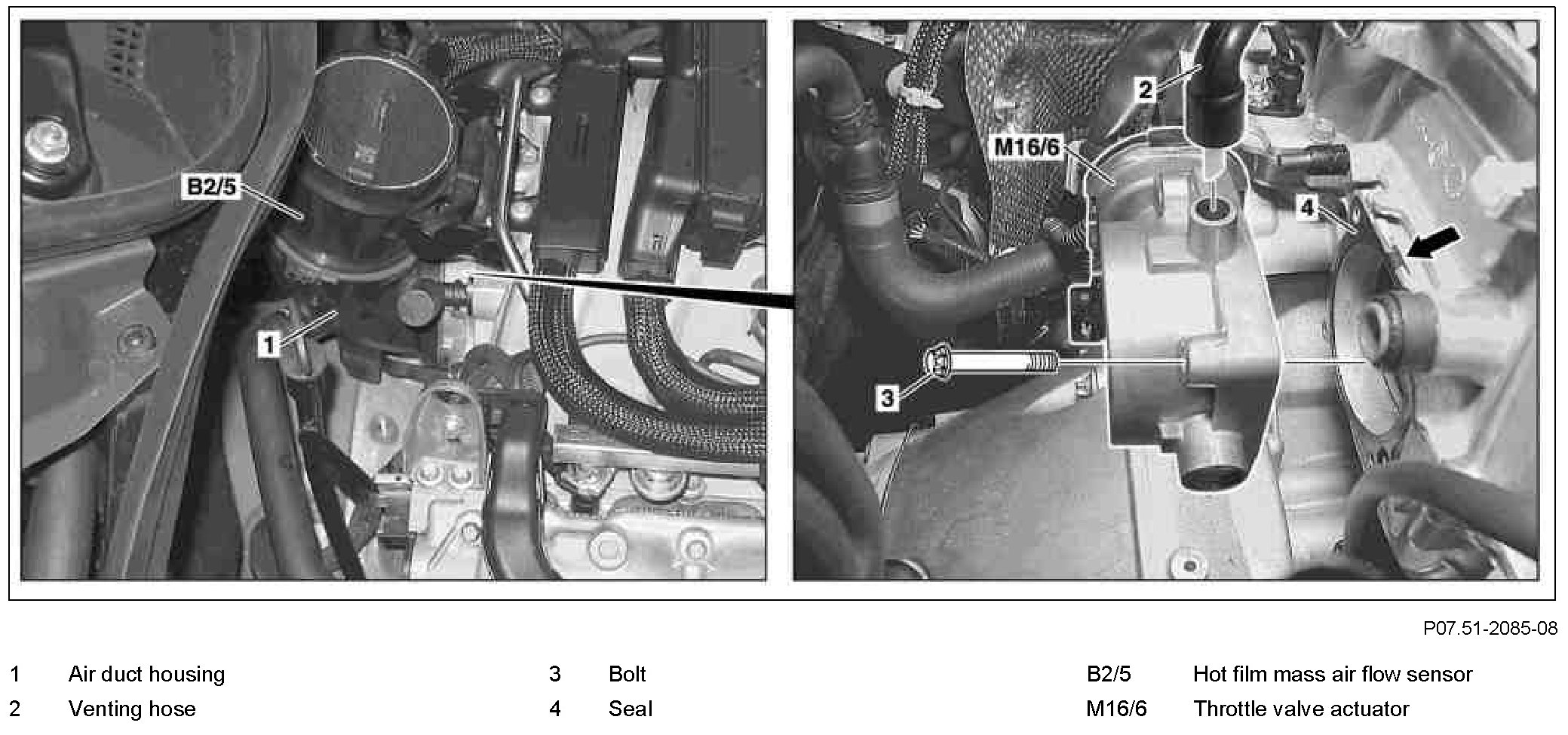

Component Identification:

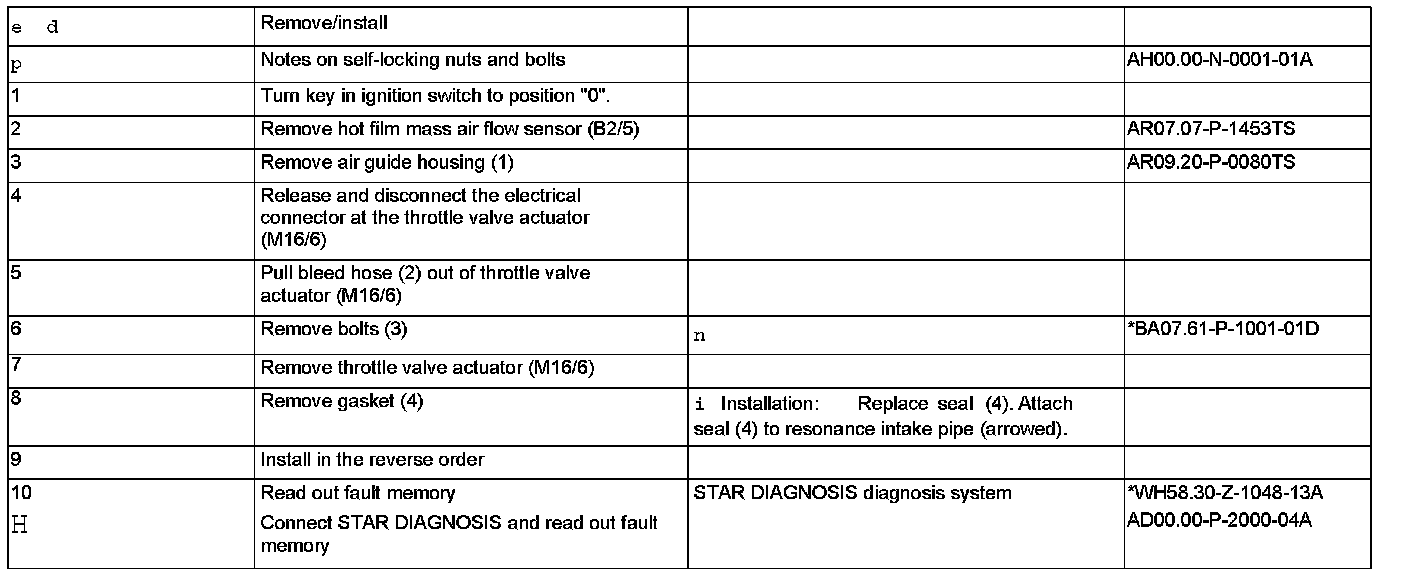

Steps 1 - 10:
ME Gasoline Injection And Ignition System:

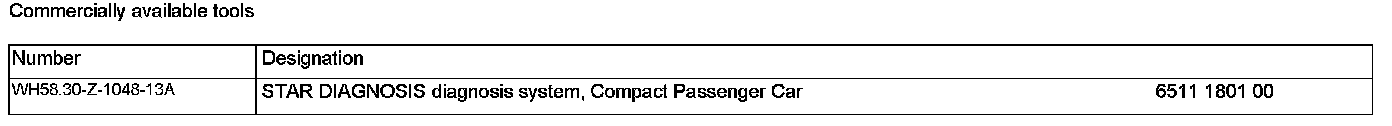

Commercially Available Tools:
AR07.51-P-1401TS Remove/Install Throttle Valve Actuator
