AR01.30-P-5700TS Remove/Install Front Cover on Cylinder Head



AR01.30-P-5700TS Remove/install front cover on cylinder head
- Front cover on left cylinder head

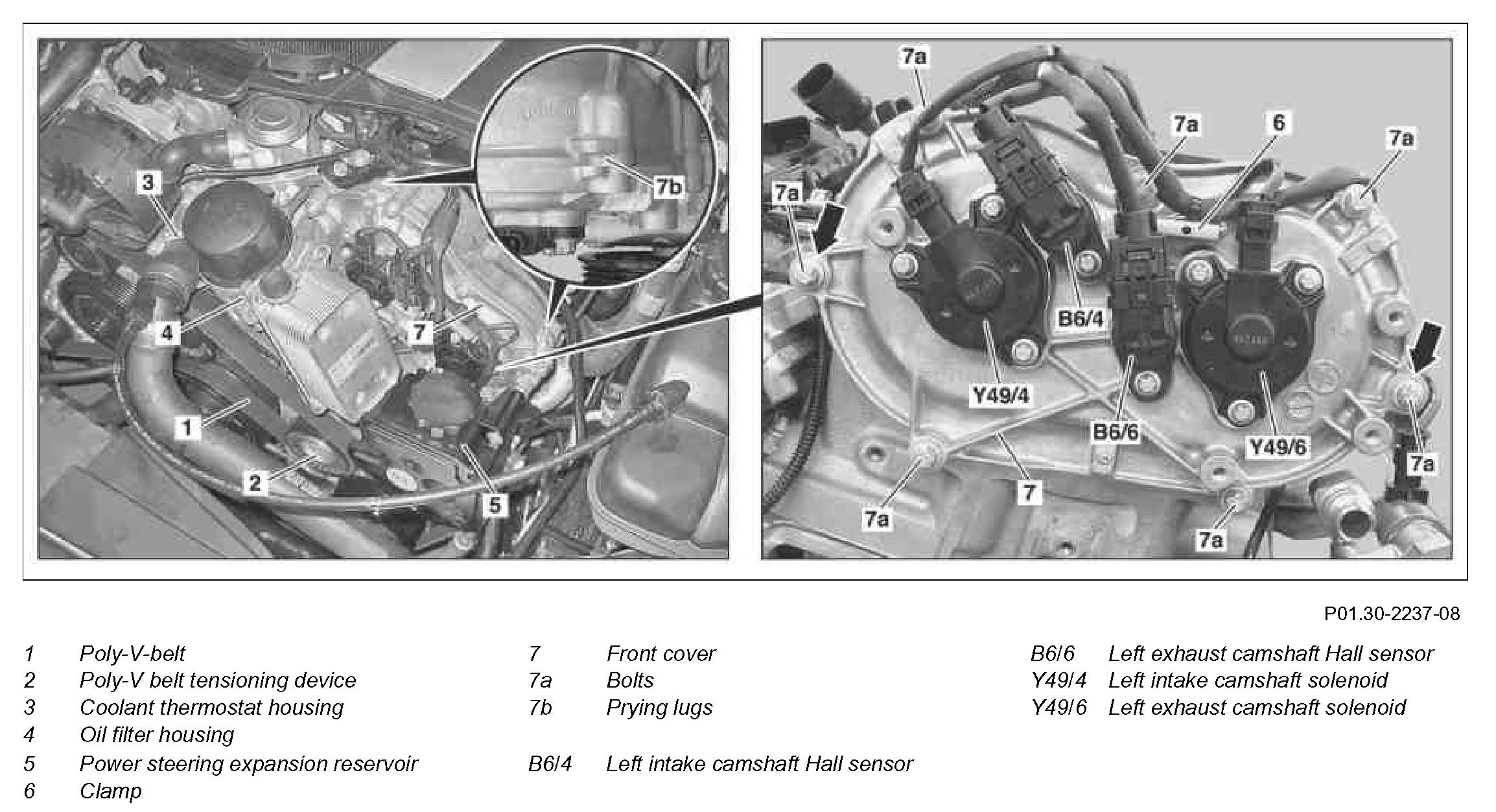

Component Identification:

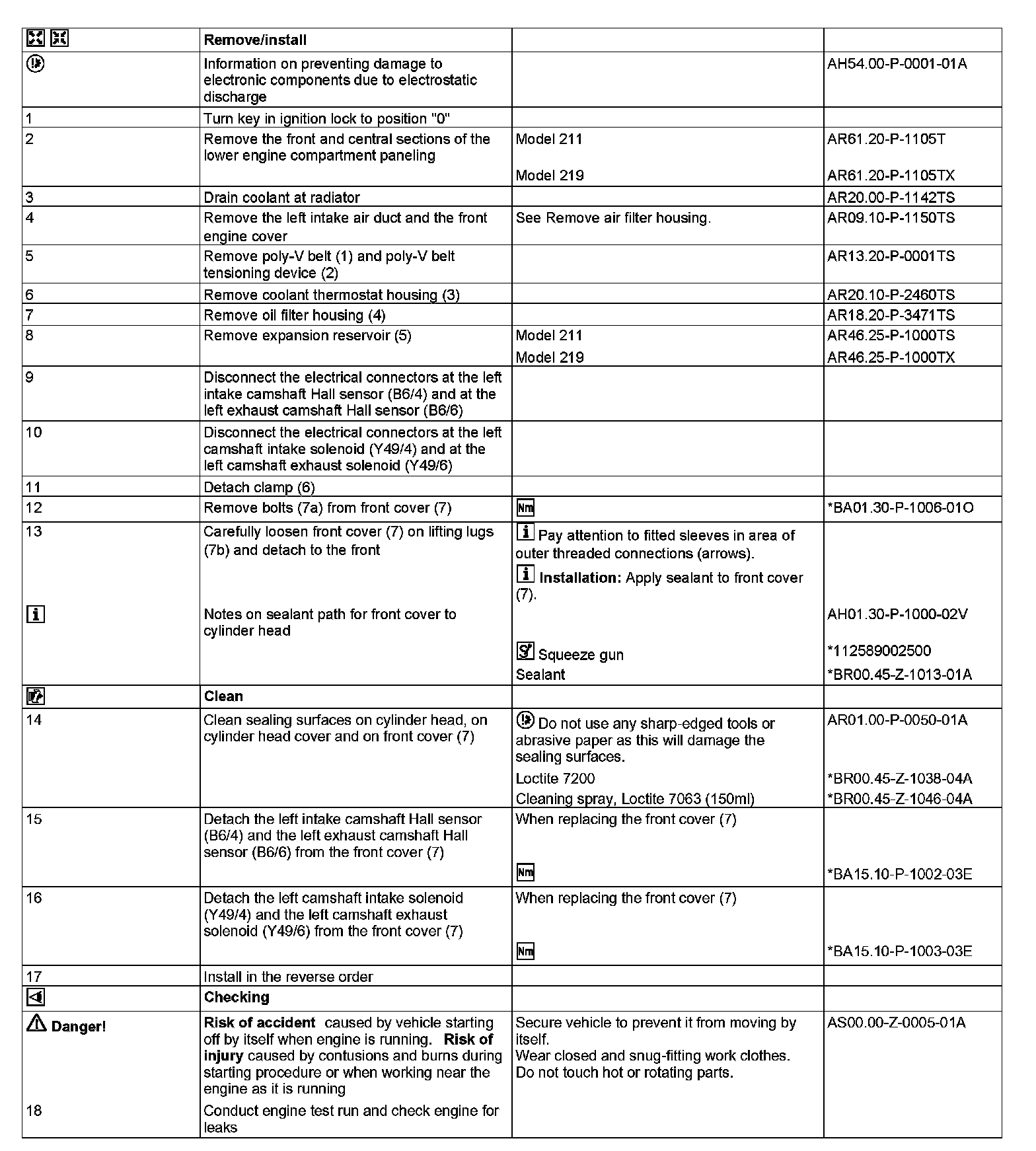

Steps 1-18:

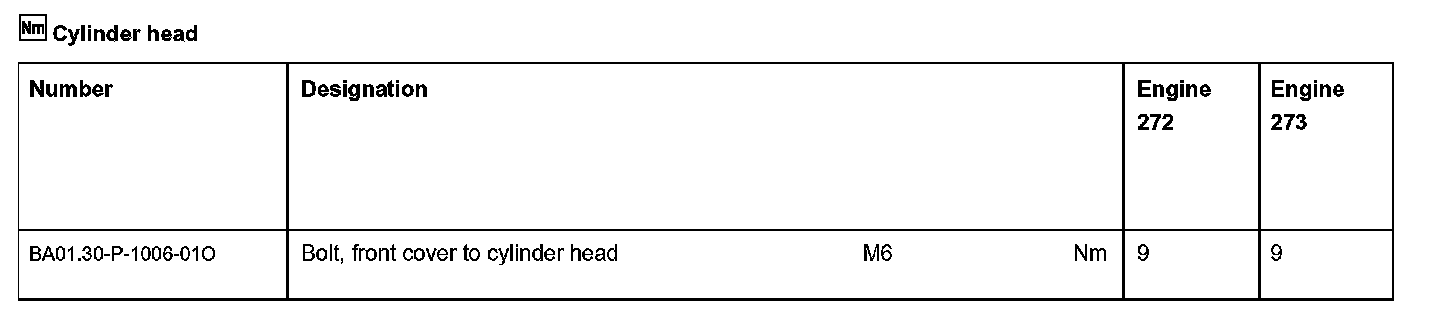

Cylinder head:

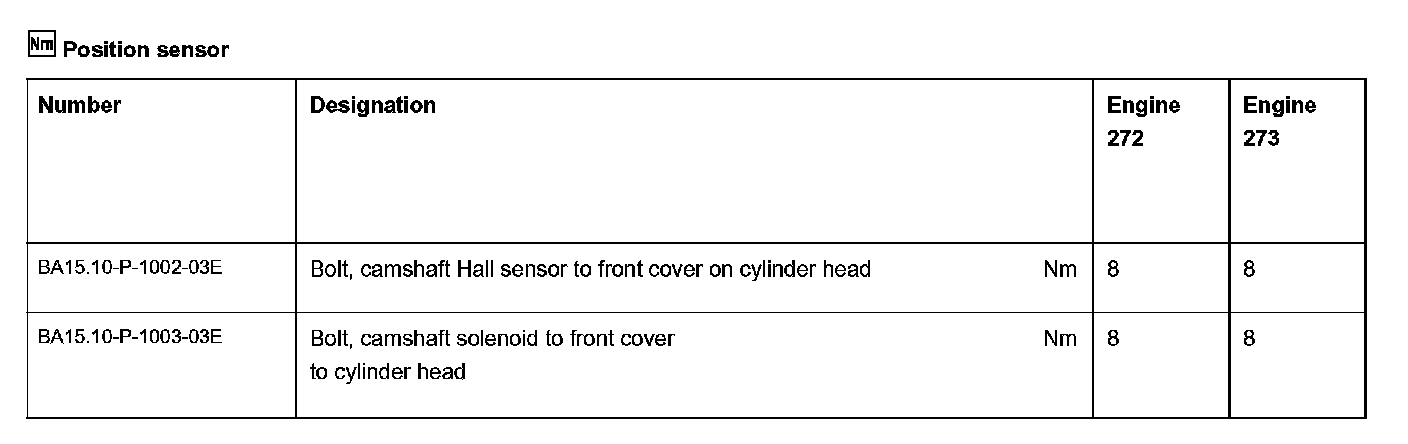

Position sensor:

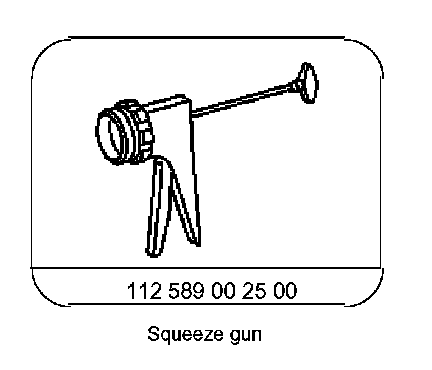

Special Tools:

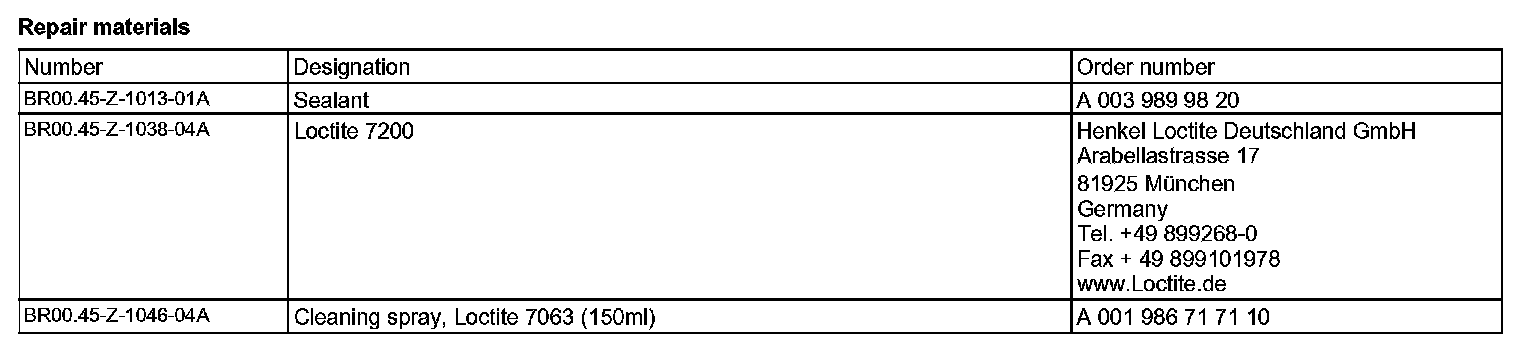

Repair materials:
