AR05.10-P-8484TS Remove/Install Slide Rail In Timing Case Cover



AR05.10-P-8484TS Remove/install slide rail in timing case cover
- Engine 272.### ## as of 013489

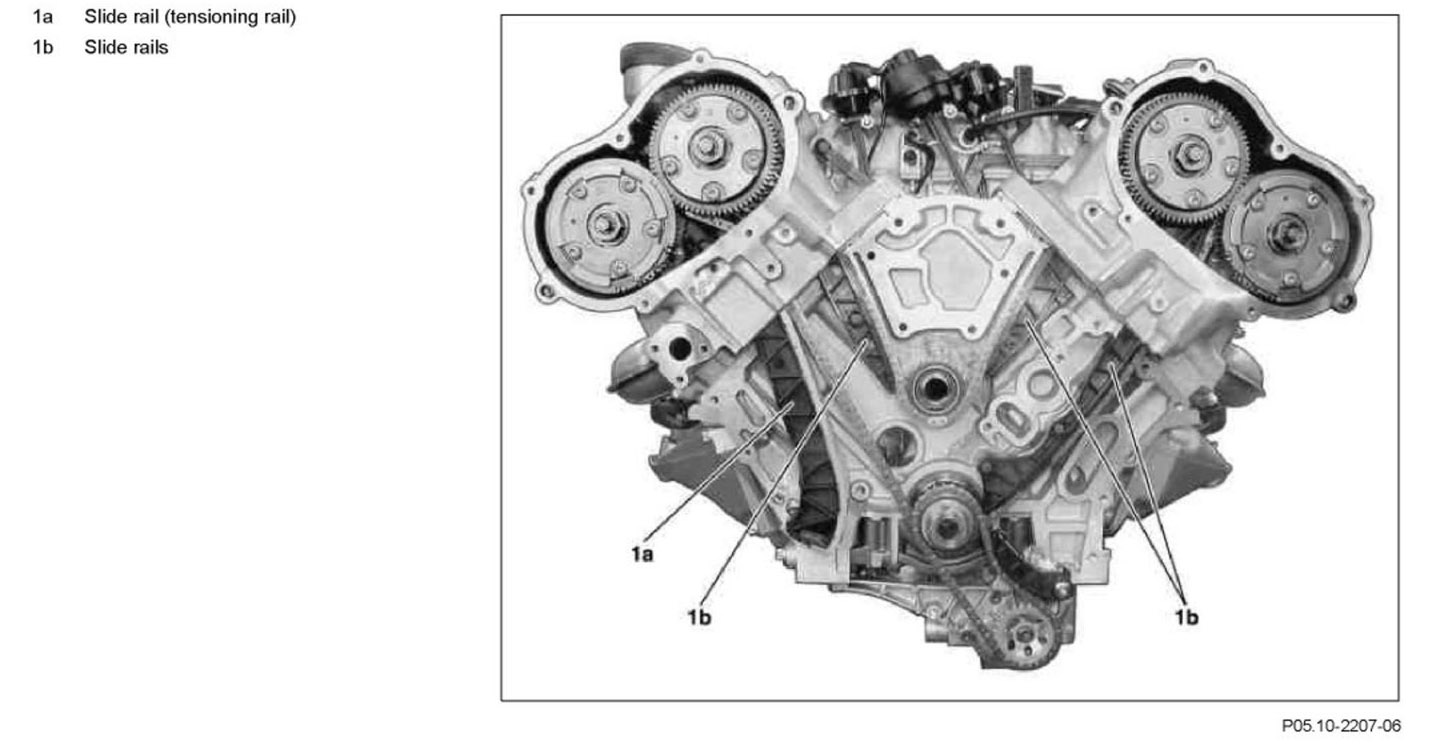

Component Identification:

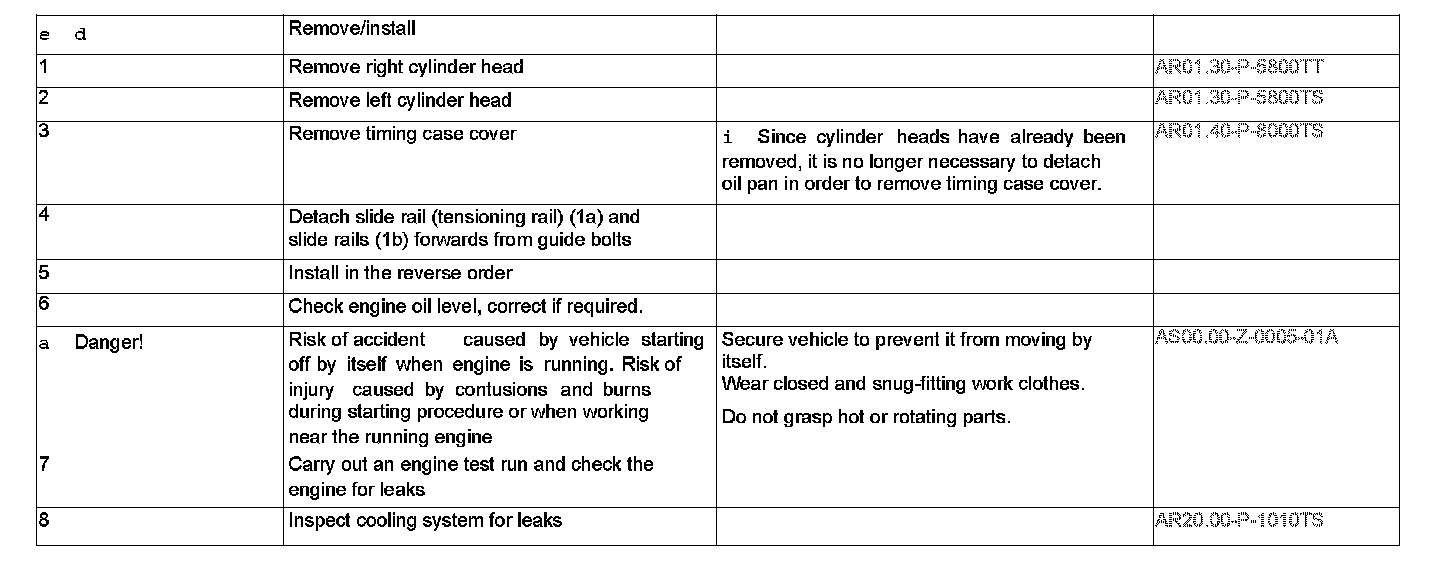

Steps 1 - 8:
