AR01.45-P-7555TS Remove/Install Oil Pan Bottom Section
AR01.45-P-7555TS Remove/Install Bottom Part of Oil Pan
- Vehicles with rear sump
Component Identification:
Steps 1 - 7:
Step 8:

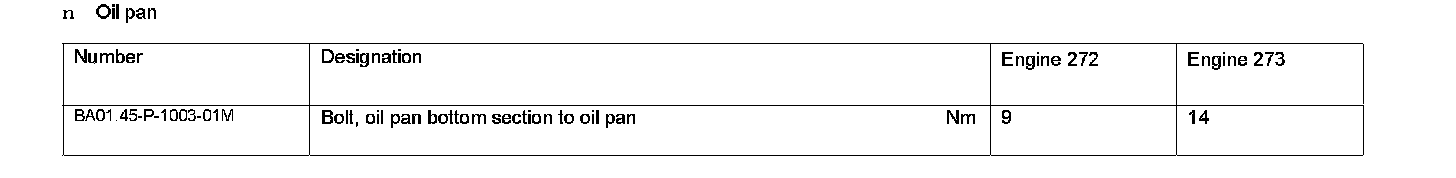

Oil Pan:

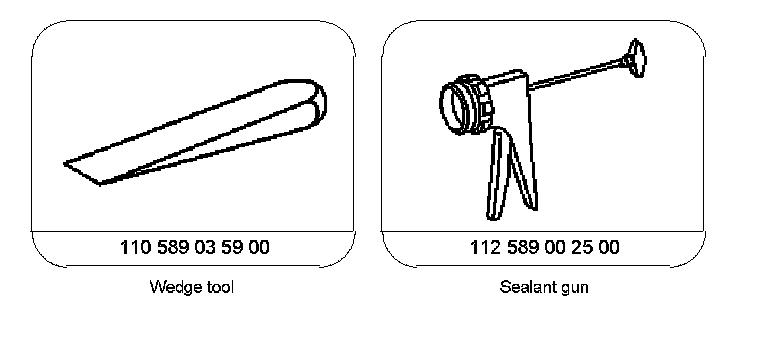

Special Tools:
Commercially available tools:

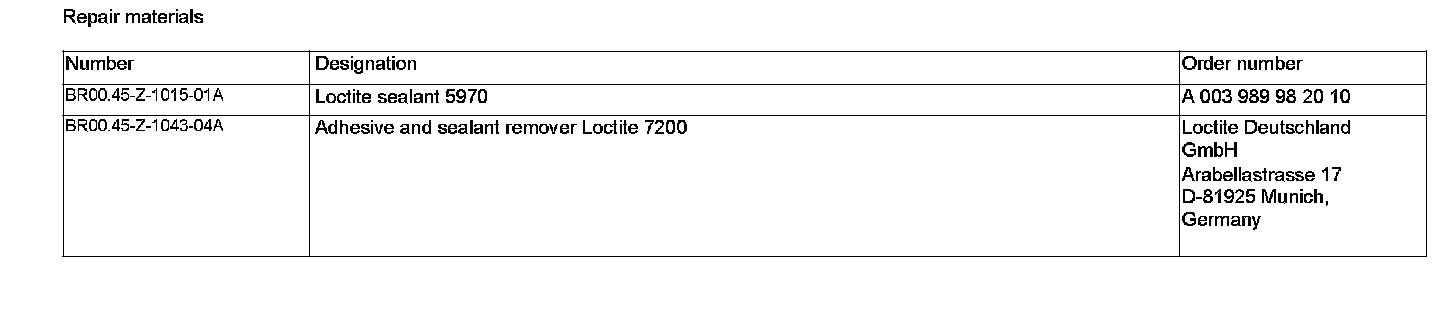

Repair Materials:
