Home >> Mercedes Benz >> 2007 >> E 350 4MATIC Wagon (211.287) V6-3.5L (272.972) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Pan >> Service and Repair >> Removal and Replacement >> AR01.45-P-7555TS Remove/Install Bottom Part of Oil Pan

AR01.45-P-7555TS Remove/Install Bottom Part of Oil Pan



AR01.45-P-7555TS Remove/install bottom part of oil pan
- Vehicles with rear sump


Component Identification:

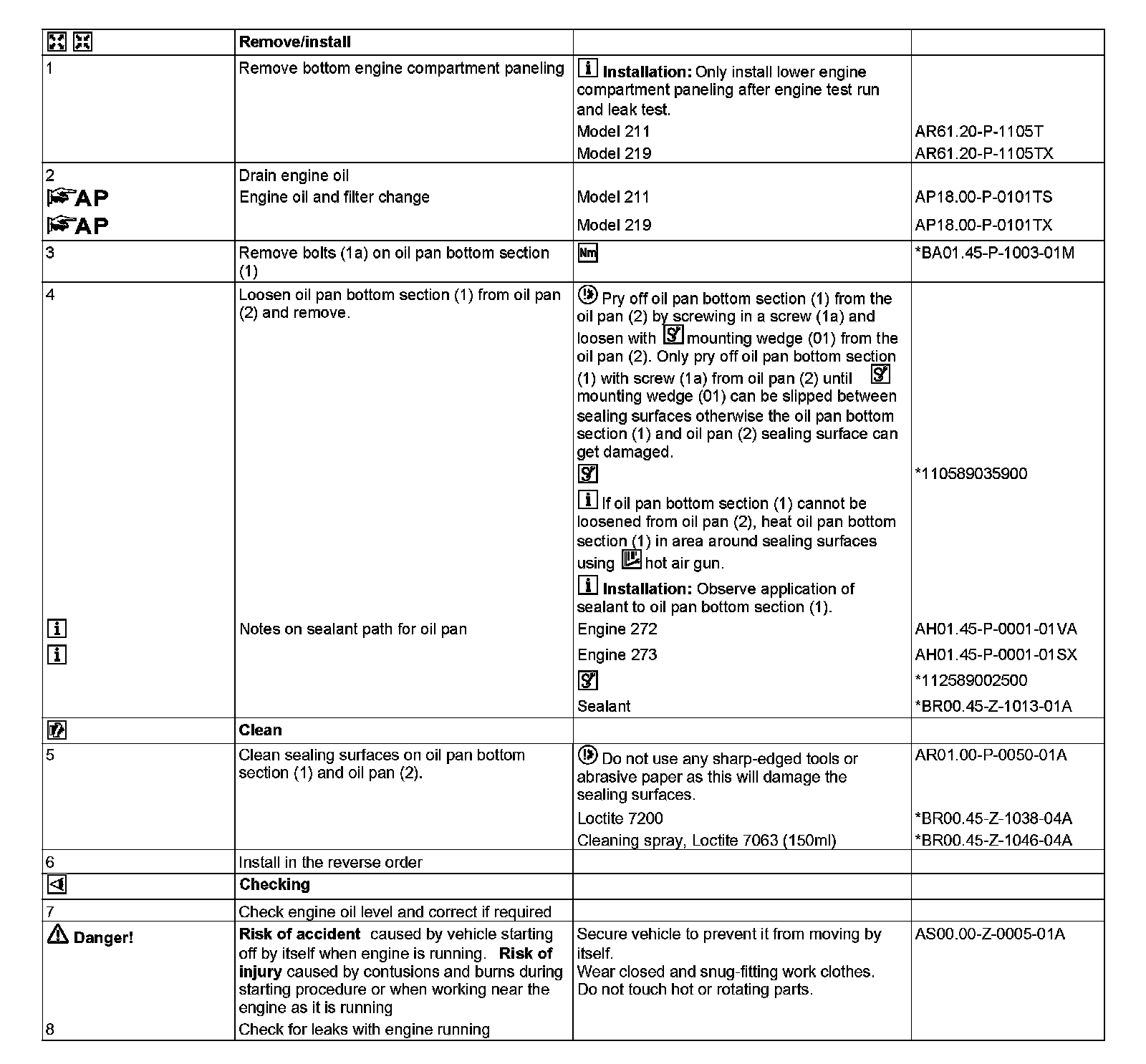

Steps 1-8:




Oil pan:




Special Tools:




Repair materials:
