Function Diagram For Level Control (NR) PE32.33-U-2050DA



Electrical Function Diagram For Level Control (NR) PE32.33-U-2050DA
- with CODE (480) Rear axle level control system

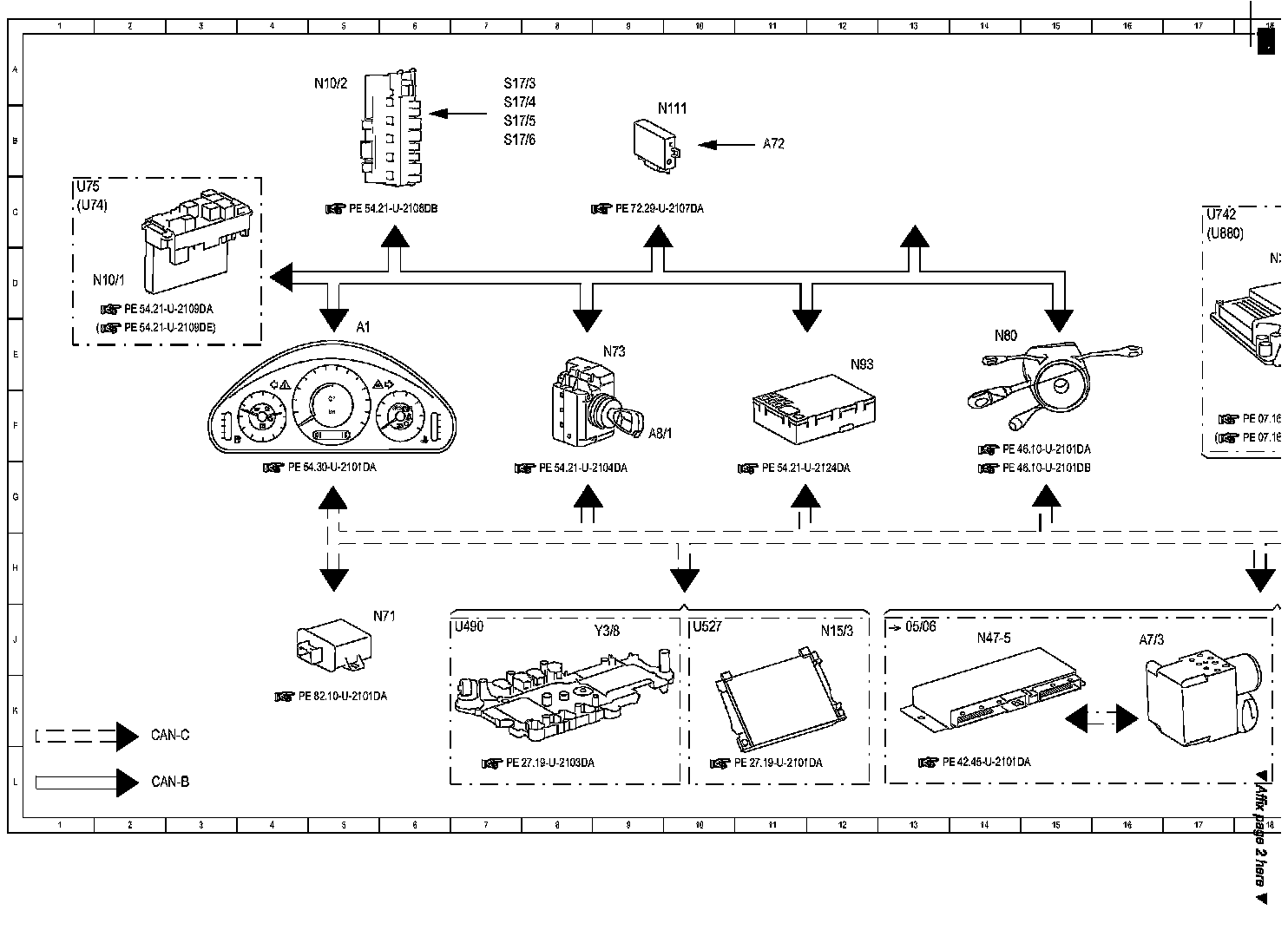

Function Diagram (Part 1):

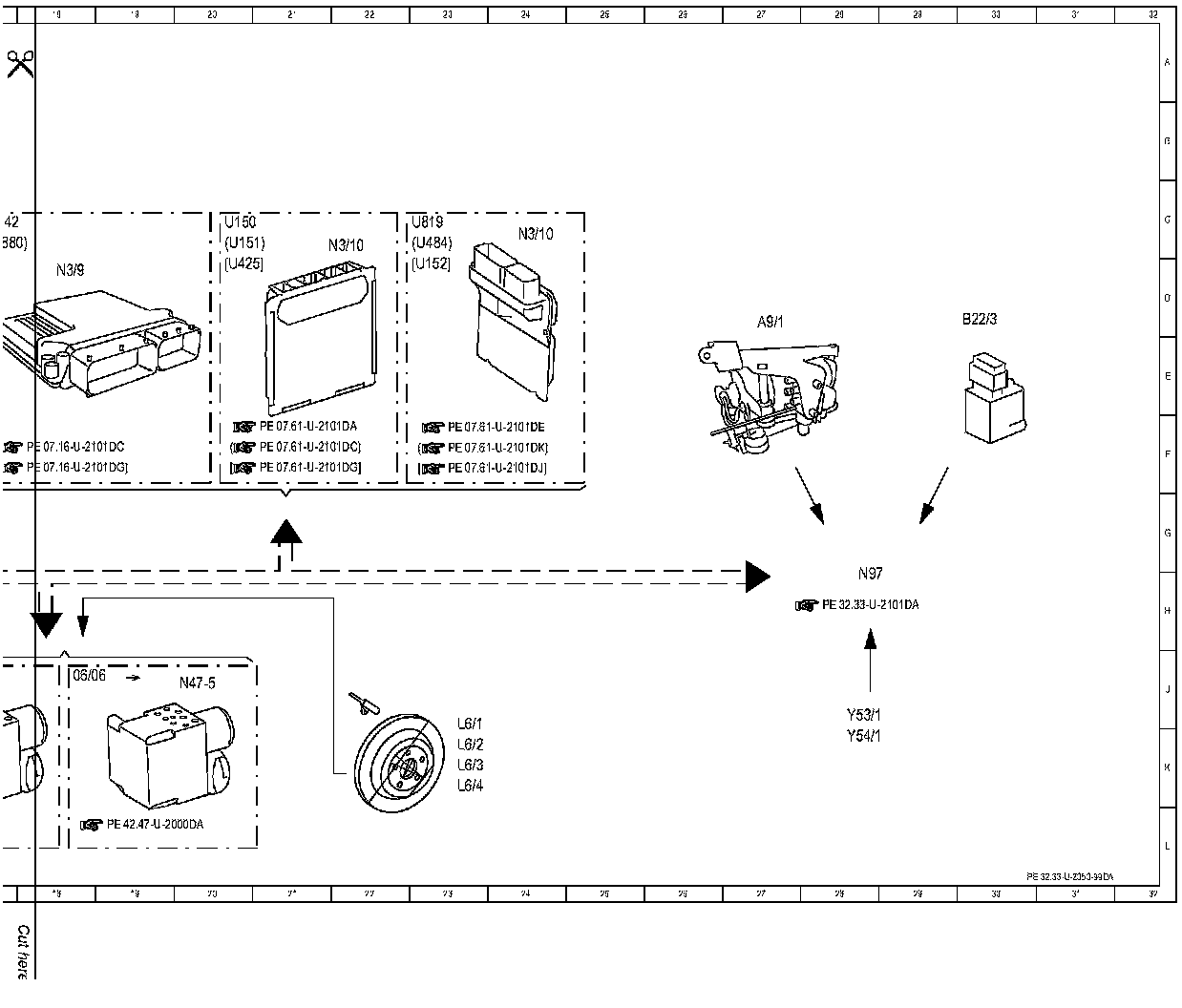

Function Diagram (Part 2):

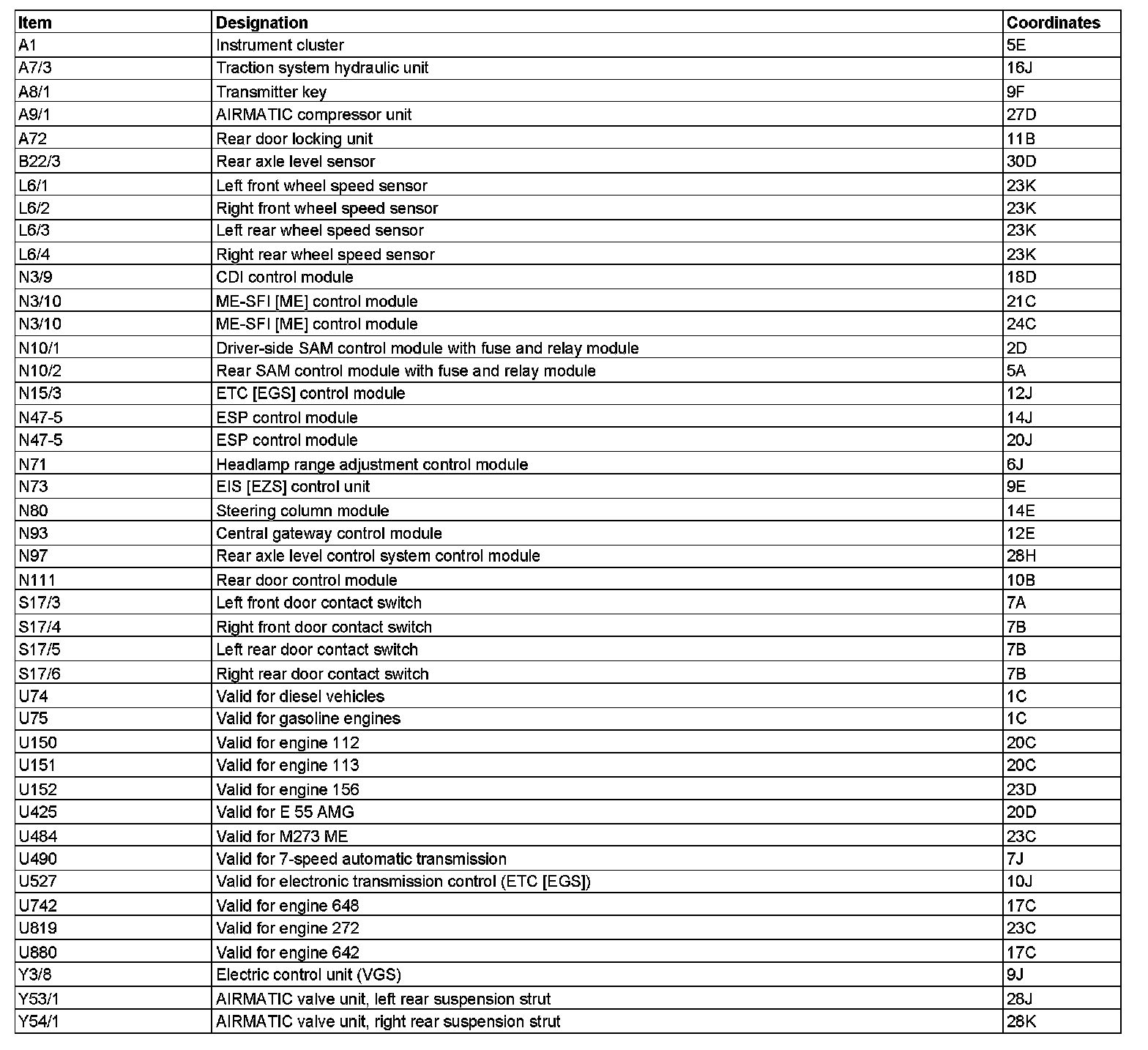

Component Description/Coordinates, A1 To Y54/1:








Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
