Roof and Associated Components: Service and Repair
AR88.85-P-2100TB Remove/Install Water Deflector

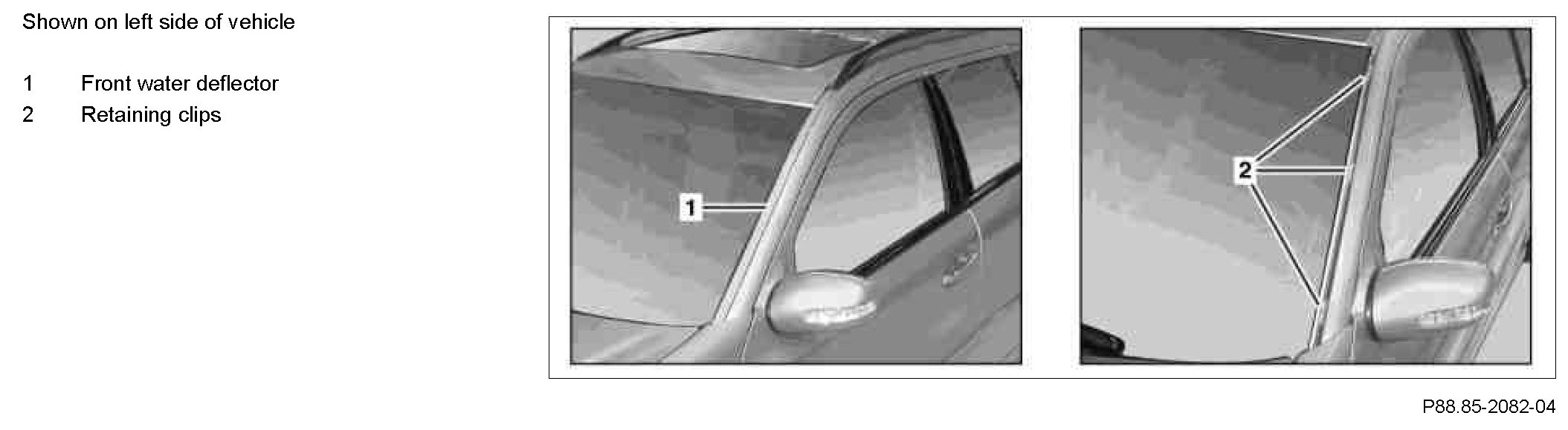

Component Identification:

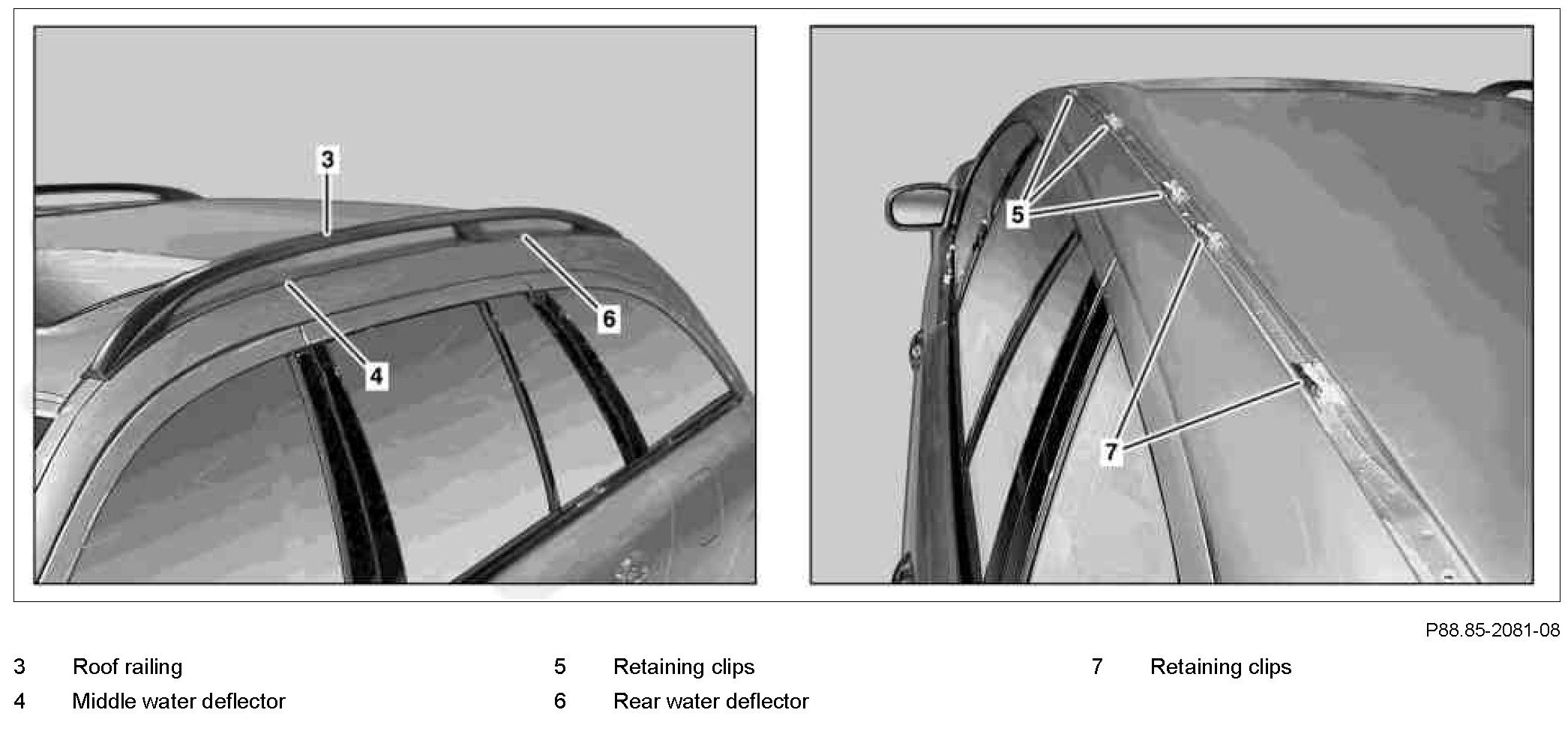

Component Identification:

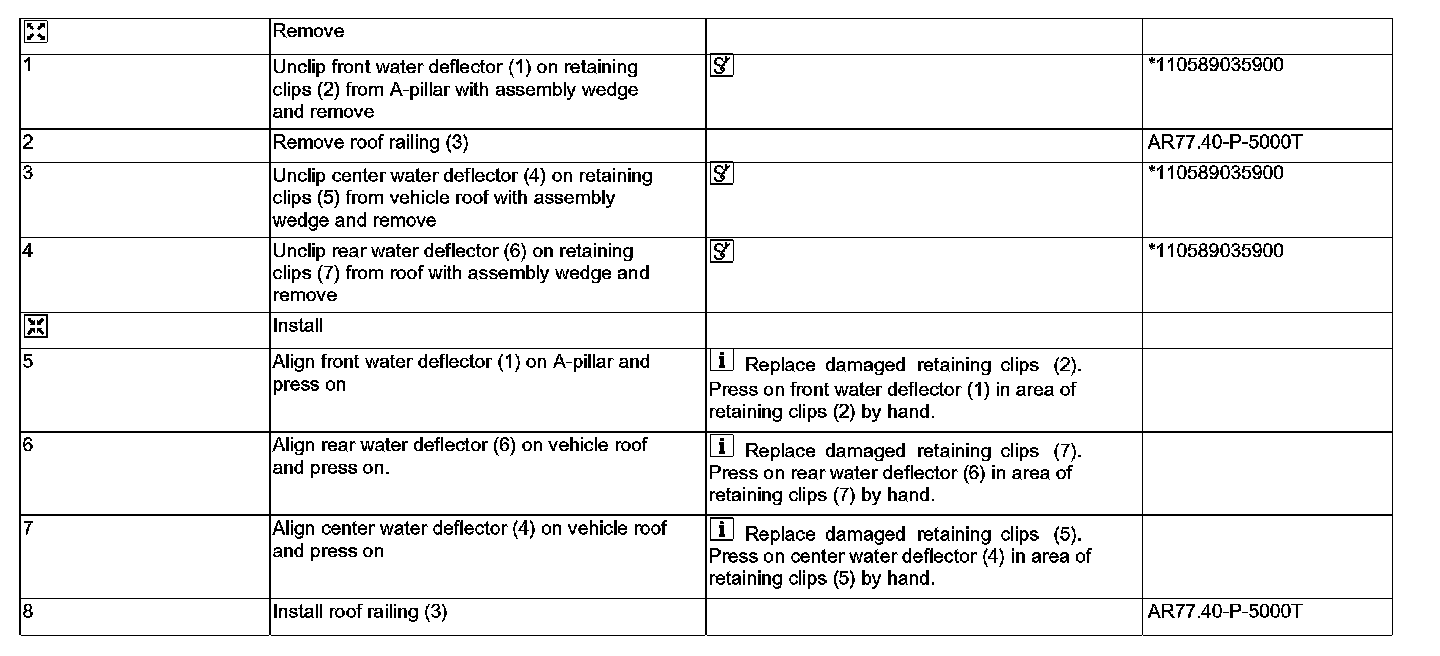

Steps 1 - 8:

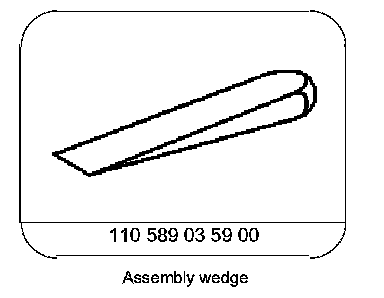

Special Tools:
