Trunk / Liftgate Latch: Service and Repair

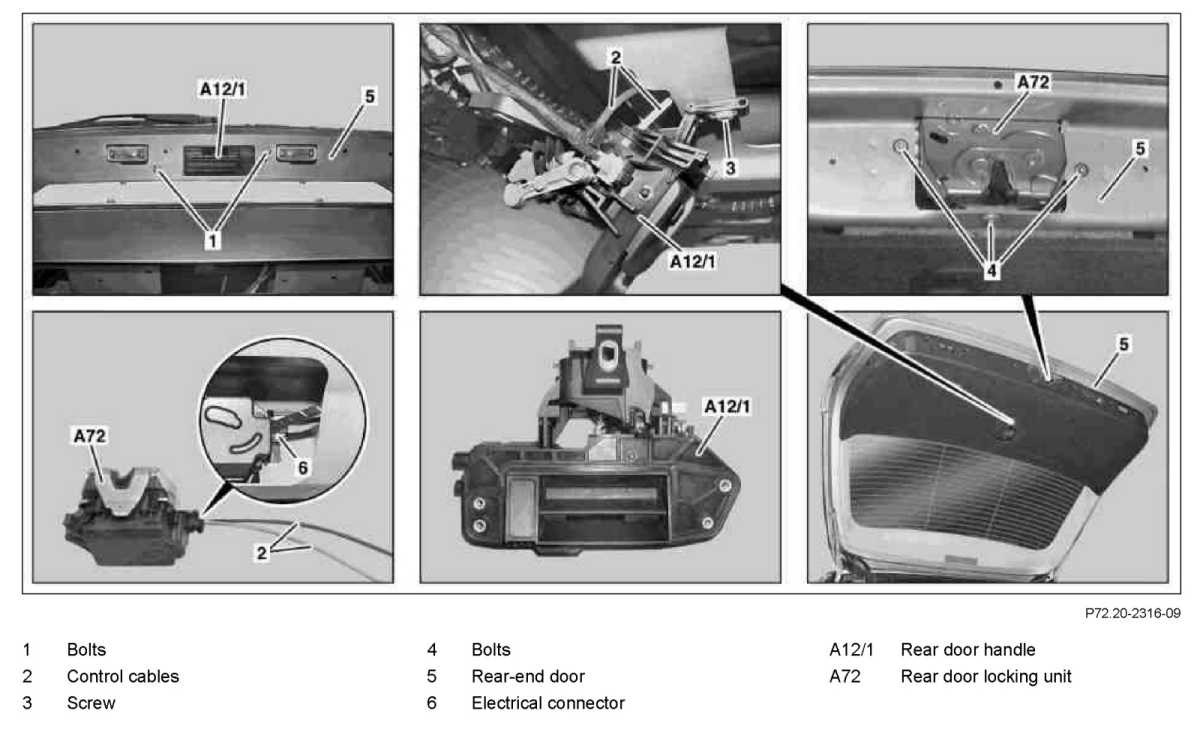

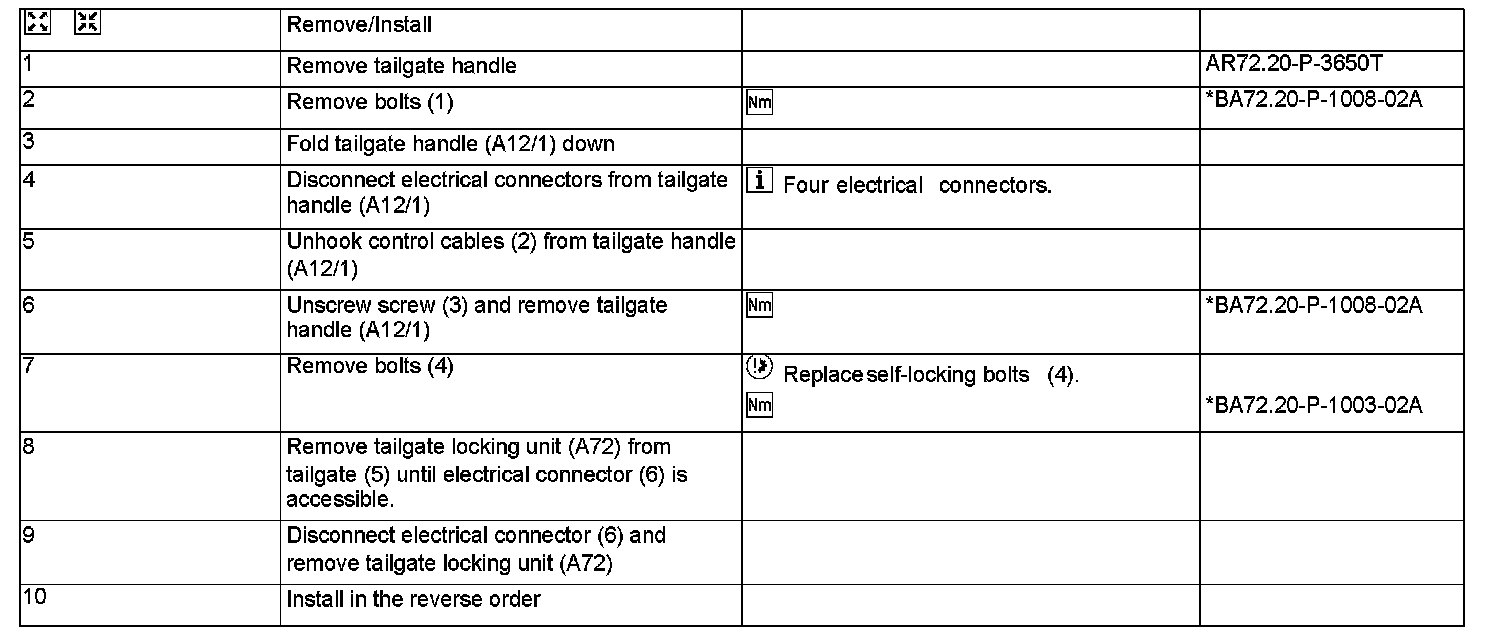

AR72.20-P-2556T Remove/Install Tailgate Locking Unit

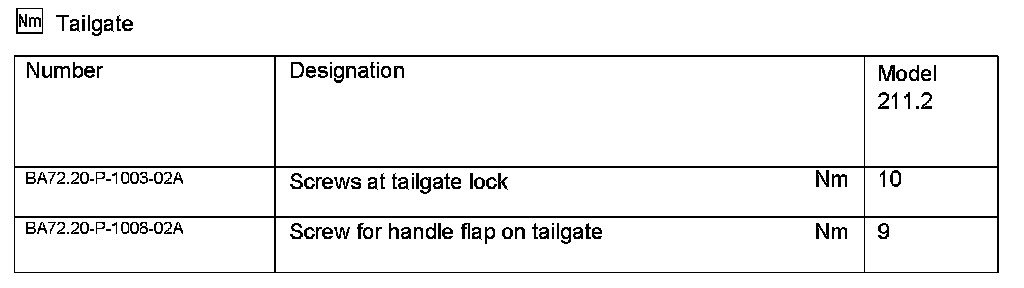

Tailgate:
