Trunk / Liftgate Hinge: Service and Repair
AR72.20-P-2560T Remove/Install Rear-End Door Hinge Assembly

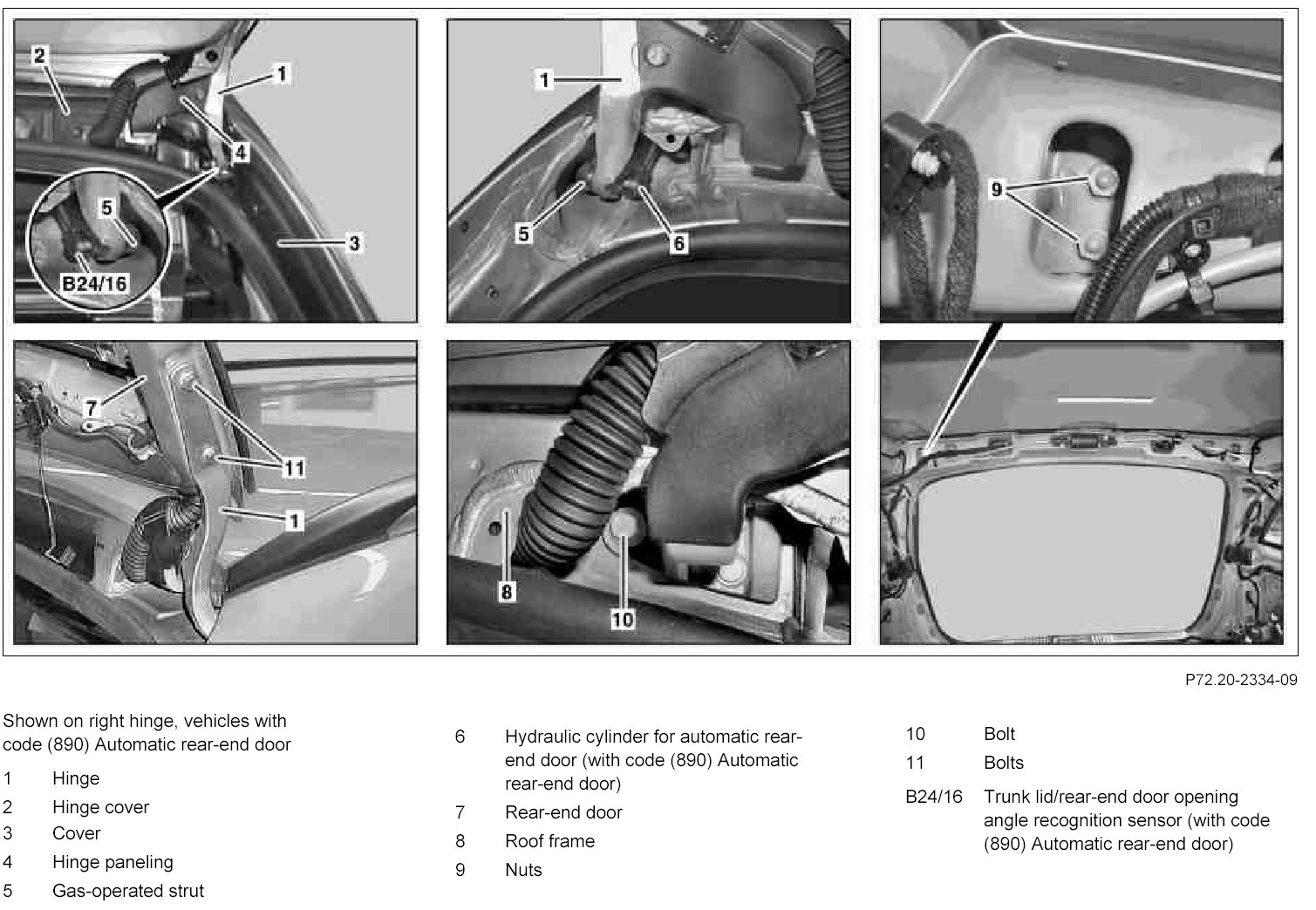

Component Identification:

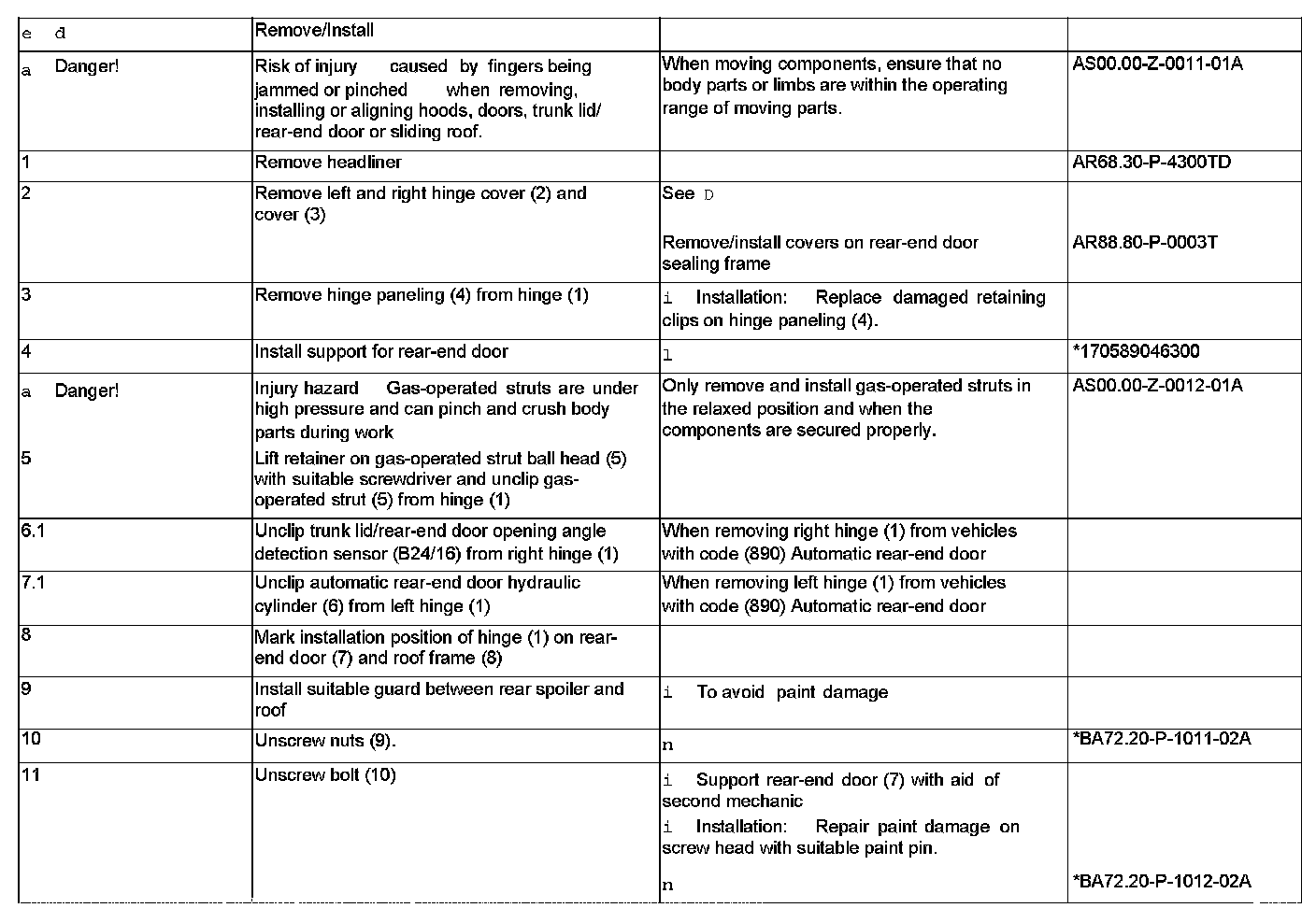

Steps 1 - 11:

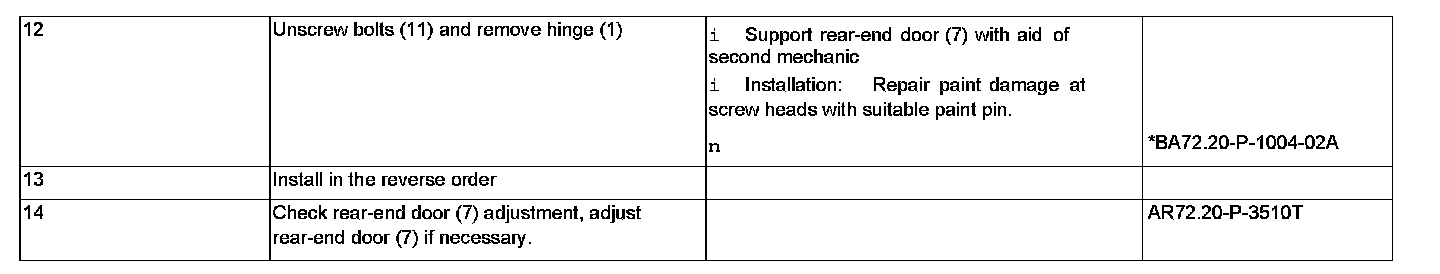

Steps 12 - 14:

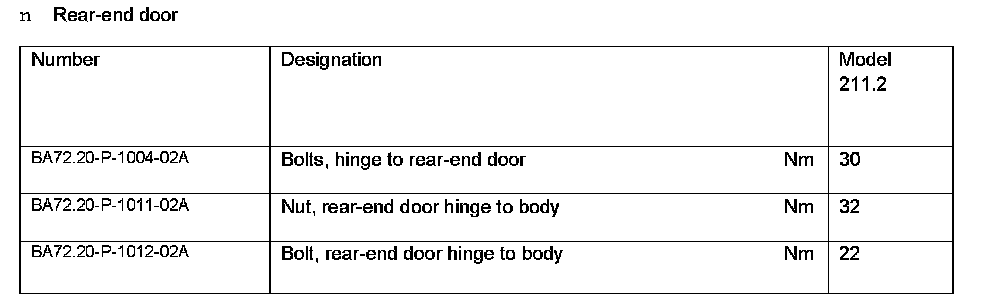

Rear-end Door:

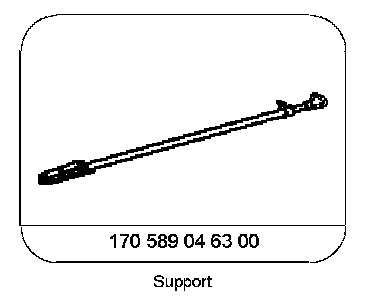

Special Tools:
