AR72.20-P-3500T Remove/Install Rear-End Door
AR72.20-P-3500T Remove/Install Rear-End Door
AR72.20-P-3500T Remove/Install Rear-End Door

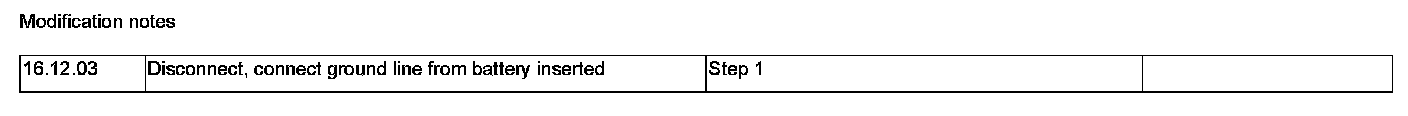

Modification Notes:

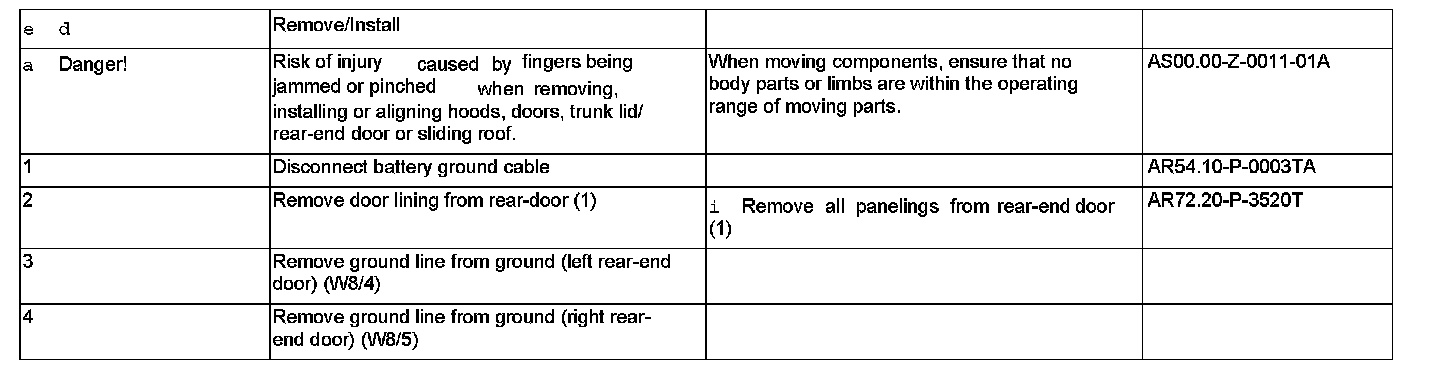

Steps 1 - 4:

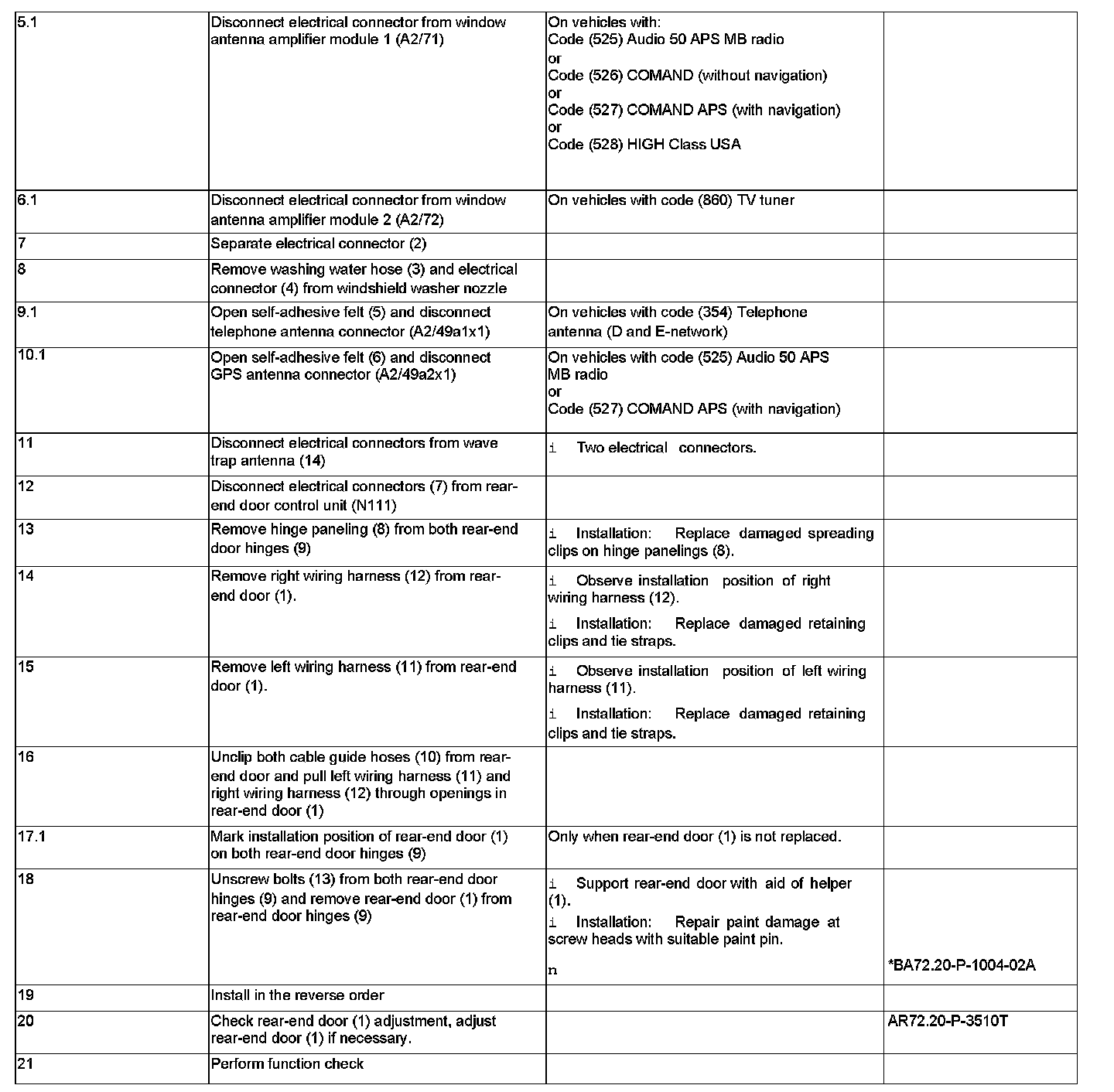

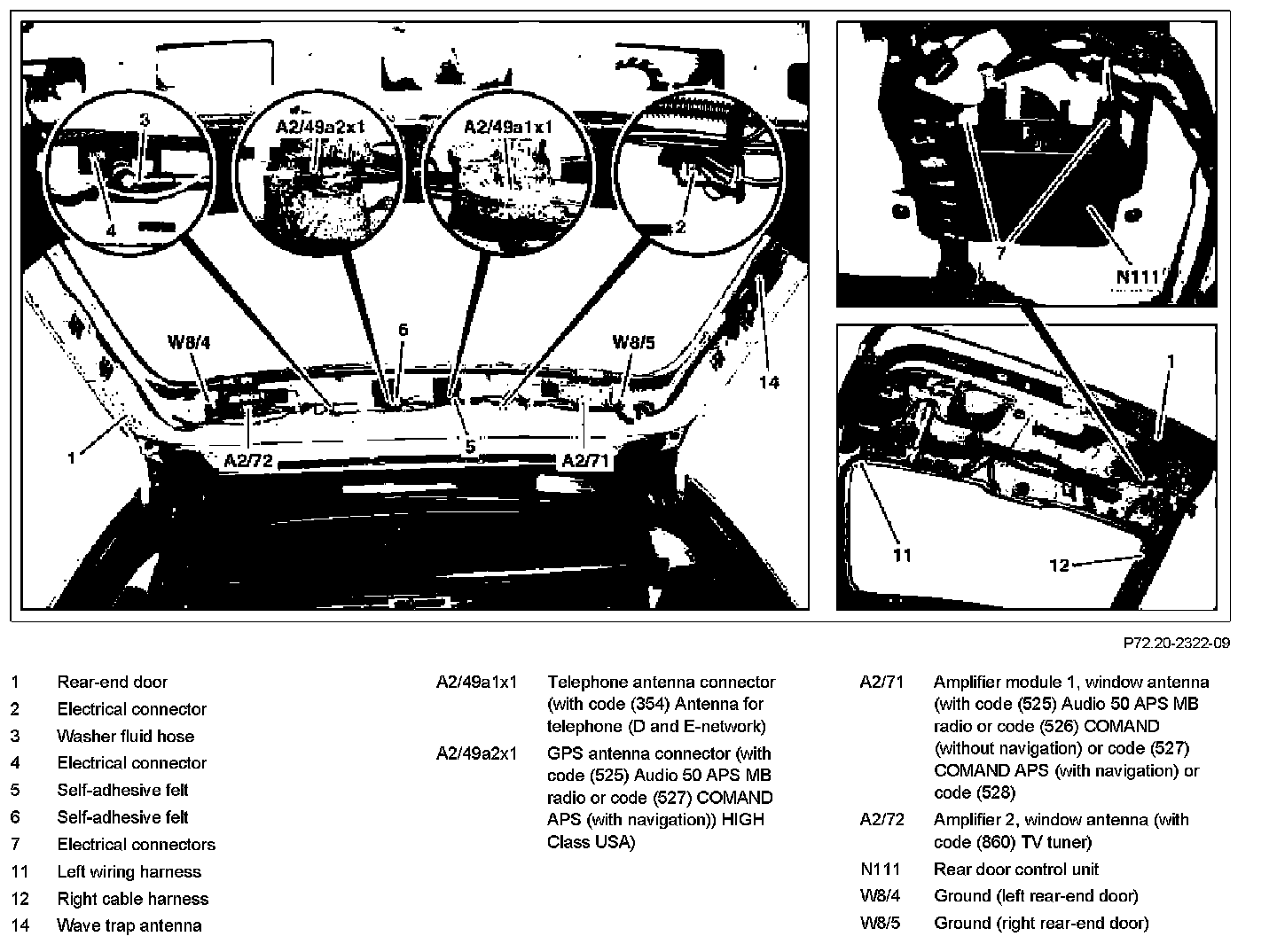

Steps 5.1 - 21:

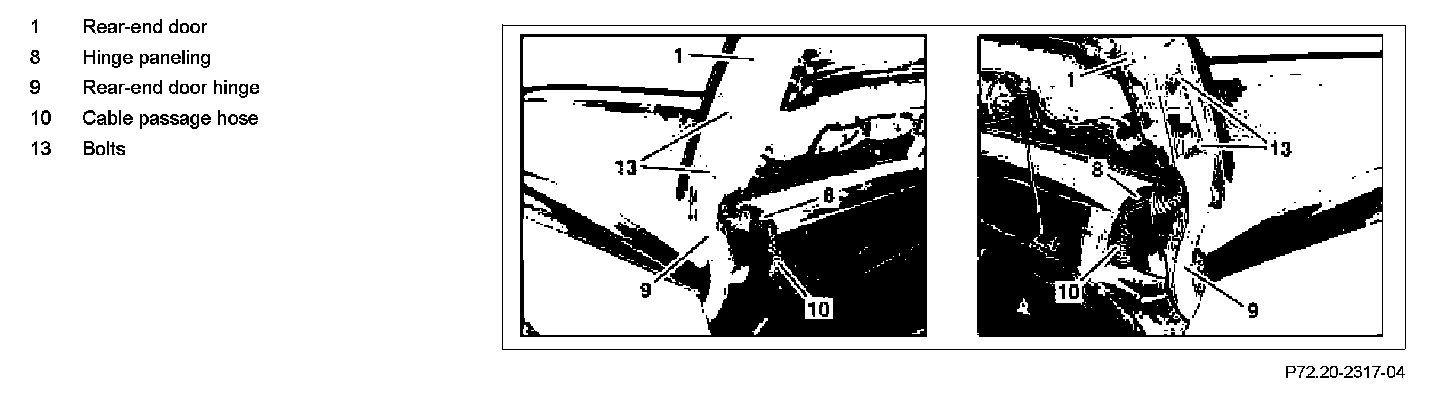

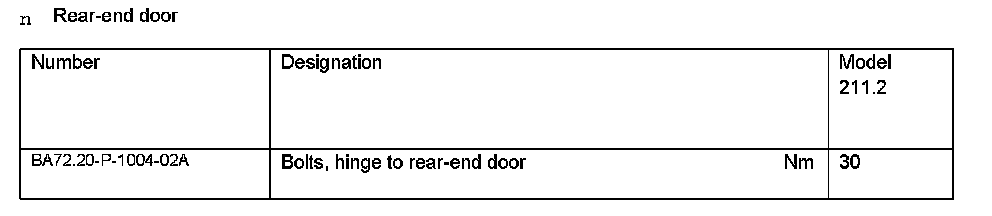

Rear-end Door:
