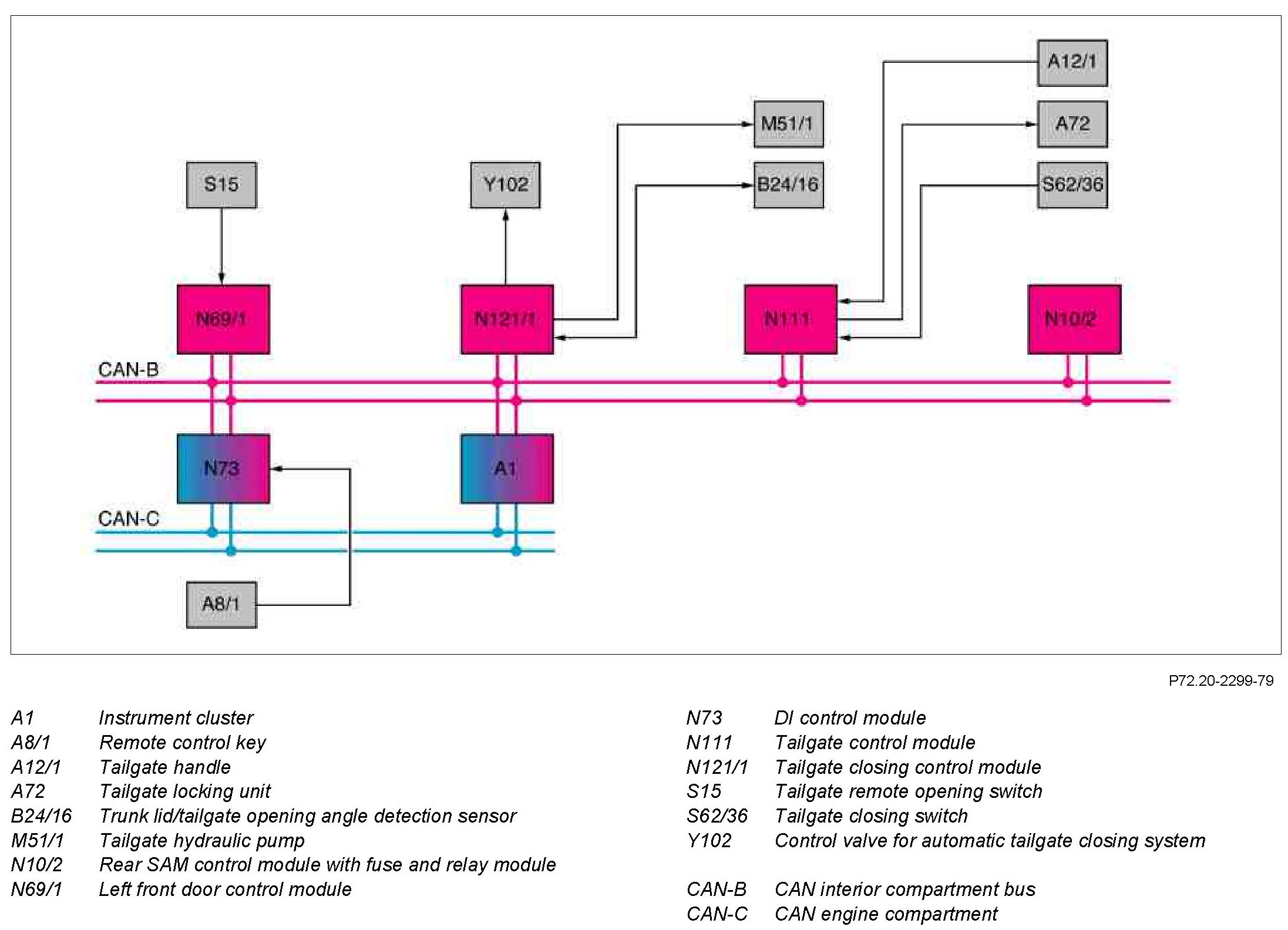

GF80.20-P-0001-02TA Tailgate Remote Actuation, Block Diagram



GF80.20-P-0001-02TA Tailgate Remote Actuation, Block Diagram
- with CODE (890) Automatic rear-end door


Component Identification:
