Procedures

AR82.30-P-6800-01T Move Wiper Motor To Parking Position

Modification Notes:

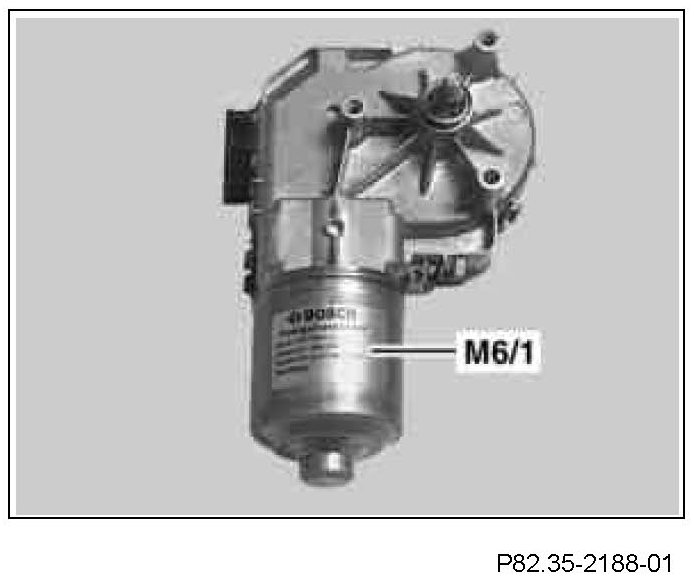

1 Connect electrical connector to wiper motor (M6/1).
2 Hold wiper motor (M6/1) with one hand.
3 Switch on ignition, turn combination switch to "stage 2" and then turn back to "stage 0".

Second person required

4 Switch off ignition, if the wiper motor (M6/1) is in parking position.

Second person required

5 Disconnect electrical connector at wiper motor (M6/1).
