Wiper Arm: Service and Repair

AR82.30-P-6100T Remove/Install Wiper Arm







DANGER:
- Risk of injury in the form of trapping or crushing, or even severing of limbs, if caught in windshield wiper mechanism
- Always remove ignition key when working on windshield wiper mechanism.

1 Move wiper arms to park position
2.1 Switch ignition off, remove key from electronic ignition switch
2.2 Switch off engine, remove transmitter key for Keyless Go out of vehicle and keep outside the range of the sending unit
3 Open engine hood and raise to vertical position

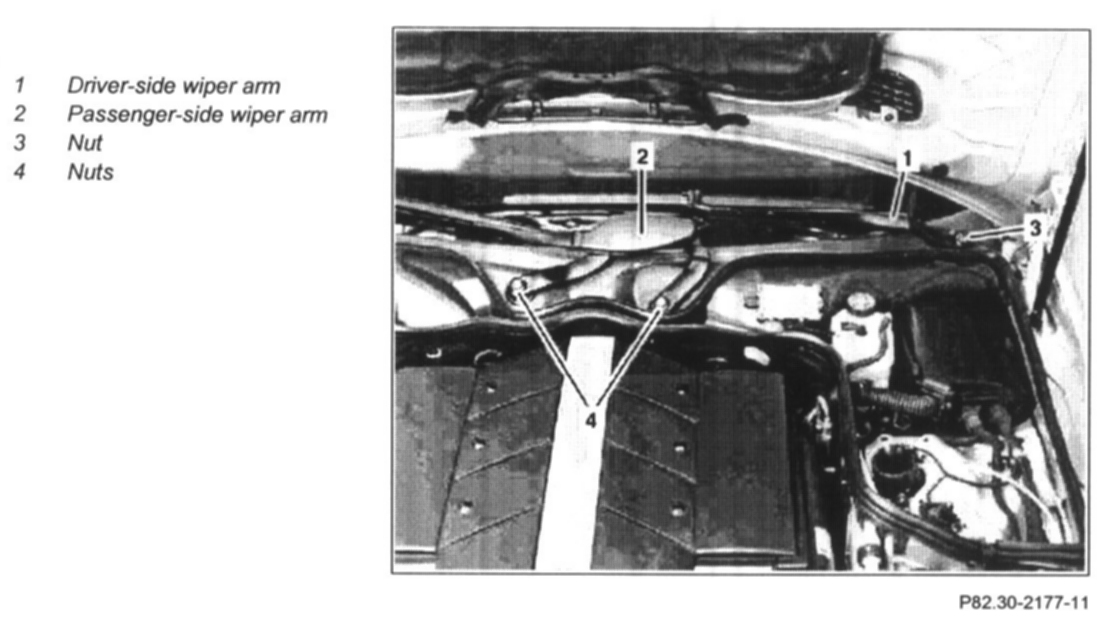

4 Unscrew nut (3) on driver-side wiper arm (1)

Nut on wiper arm
- 19 N.m (Model 211.0)
- 33 N.m (Model 211.2)

5 Remove driver-side wiper arm (1)

NOTE: Installation: Adjust wiper blade to marking on windshield.

6 Unscrew nuts (4) on passenger-side wiper arm (2)

Nut on wiper arm
- 19 N.m (Model 211.0)
- 33 N.m (Model 211.2)

7 Remove passenger-side wiper arm (2)

NOTE: Installation: Adjust wiper blade to marking on windshield.

8 Install in the reverse order
