AR82.30-P-6100-01T Adjust Wiper Arms

AR82.30-P-6100-01T Adjust Wiper Arms

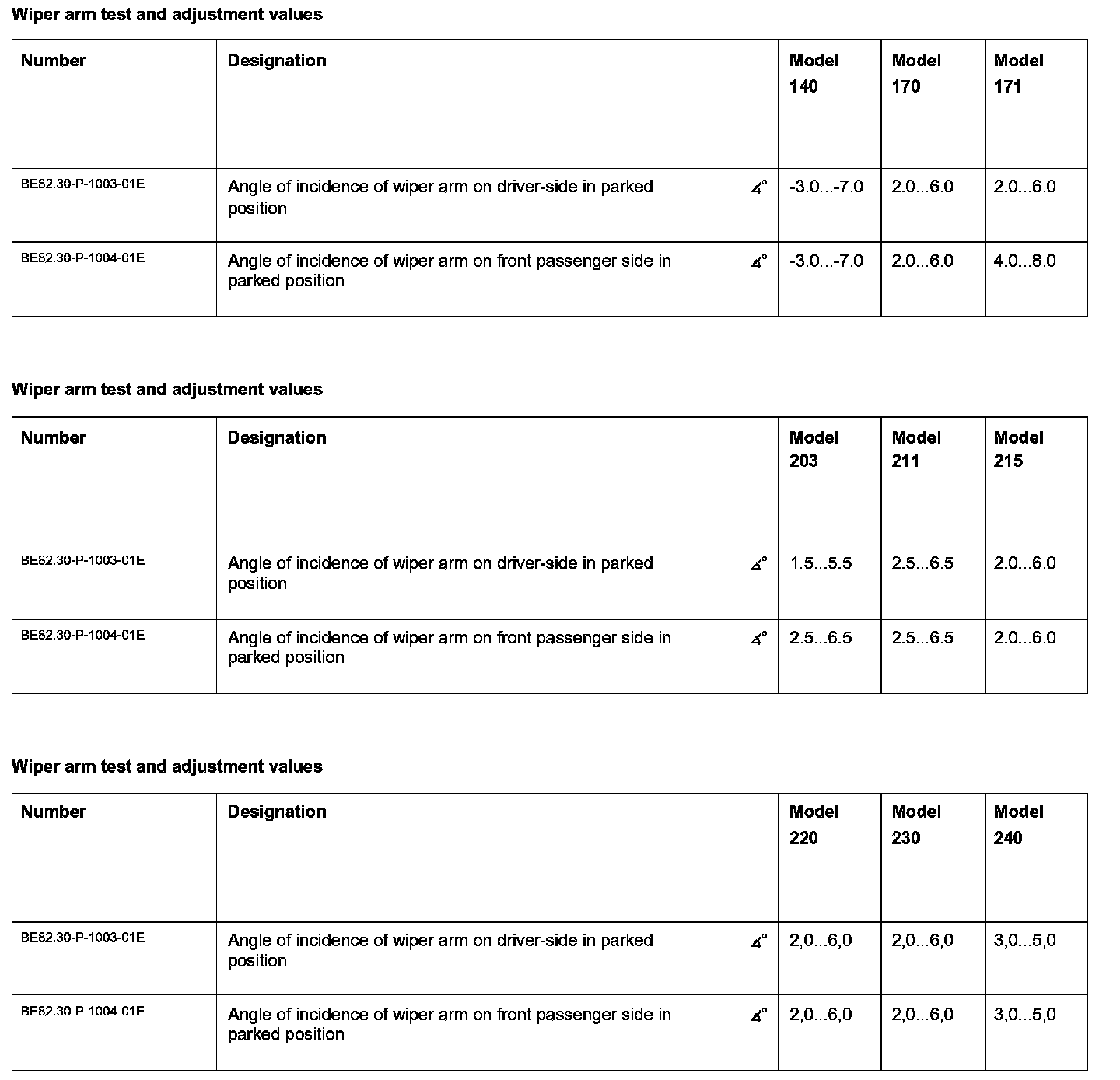

Wiper Arm Test And Adjustment Values:

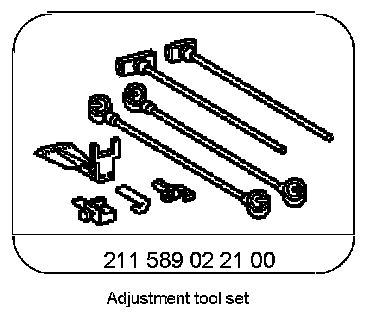

Special Tools:

The angle of incidence of the driver-side wiper arm and the passenger-side wipe arm is always adjusted in the parked position and is only carried out if the test values are out of the tolerance range in the reverse or parked position. The driver-side wiper arm or the passenger-side wiper arm is distorted by at least the value of the tolerance deviation in reverse position during this procedure.

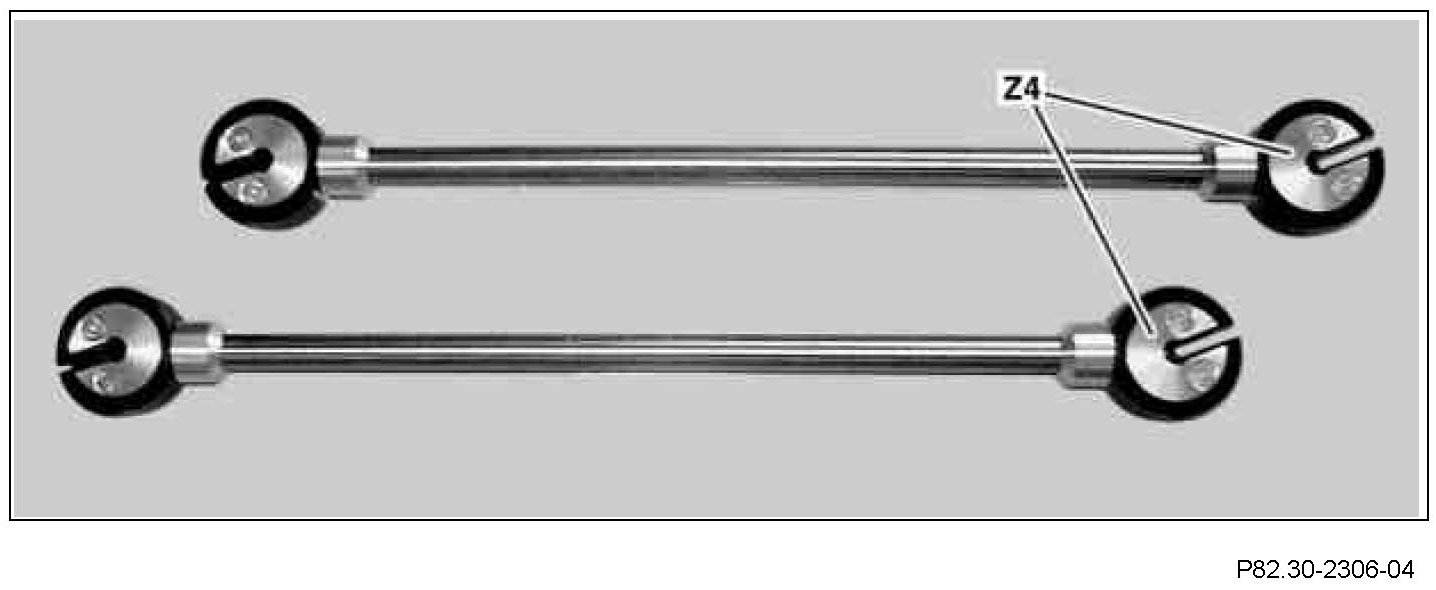

Use adjuster lever (Z4) from adjustment tool set.
Change relevant sign of test and adjustment values for right-hand drive vehicles.

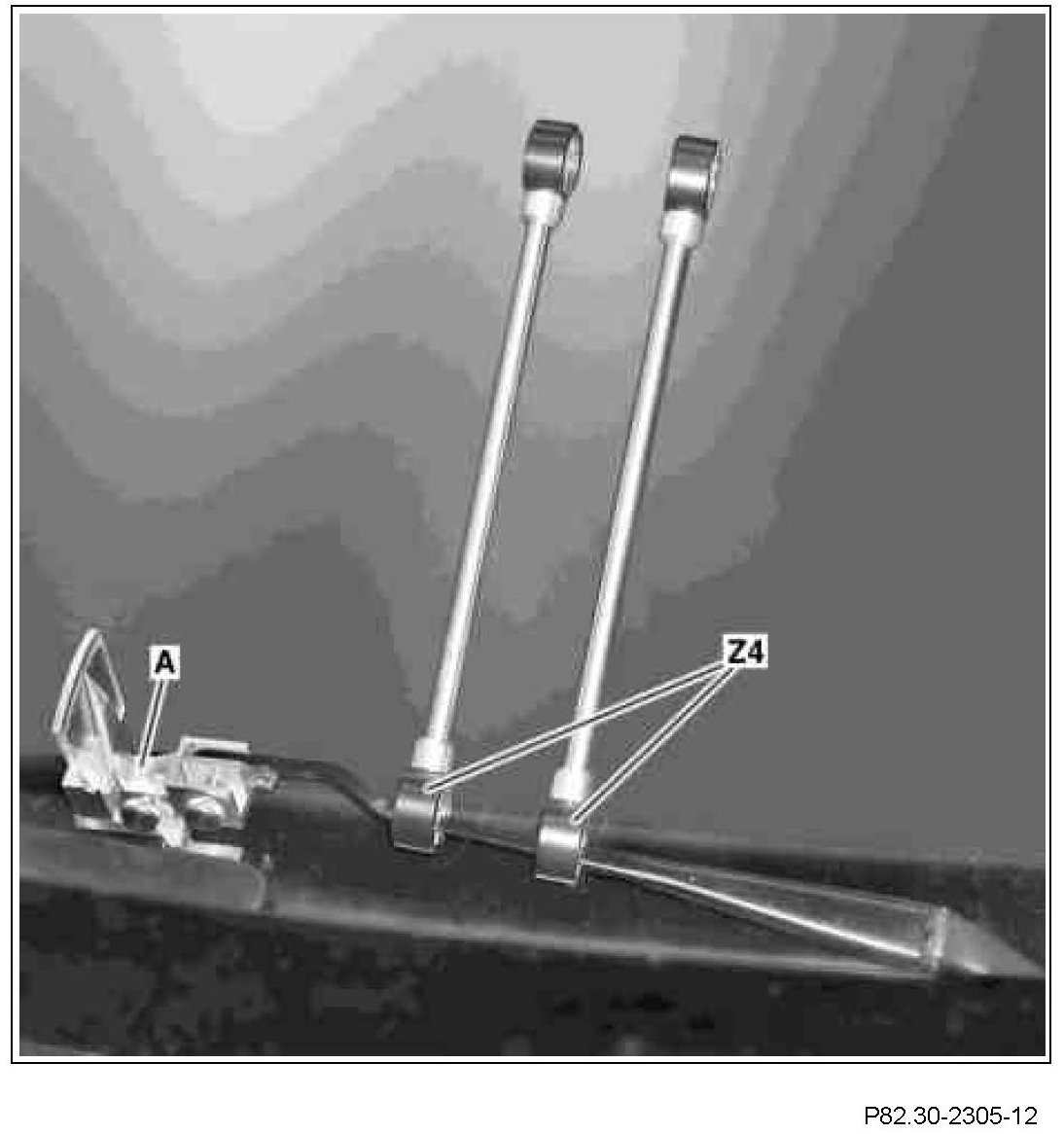

Shown on model 203, driver-side wiper arm in parked position

1 Fit angle measuring device (A) with adapter to wiper arm to be adjusted.
2 Lower wiper arm until all three contact points of the angle measuring device (A) foot are lying against the windshield.
3 Put adjuster lever (Z4) as far apart as possible on this wiper arm.

The wiper arm is distorted with the aid of the adjuster lever (Z4) which was positioned close to the angle measuring device. The second adjuster lever (Z4) is used as a counterholder.

4 Press the adjuster lever (Z4) into the required direction until the wiper arm is at least distorted by the value of the tolerance deviation in reverse position.
5 Remove adjuster lever (Z4) from wiper arm.

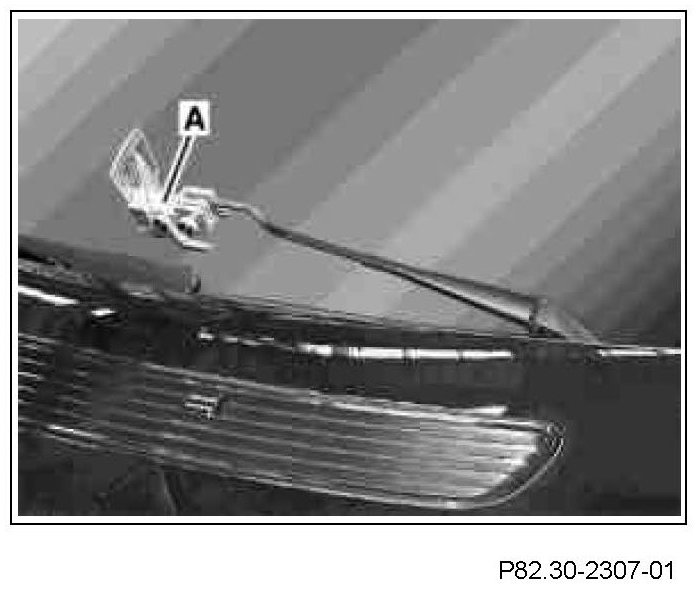

Shown on model 203, driver-side wiper arm in parked position

6 Read off angle of incidence of adjusted wiper arm from scale of angle measuring device (A), note down and compare with test and adjustment values.
7 Remove angle measuring device (A) with adapter from adjusted wiper arm.
