Procedures

AP82.35-P-8252-01T Check Setting Of Windshield Washer System Spray Nozzles

Danger: Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.

Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of children's reach only.

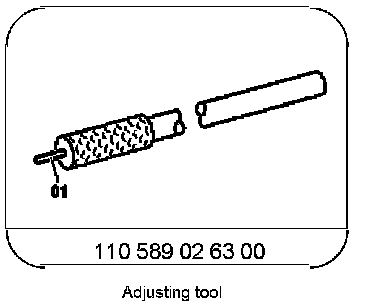

Special Tools:

1 Check windshield washer system spray nozzle settings, correct if necessary with adjusting drift.

The spray jets must strike the windshield in the marked area.
Model 211.2: The spray jet must strike the rear window in the center.
