AR67.10-P-1503-01P Install Windshield

AR67.10-P-1503-01P Install Windshield

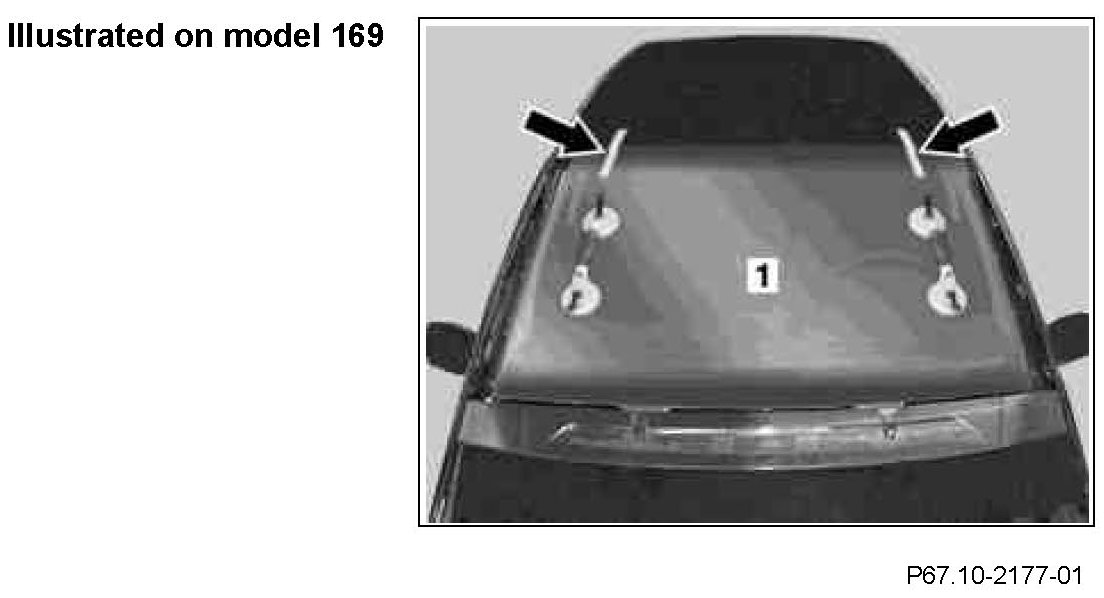

1. Position both Cup suction tools on windshield (1).
Suction lifting device

2. Center windshield (1) above window cutout on body flange with aid of helper and then position to coincide with strips of adhesive tape (arrows).
3. Position windshield (1) on adhesive bead and press on until it makes contact with rubber window spacers and rubber lip.
Install windshield (1) within 10 minutes after applying glue bead before adhesive force of glue starts to decrease.
Open a side window in the vehicle to prevent the windshield (1) from being pressed outward by air pressure when the door is closed
The curing time (drive-away time) is approx. 1 h for the 2-component repair kit and approx. 2 h for the 1-component repair kit, calculated from the time the windshield (1) is installed.
