Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Windows and Glass >> Windshield >> Service and Repair >> Removal and Replacement >> AR67.10-P-1050T Remove, Install Detachable Parts When Replacing Windshield

AR67.10-P-1050T Remove, Install Detachable Parts When Replacing Windshield



AR67.10-P-1050T Remove, Install Detachable Parts When Replacing Windshield


Component Identification:

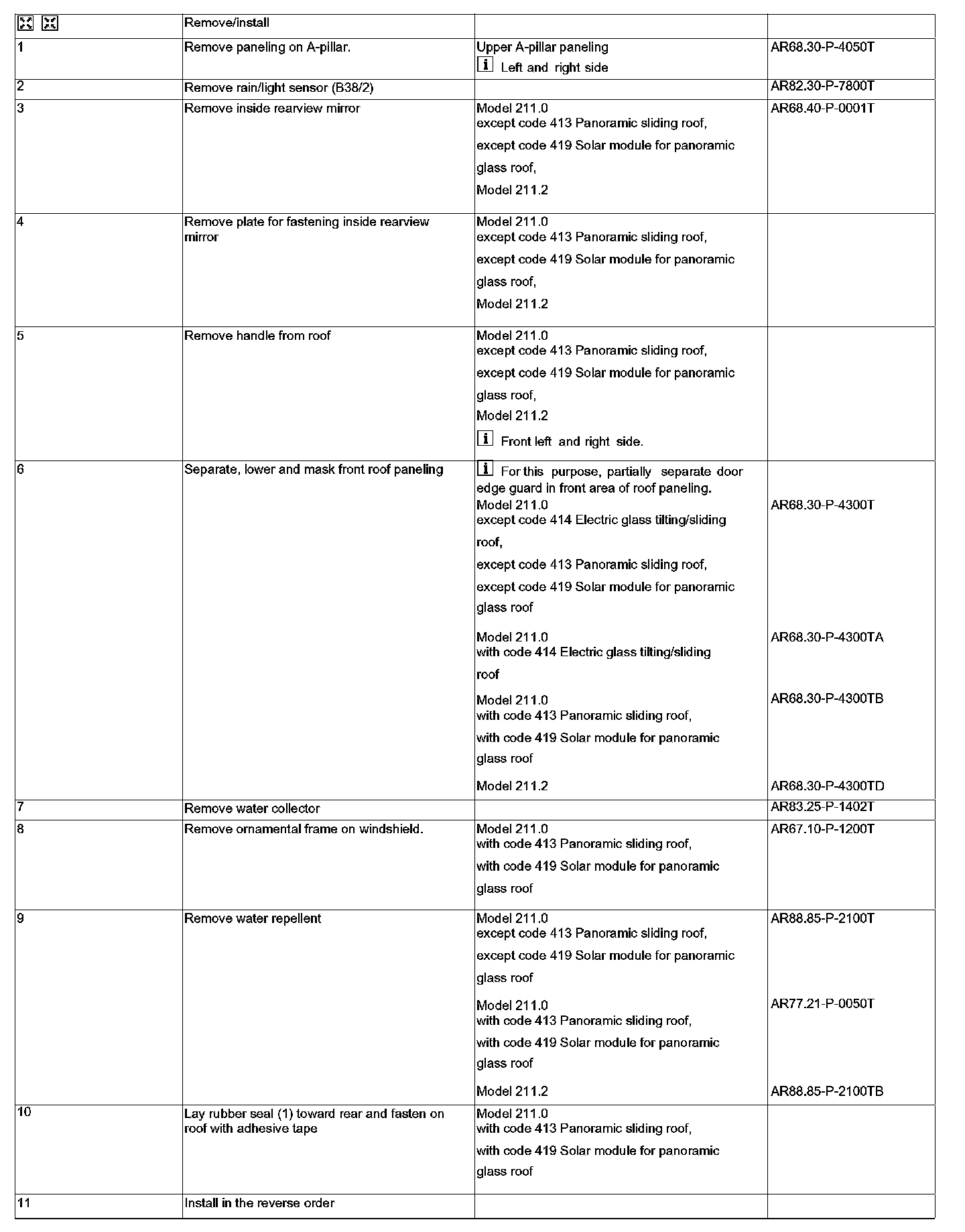

Steps 1 - 11:
