AR67.10-P-1000TS Remove/Install Windshield



AR67.10-P-1000TS Remove/Install Windshield
- with CODE (Z04) Light armoring

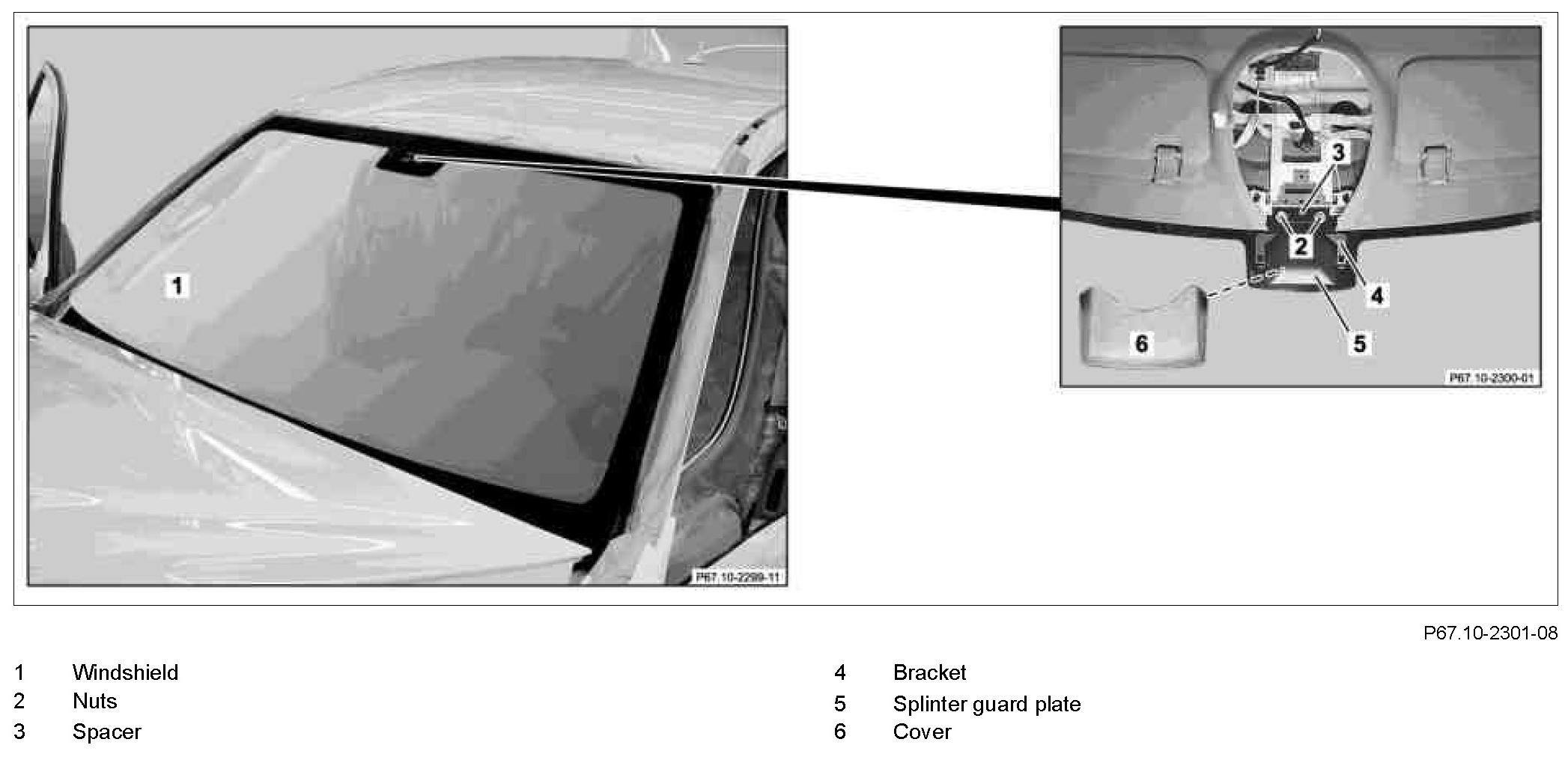

Component Identification:

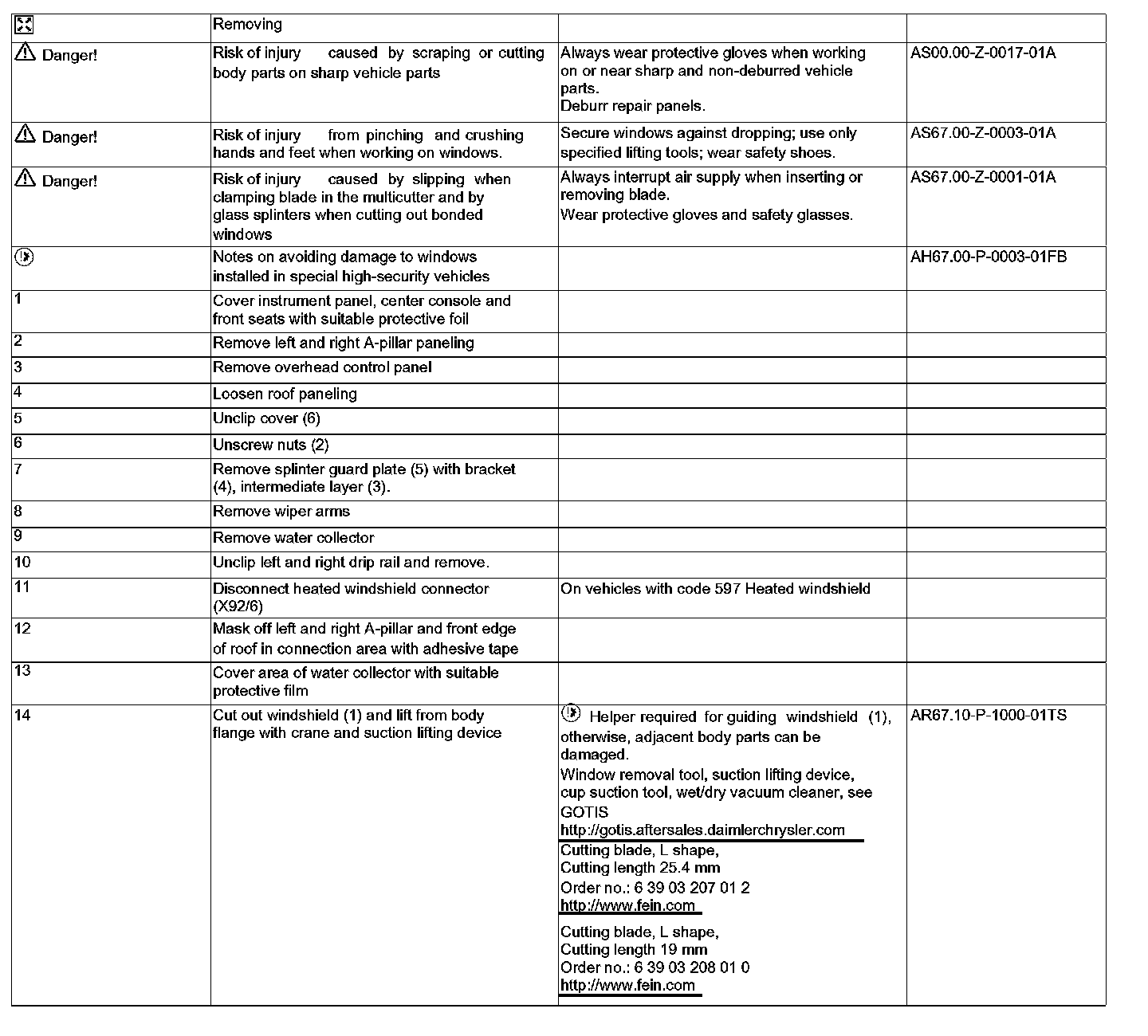

Steps 1 - 14:

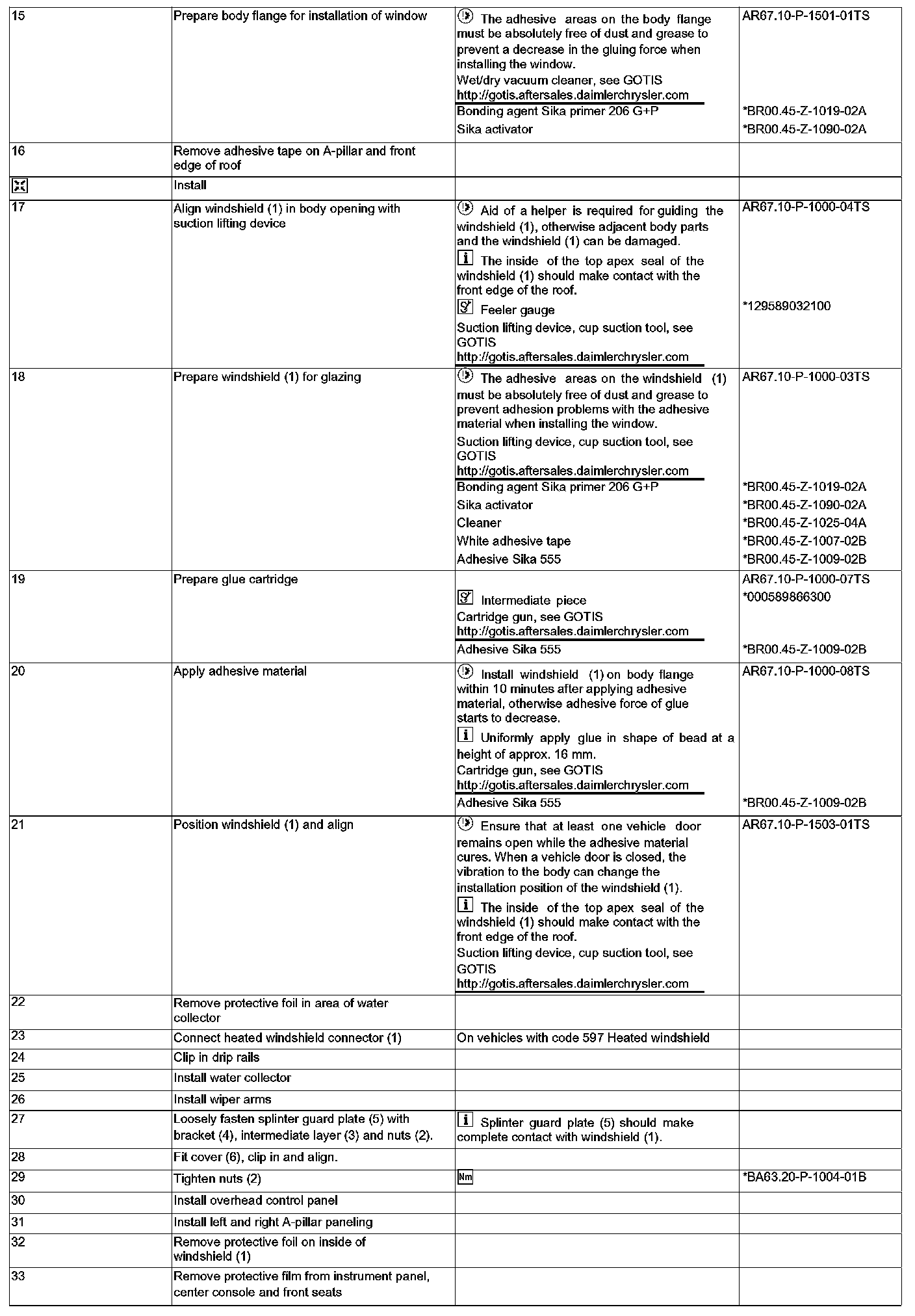

Steps 15 - 33:




Pillars:




Special Tools:

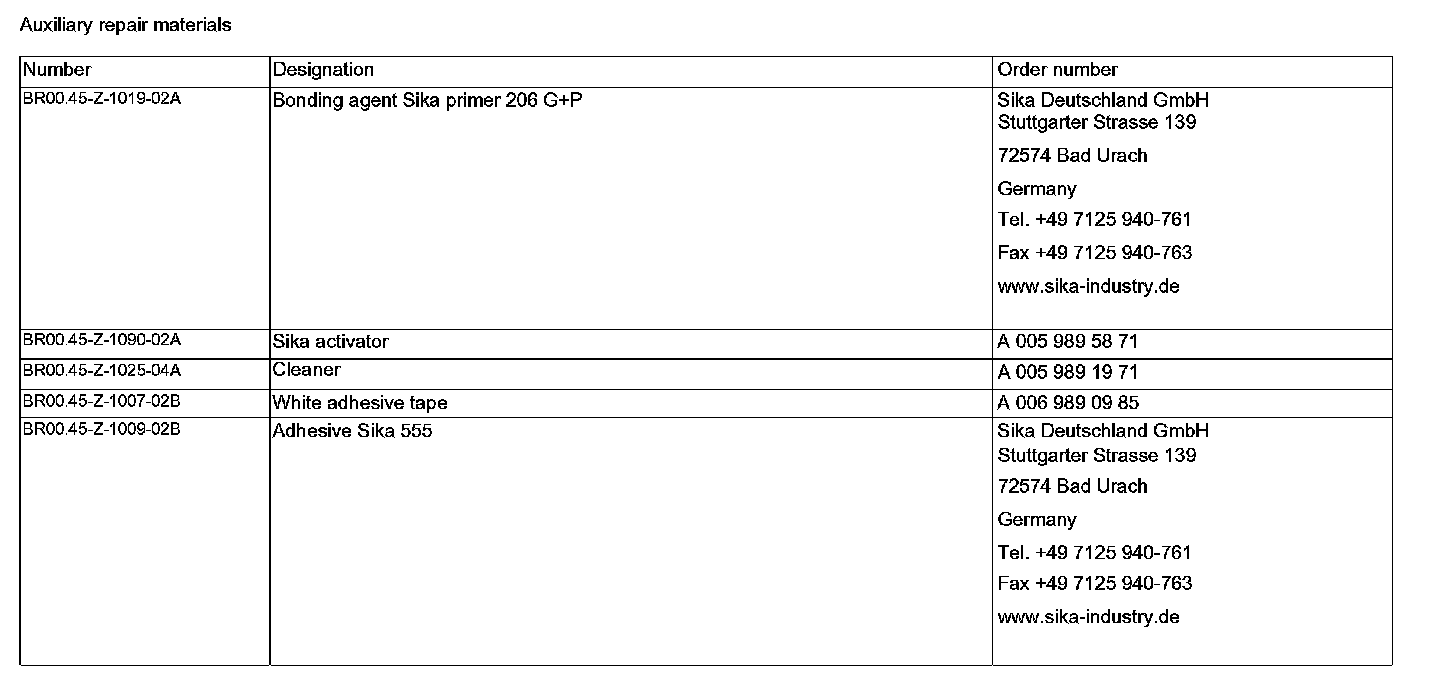

Auxiliary Repair Materials:
