AR67.10-P-1000P Remove/Install Windshield

AR67.10-P-1000P Remove/Install Windshield
MODEL 169, 171, 203, 207, 209, 211, 212.1 /2, 218, 230.4, 240, 245.2, 246
MODEL 212.0
- except CODE (Z04) Light armoring

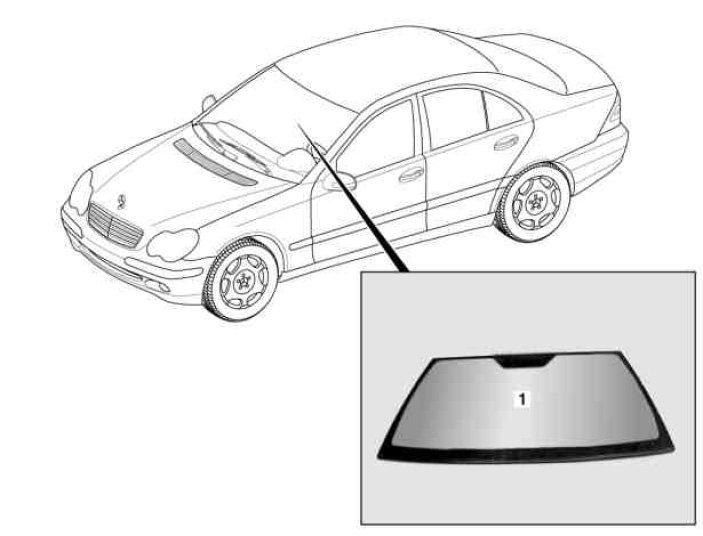

Illustrated on model 203.0

1 Windshield


























000 589 86 63 00
Intermediate piece





129 589 03 21 00
Feeler gauge
