AR67.10-P-1000-03TS Prepare Window For Installation

AR67.10-P-1000-03TS Prepare Window For Installation
- with CODE (Z04) Light armoring







The gluing areas on the windshield (1) must be absolutely free of dust and grease to prevent adhesion problems with the adhesive material when installing the window.

1. Check windshield (1) for scratches and damage, replace if necessary.

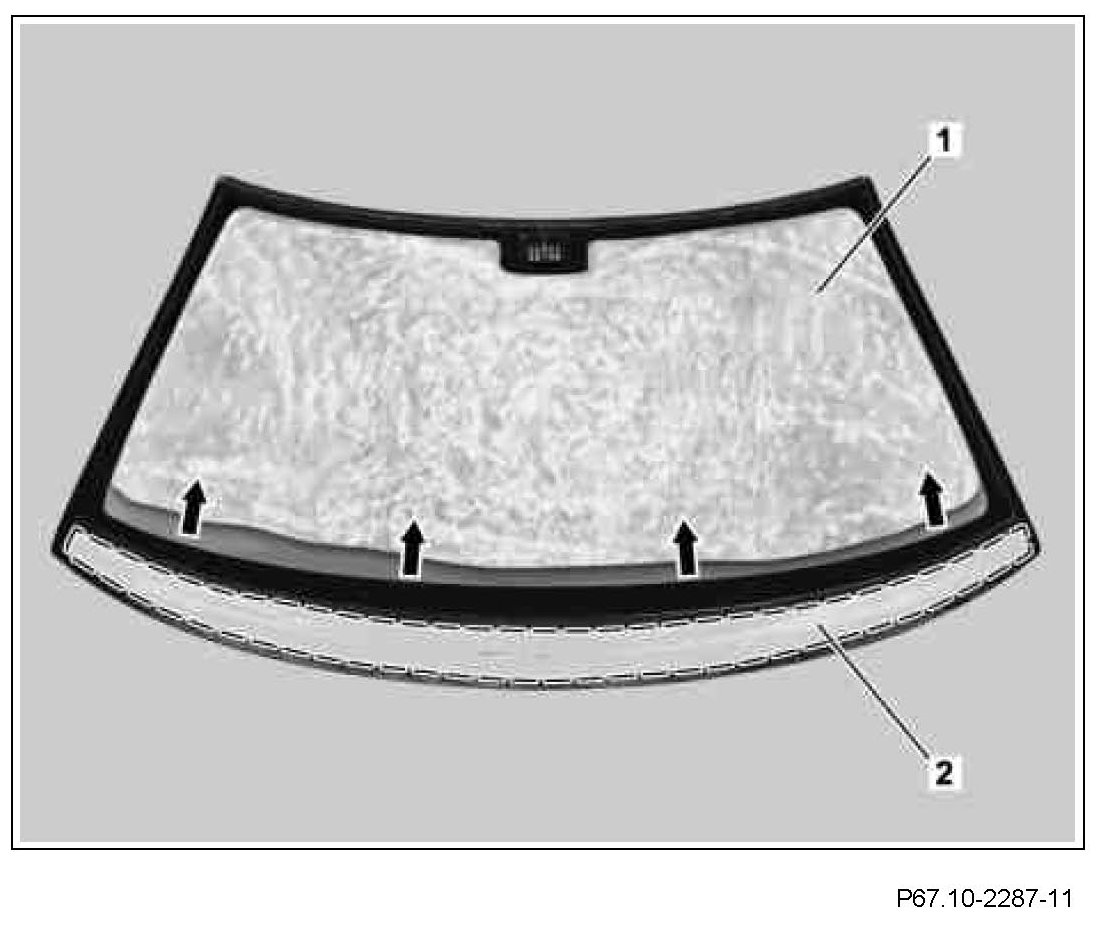

2. Fold protective foil on inside of windshield (1) approx. 5 cm above screen print toward inside (arrows) and fasten to protective foil with adhesive tape.
Do not glue adhesive tape to protective coating on inside of windshield, otherwise the protective coating can be damaged.

3. Clean windshield (1) in lower area.
4. Clean adhesive areas on windshield (1), allow to flash off and coat with activator.
Observe flash-off time for activator.

5. Coat adhesive areas on windshield (1) with primer.
Observe processing instructions for primer to prevent adhesion problems with the adhesive material when installing the window.

6. Install white adhesive tape (2) for support bead on windshield (1).
7. Hold electric lines for heated windshield connector in place on outside of windshield (1) with suitable adhesive tape.
With code 597 Heated windshield
