Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Front Door Window Glass >> Adjustments

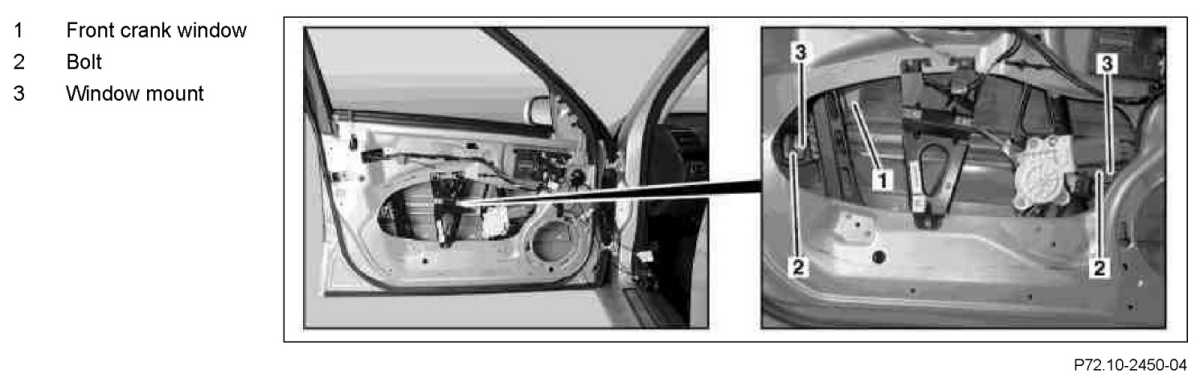

Front Door Window Glass: Adjustments

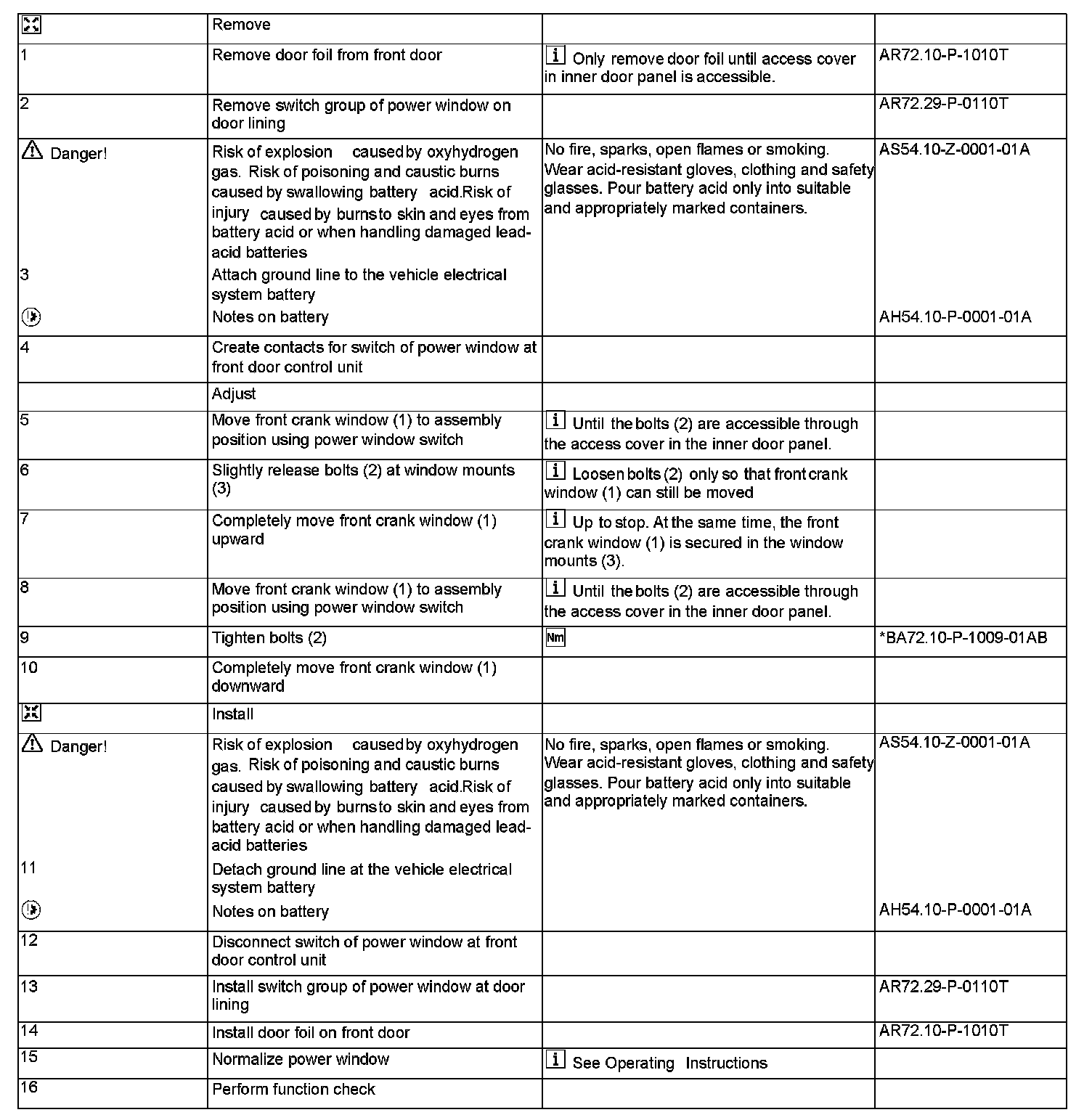

AR72.10-P-1950T Adjust Front Door Crank Window

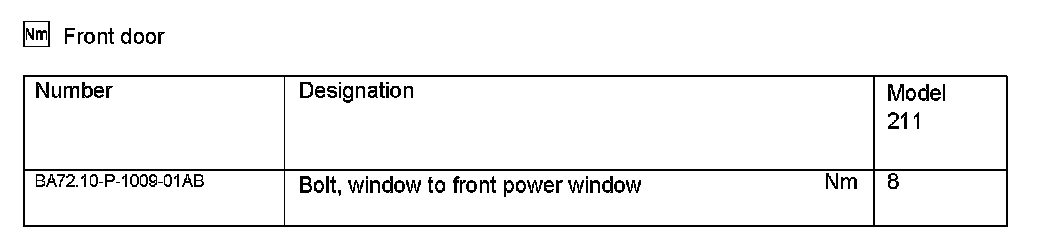

Front Door:
