AR67.20-P-2000P Remove/Install Rear Wall Window

AR67.20-P-2000P Remove/Install Rear Wall Window
MODEL 203.0, 207.3, 209.3, 211.0, 212.1, 218.3, 240
MODEL 212.0
- except CODE (Z04) Light armoring
MODEL 230.4
- with CODE (P99) Special model "AMG Black Series"

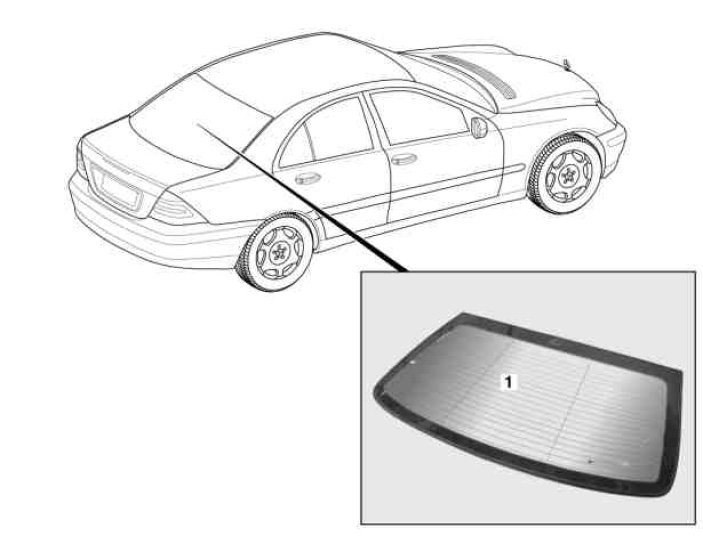

Illustrated on model 203.0

1 Rear window

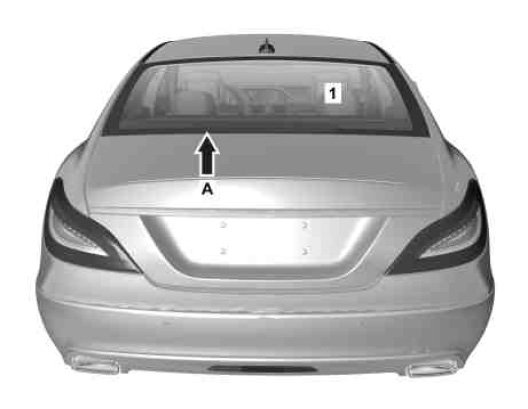

Type 218.3

1 Rear window
A Punching point





























000 589 86 63 00
Intermediate piece





129 589 03 21 00
Feeler gauge





110 589 03 59 00
Mounting wedge
