Function Schematic For Heated Rear Window Electrical System PE67.29-U-2050DA

Function Schematic For Heated Rear Window Electrical System PE67.29-U-2050DA

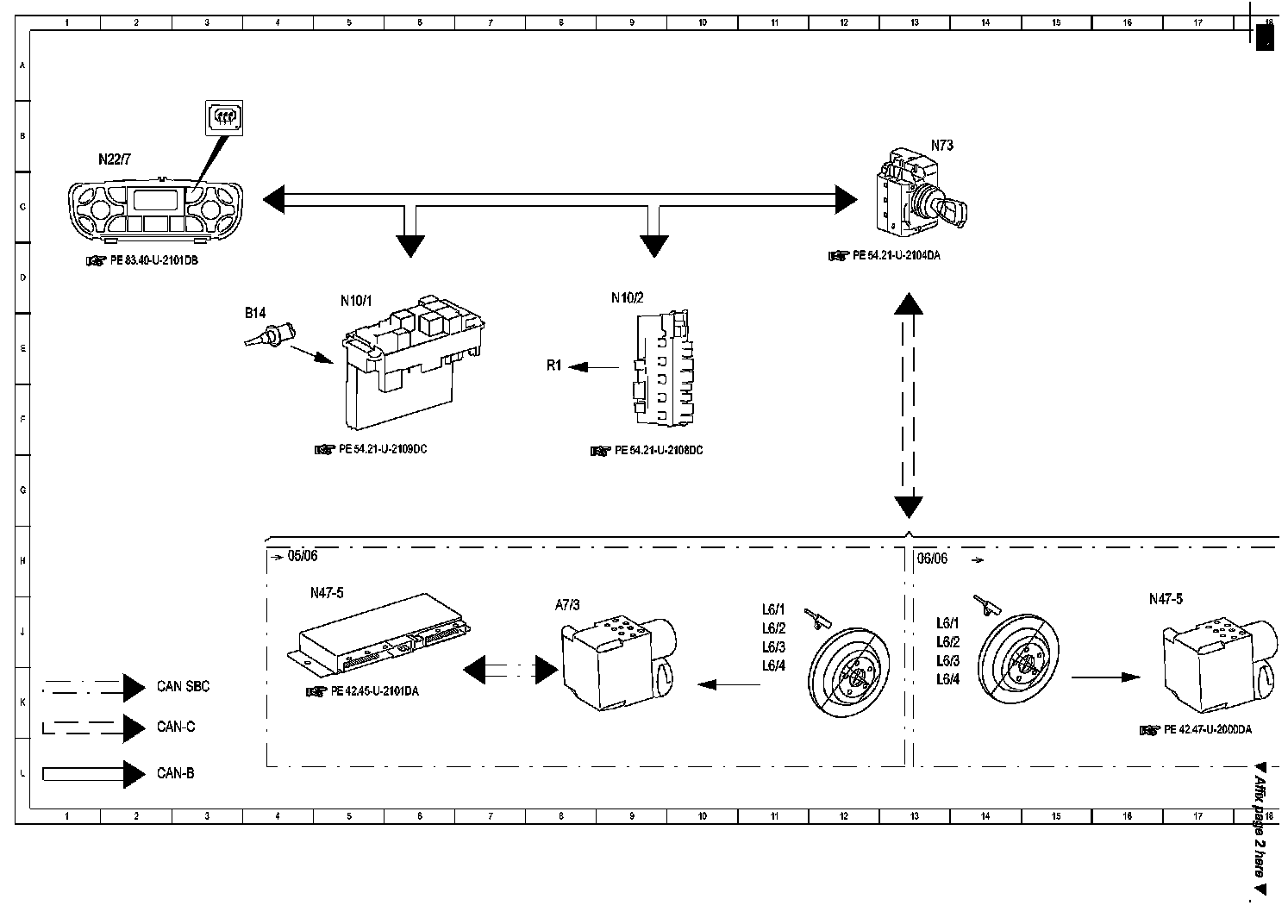

Function Diagram (Part 1):

Function Diagram (Part 2):

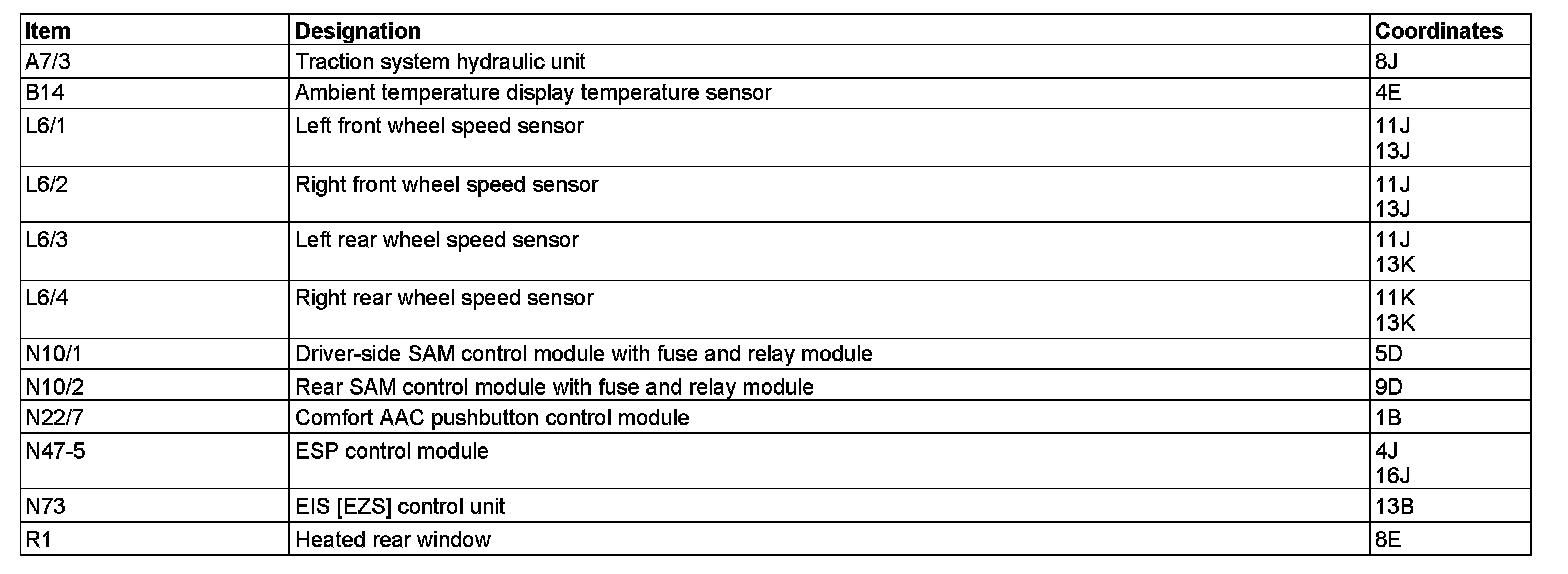

Component Description/Coordinates, A7/3 To R1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
