AR26.60-P-0600TS Remove/Install Floor Selector



AR26.60-P-0600TS Remove/install floor selector
- Transmission 716.6
- Vehicle with single-rod gearshift

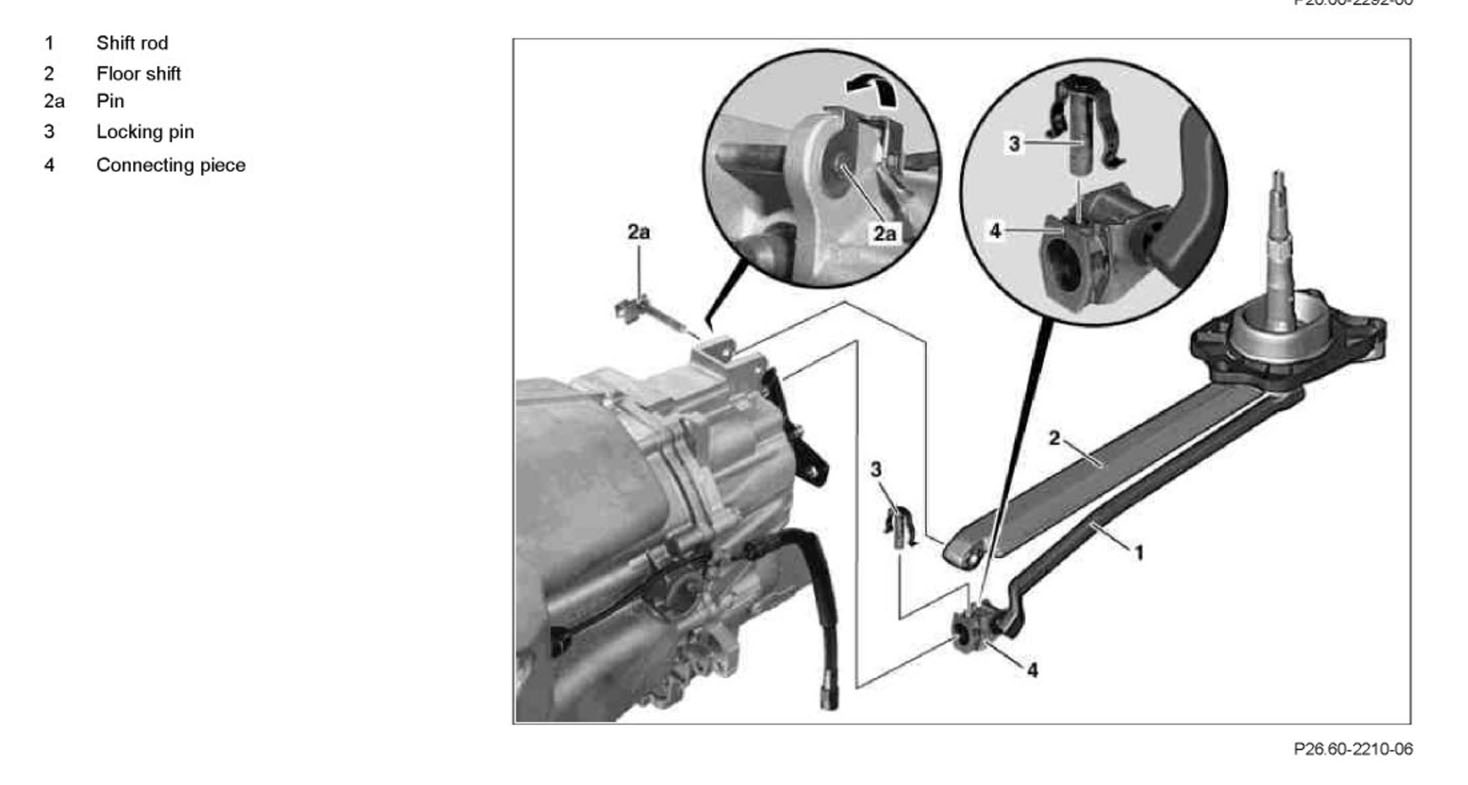

Component Identification:

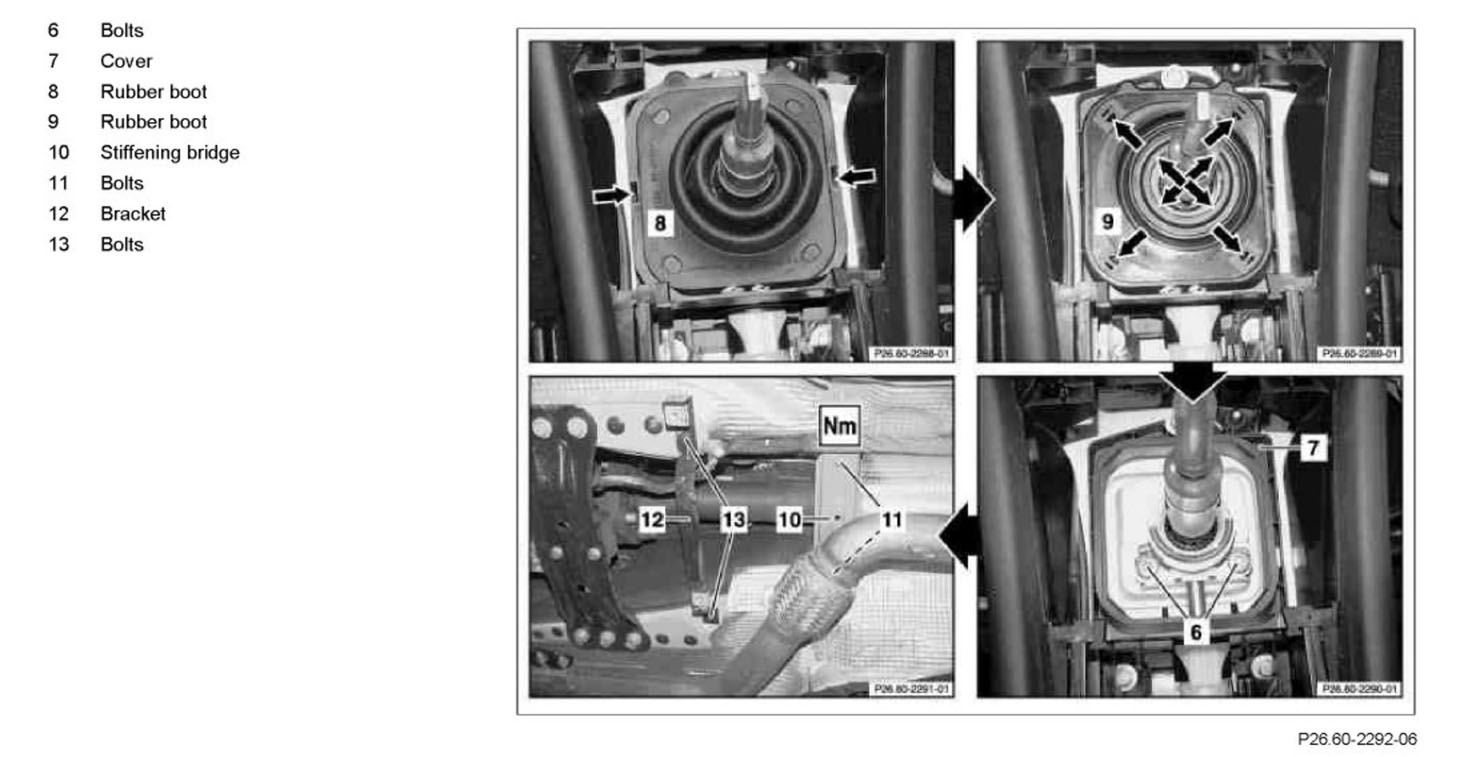

Component Identification:

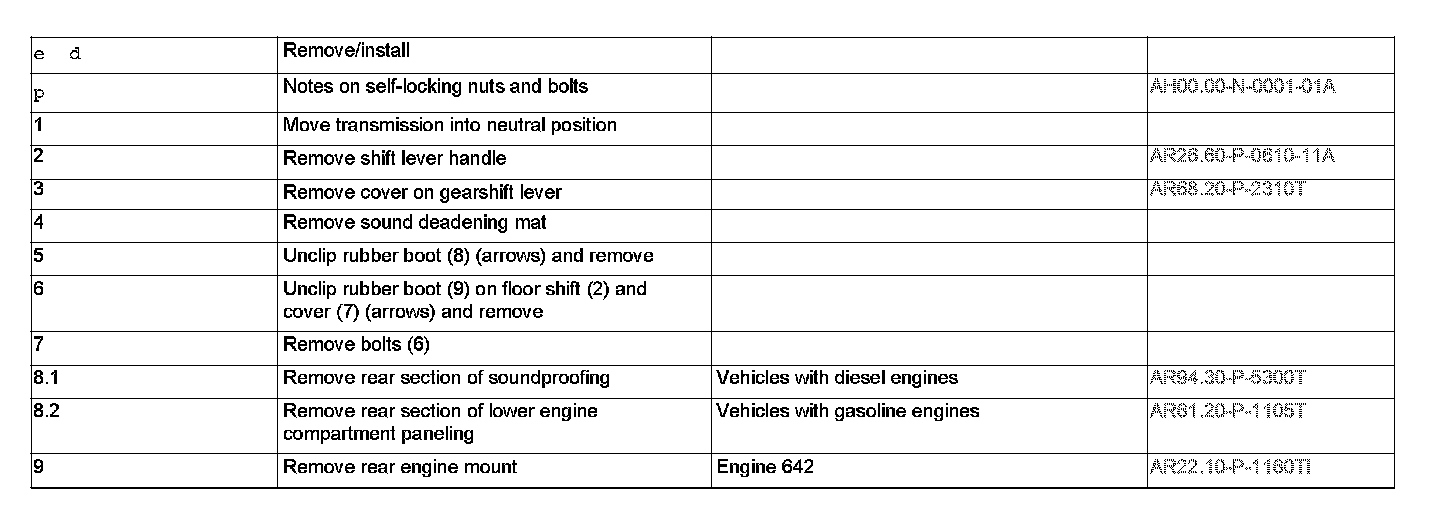

Steps 1-9:

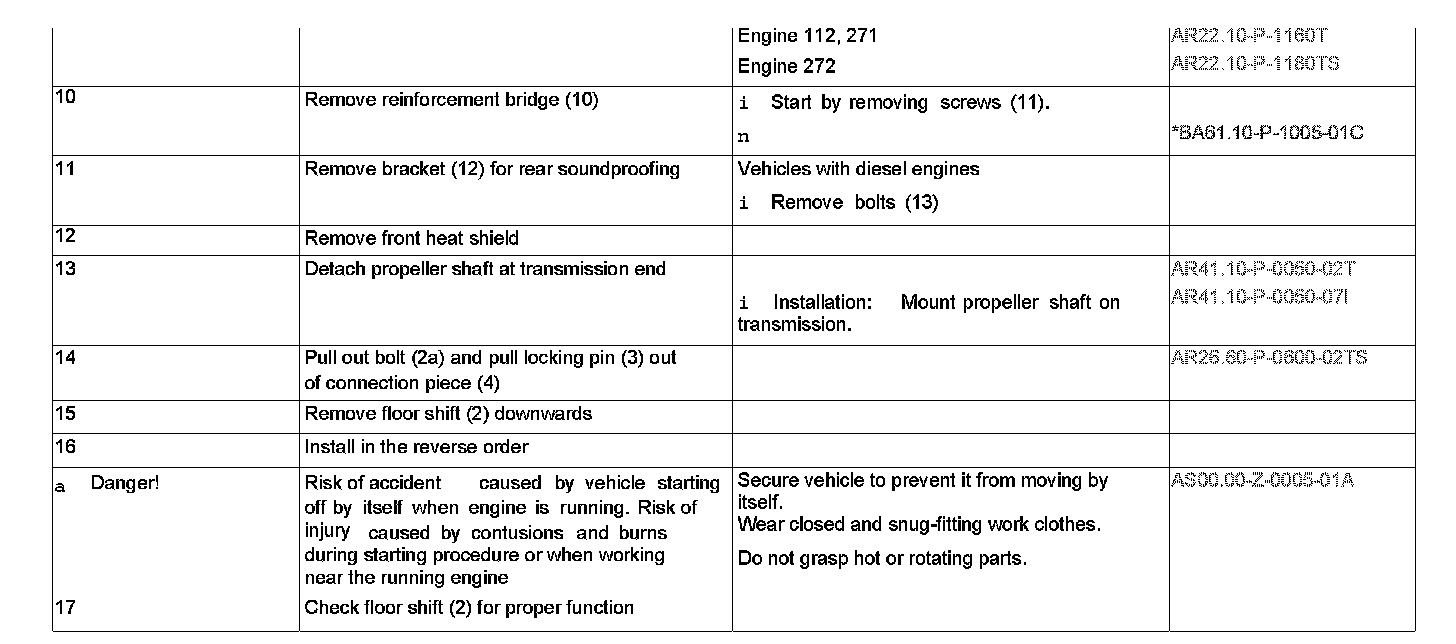

Remove/install Steps 10-17:

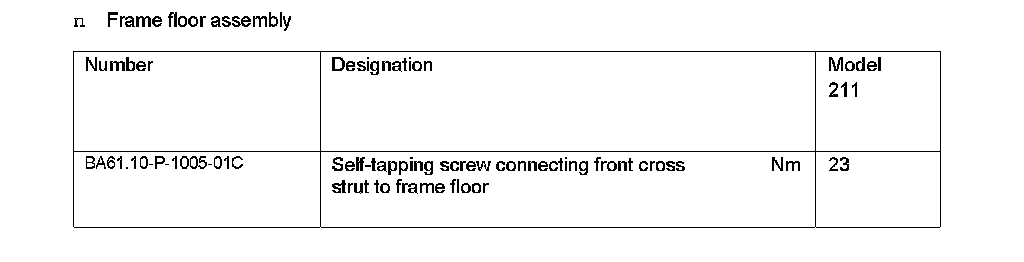

Frame Floor Assembly:
