AR26.60-P-0610-11A Detaching and Attaching Shift Lever

AR26.60-P-0610-11A Detaching and attaching shift lever
Standardization of gearshift lever fastening
- TRANSMISSION 716.6


Remove

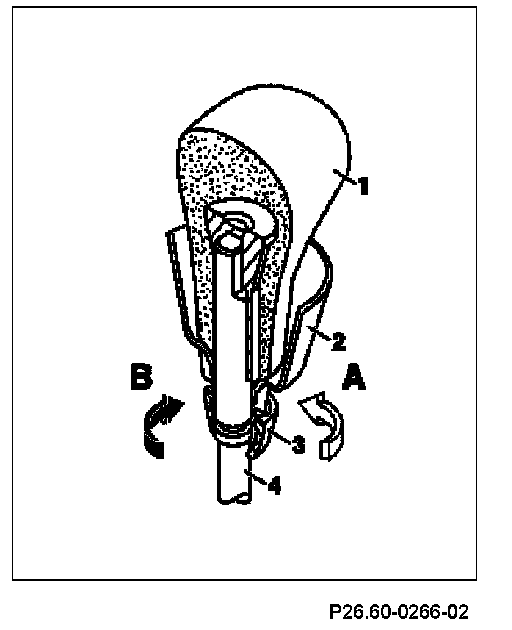

Component Identification:

1 Release gaiter (2) from center console trim panel and turn inside out over the shift lever handle (1).
2 Loosen clamp (3) by turning counterclockwise (arrow A).
3 Pull shift lever handle (1) upward from shift lever (4).

Mounting
4 Push shift lever handle (1) with gaiter (2) onto shift lever (4).
5 Tighten clamp (3) by turning clockwise (arrow B).
6 Fix gaiter (2) to the center console cover.
