AR41.10-P-0050-09DA Release Guide Sleeves In Flexible Couplings.

AR41.10-P-0050-09DA Release guide sleeves in flexible couplings.
Drift for releasing the fitted sleeves in the flexible couplings

Propeller shaft installed

Component Identification:

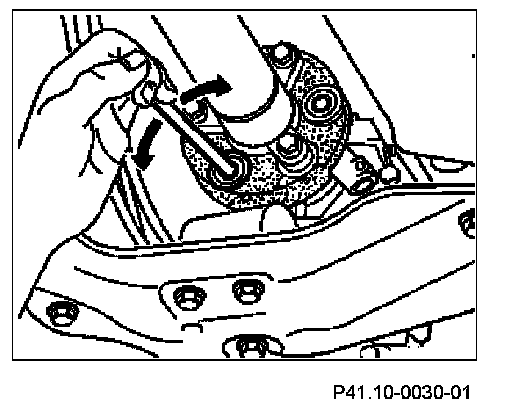

1.1 Loosen the fitted sleeves of the flexible couplings at the transmission and rear axle joint flange using the drift (shop-made tool).

Propeller shaft removed

Component Identification:

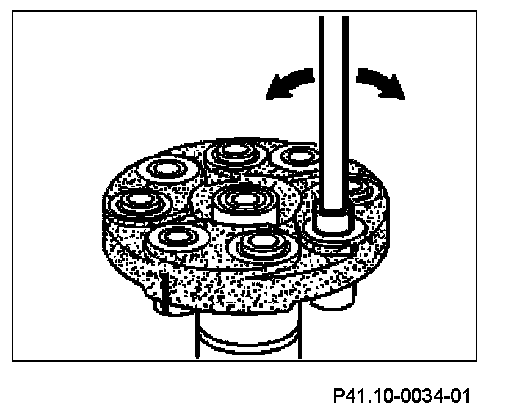

1.2 Loosen the fitted sleeves of the flexible couplings at the three-arm or four-arm flange using the drift (shop-made tool).
