AR35.20-P-0130-06TX Pull Rear Axle Shaft Flange Out of Angular Contact Ball Bearing

AR35.20-P-0130-06TX Pull rear axle shaft flange out of angular contact ball bearing
- except CODE (P99) Special model "AMG Black Series" [model 230]

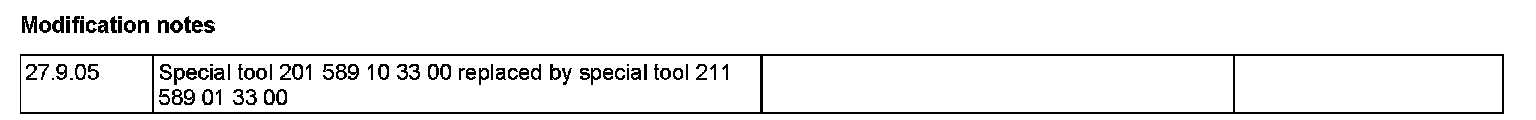

Modification Notes:

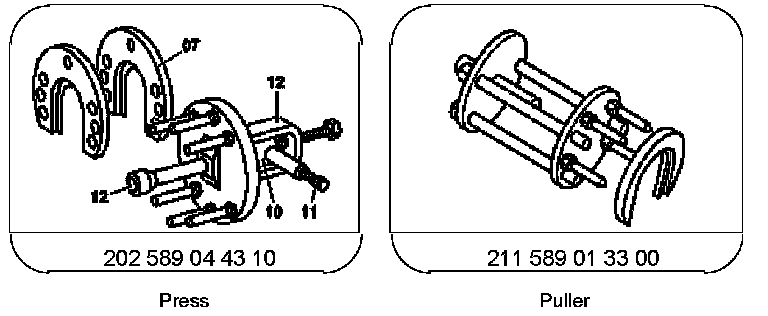

Special Tools:

Component Identification:

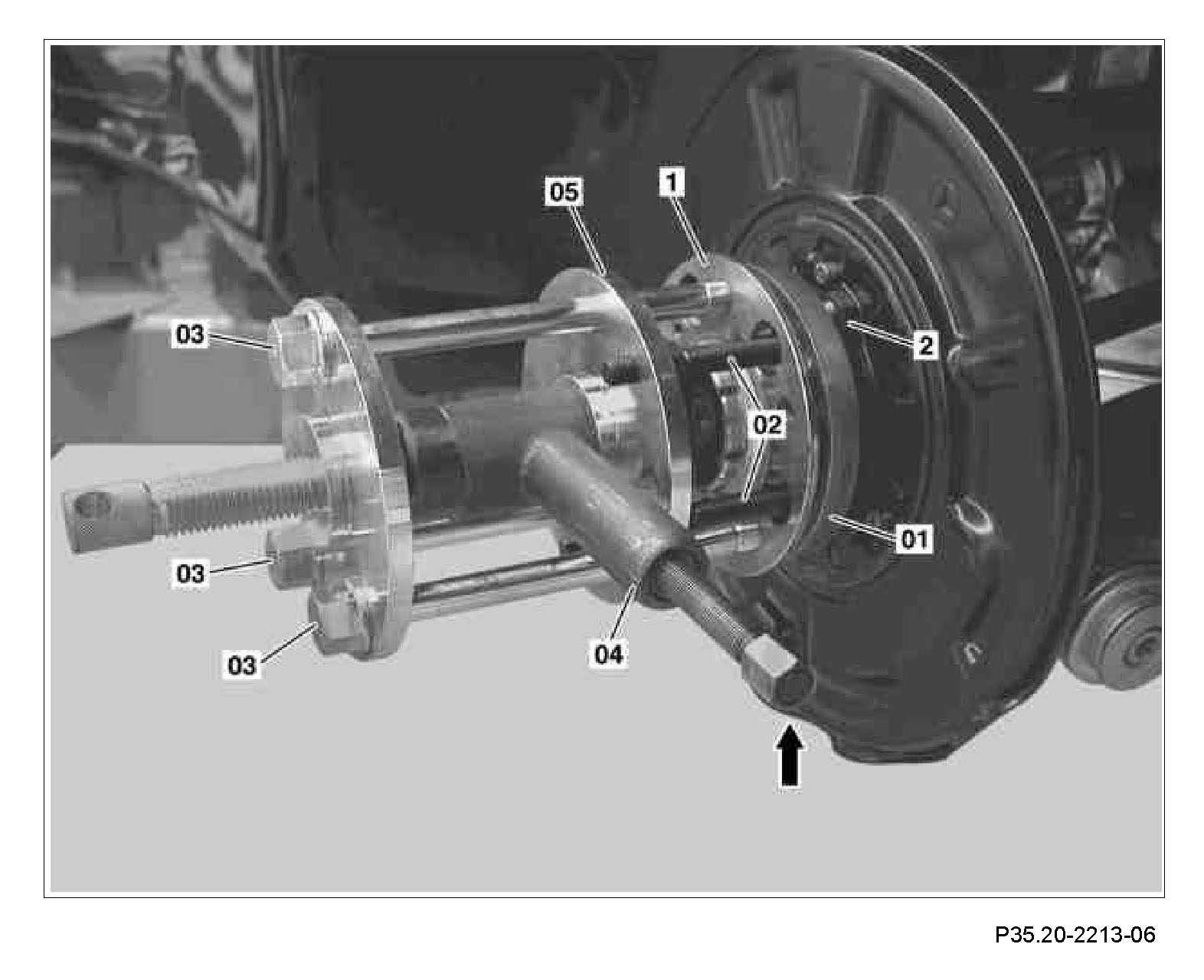

1 Position the pressure plate (01) behind the rear axle shaft flange (1).
2 Screw retaining bolts (03) into the rear axle shaft flange (1).
3 Push the guide plate (05) forwards until the guide pins (02) are fixed in position in the pressure plate (01).
4 Insert press (04) and pull rear axle shaft flange (1) out of angular contact ball bearing (2) by turning the spindle (arrow).
