AR35.10-P-0051-01R Remove/Install Rubber Mount of Front Center Assembly Mounting

AR35.10-P-0051-01R Remove/Install Rubber Mount of Front Center Assembly Mounting





129 589 03 43 00
Press out/in tool





140 589 28 63 00
Thrust washer





Removing

1 Position the front center assembly mounting (51) on the press bed such that the rubber mount can comfortably be pressed out through the bottom.

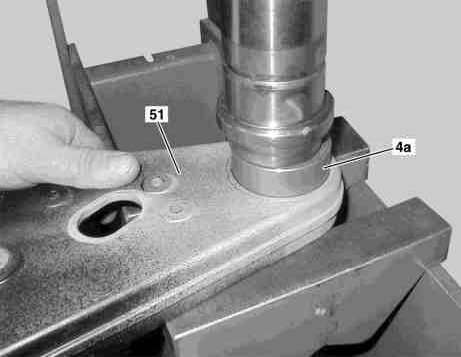

2 Use thrust piece (4a) to press rubber mount out of front differential mount (51).





Install

3 Place the rubber mount (60b) on the outer ring on the press bed.

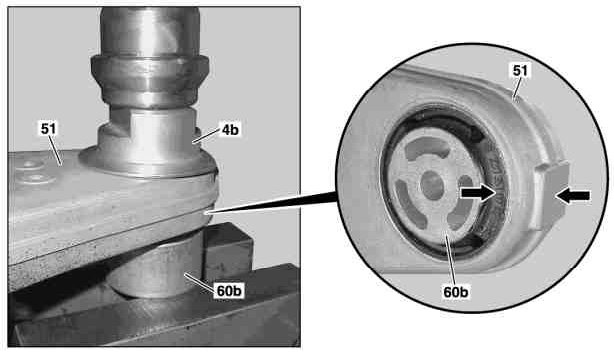

Model 230: Observe installation position - align kidney-shaped element of rubber mount centrally with square marking (arrows) on front center assembly suspension (51). The chamfered sides of the components must face each other.

4 Press front differential mount (51) with pressure plate (4b) flush onto rubber mount (60b).
