Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Clutch Pedal Assembly >> Service and Repair >> AR29.10-P-4598T Remove/Install Clutch Pedal

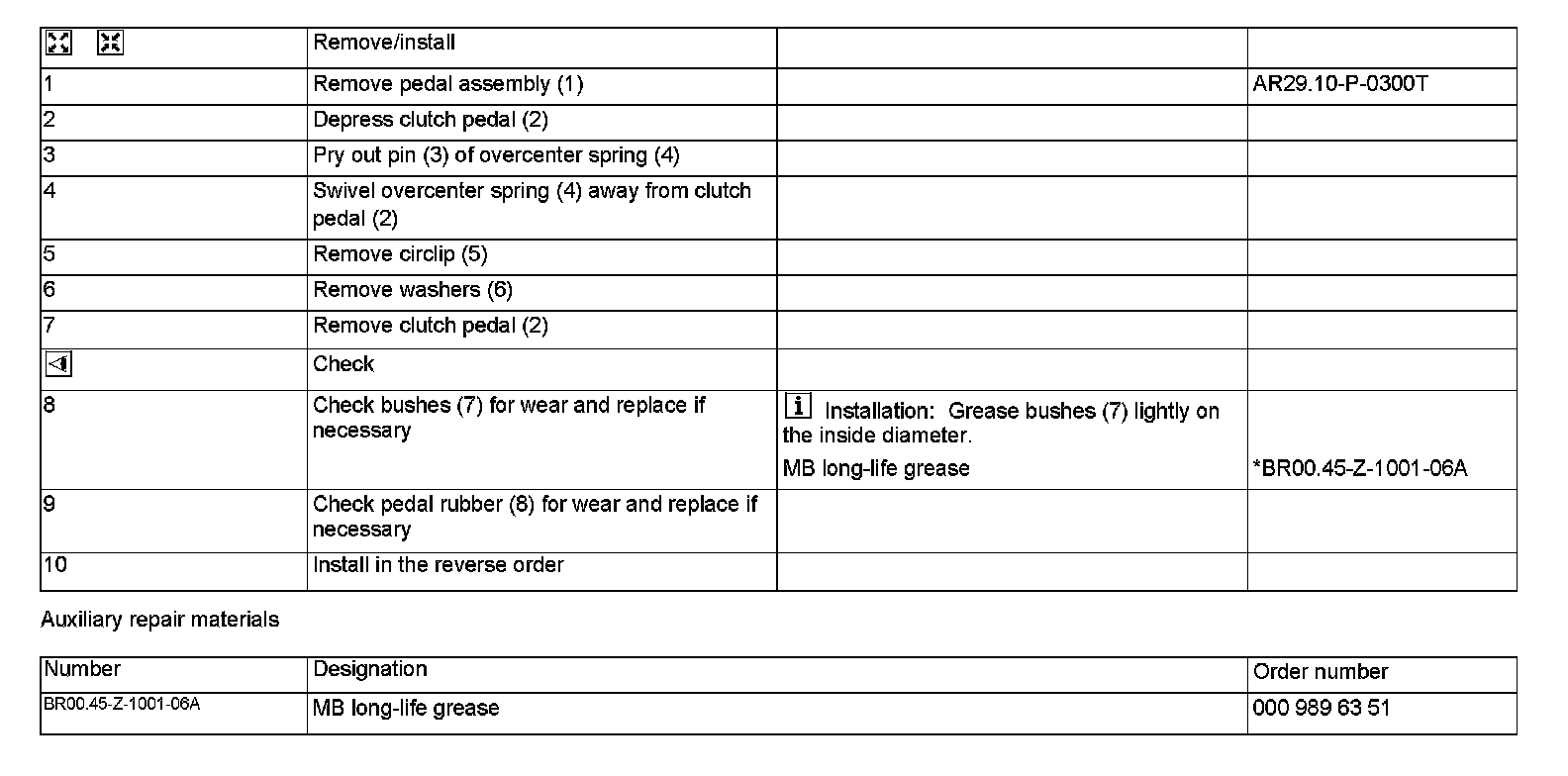

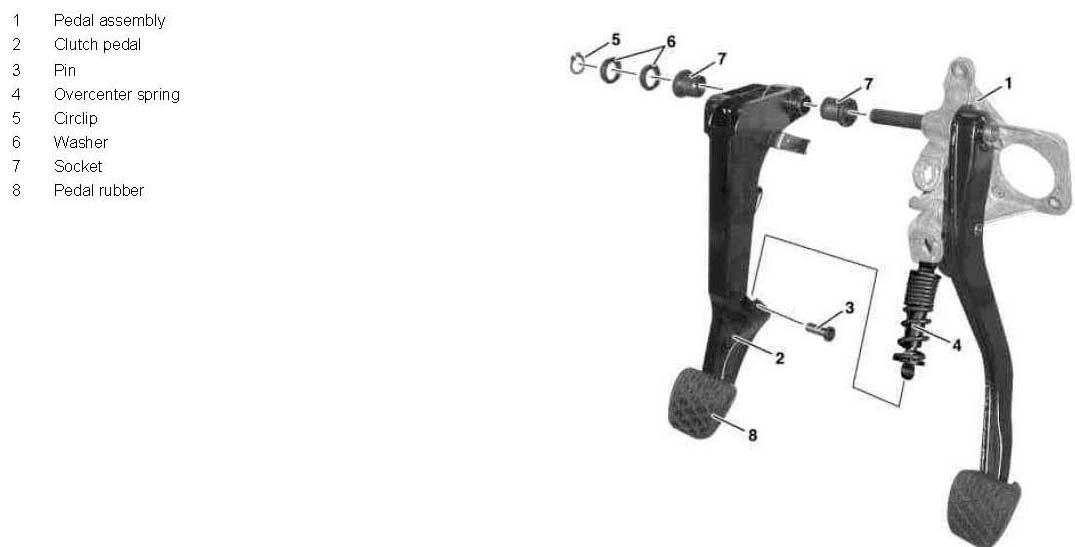

AR29.10-P-4598T Remove/Install Clutch Pedal




AR29.10-P-4598T Remove/Install Clutch Pedal
- except CODE (424) Sequentronic (SEQ) manual
