Clutch Master Cylinder: Service and Repair

AR25.20-P-0100T Removing and installing master cylinder
- except CODE (424) Sequentronic (SEQ) manual transmission

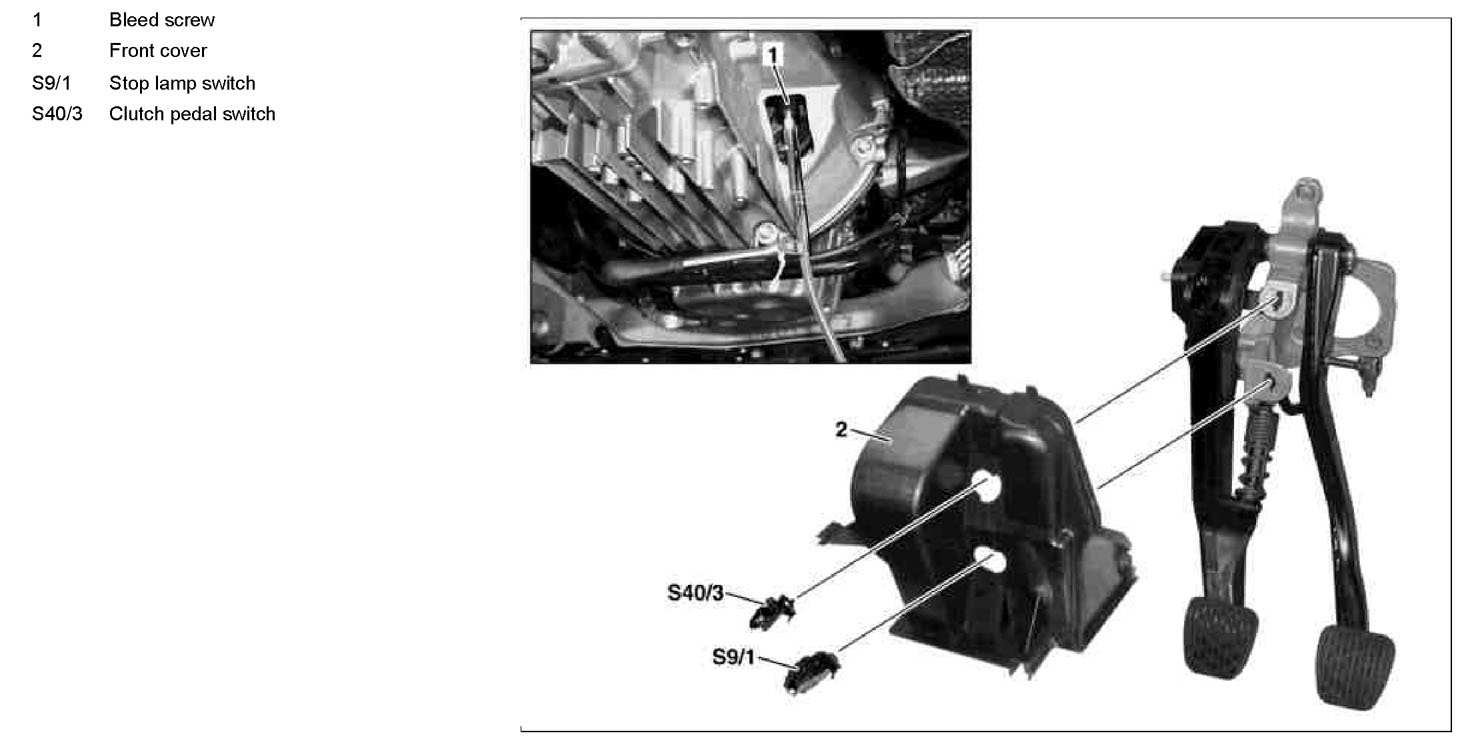

Component Identification:

Component Identification:

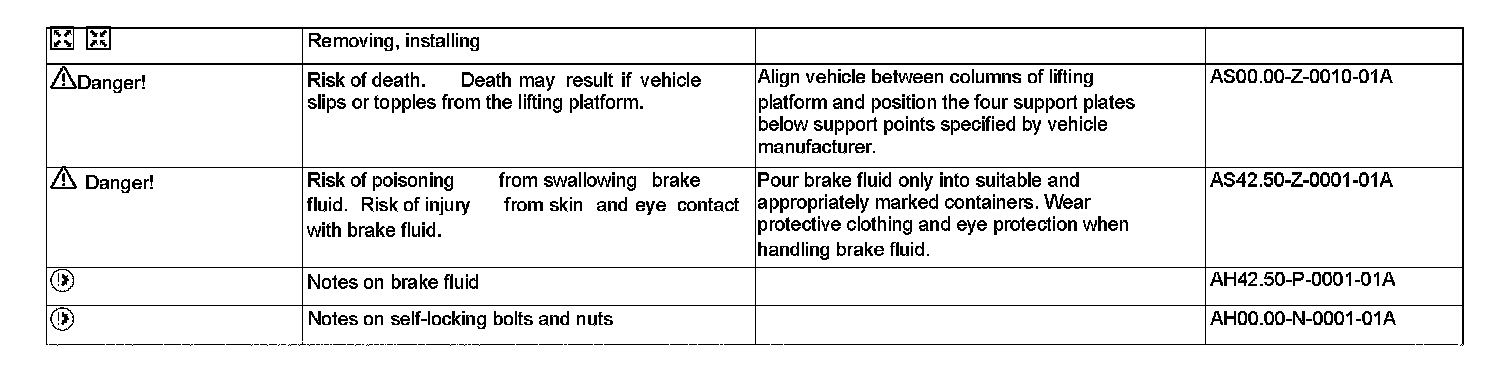

Warning:

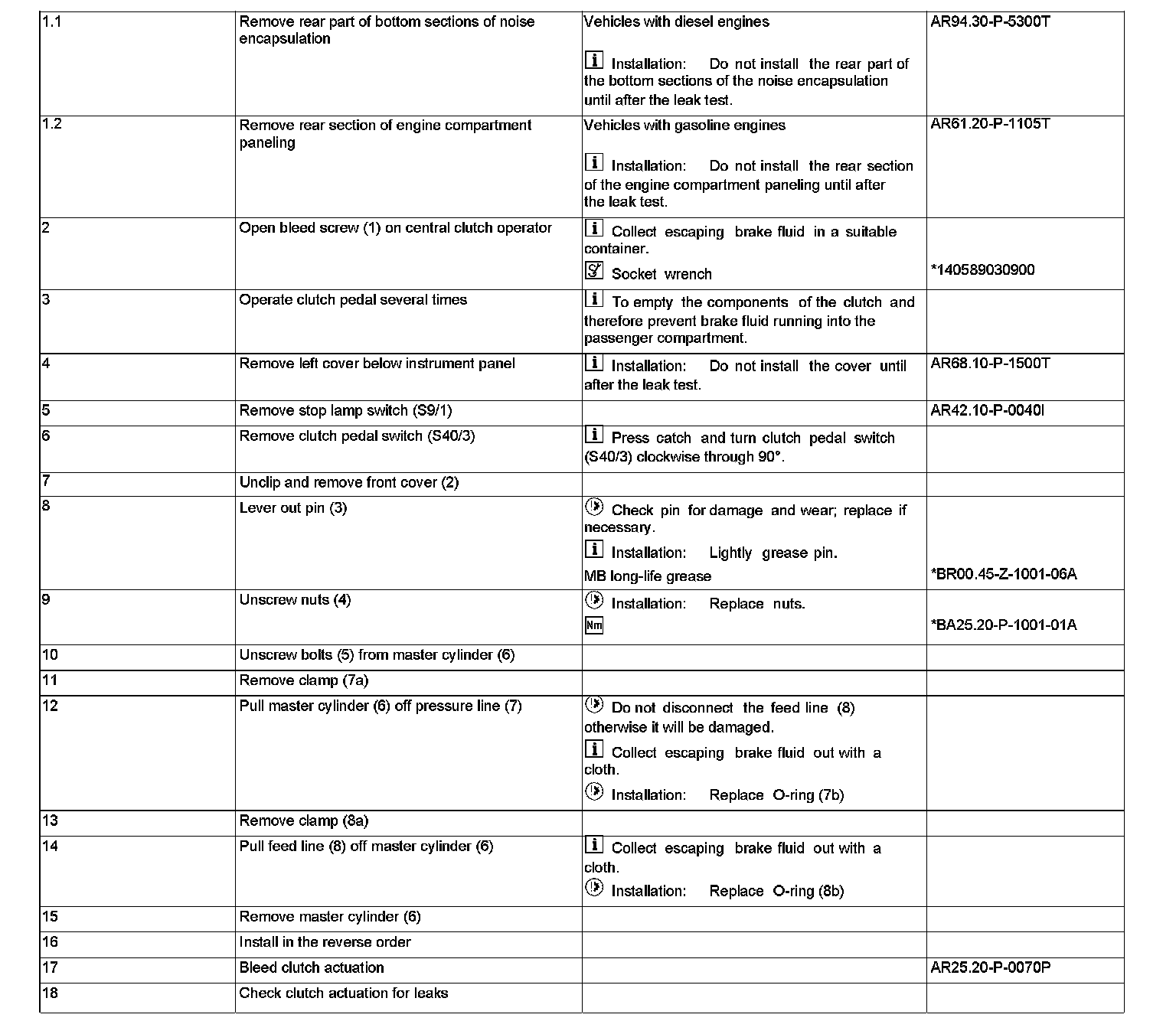

Steps 1.1 - 18:

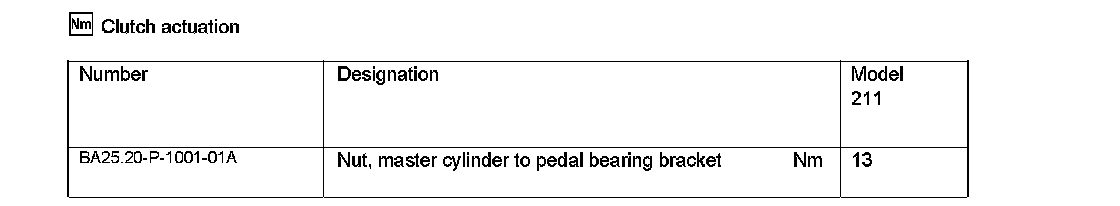

Clutch Actuation:

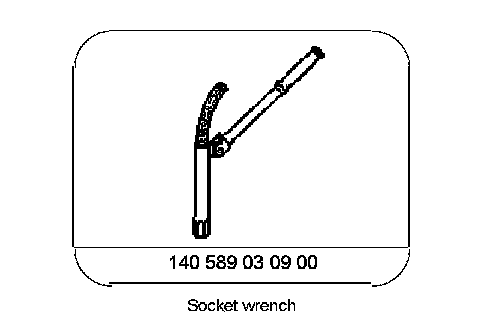

Special Tools:

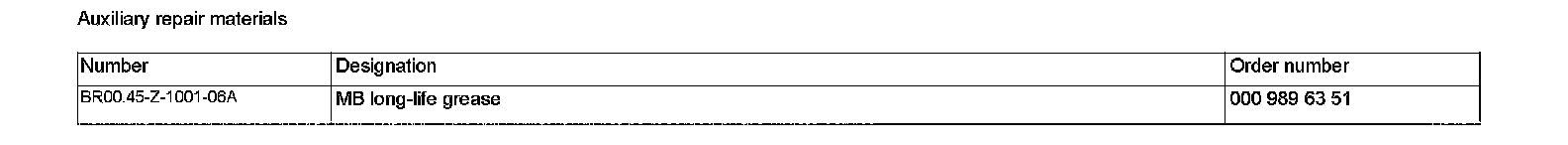

Auxiliary Repair Materials:
