Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatically Shifted Manual Transmission/Transaxle >> Shifter ASMT >> Service and Repair

Shifter ASMT: Service and Repair

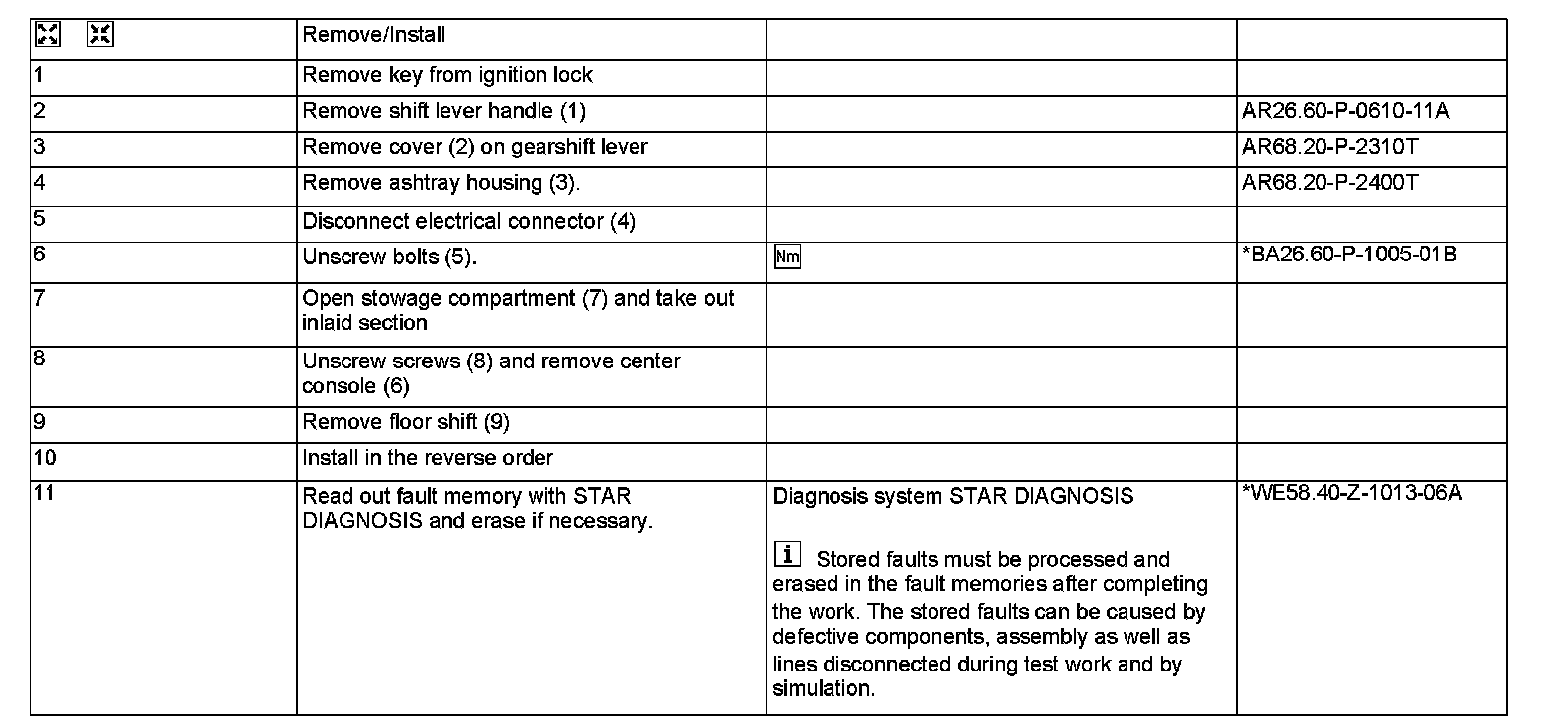

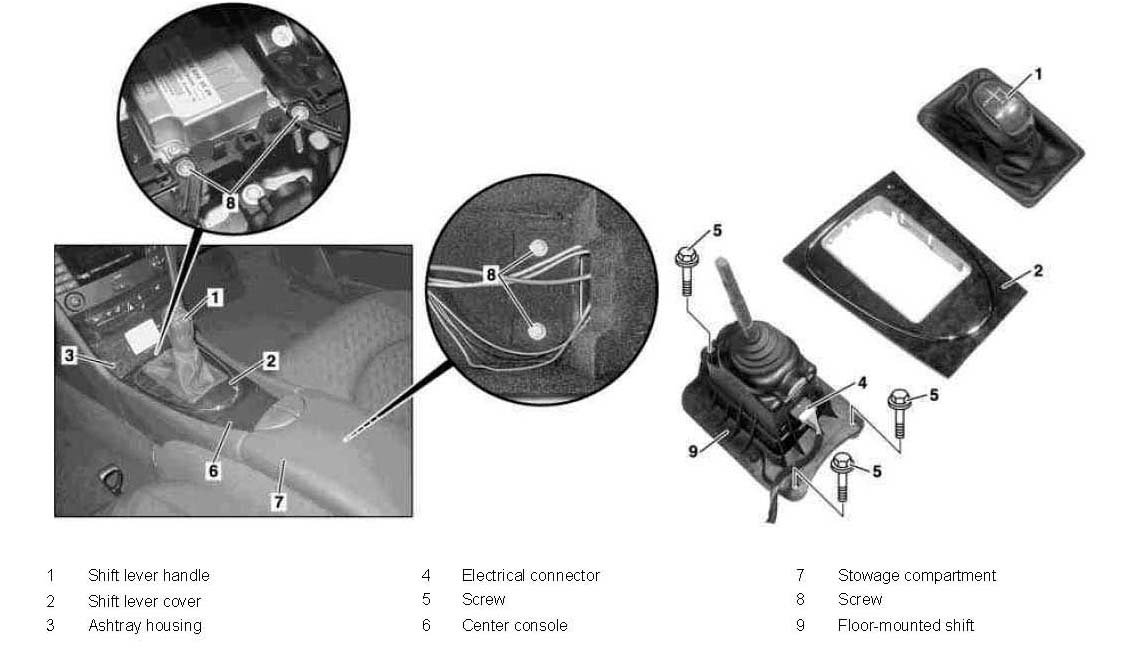

AR26.60-P-0600TA Remove/Install Floor Selector
- With CODE (424) Sequentronic (SEQ)
