Hydraulic Pump: Service and Repair

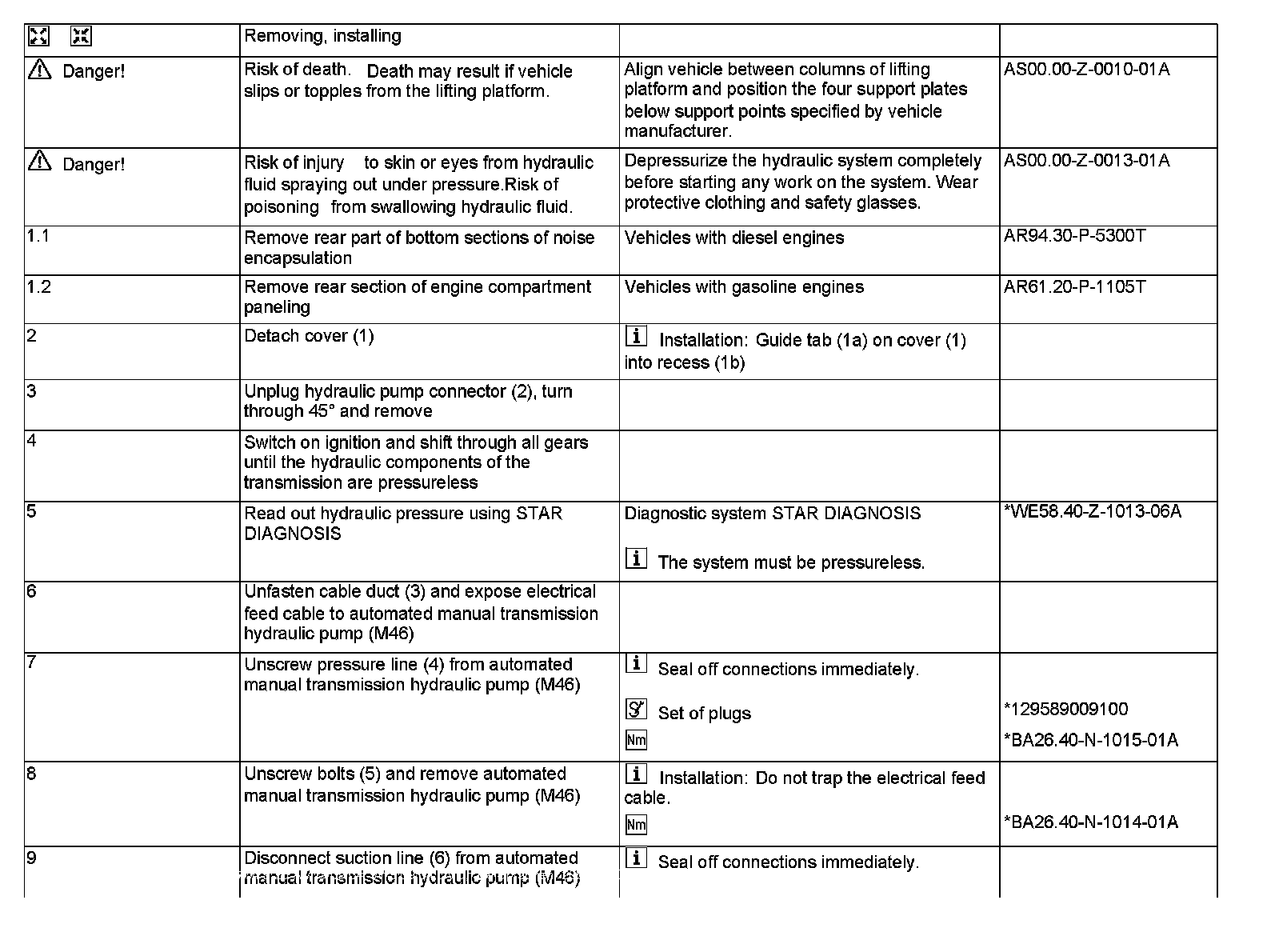

Removing and installing hydraulic pump on transmission
- with CODE (424) Sequentronic (SEQ) manual
