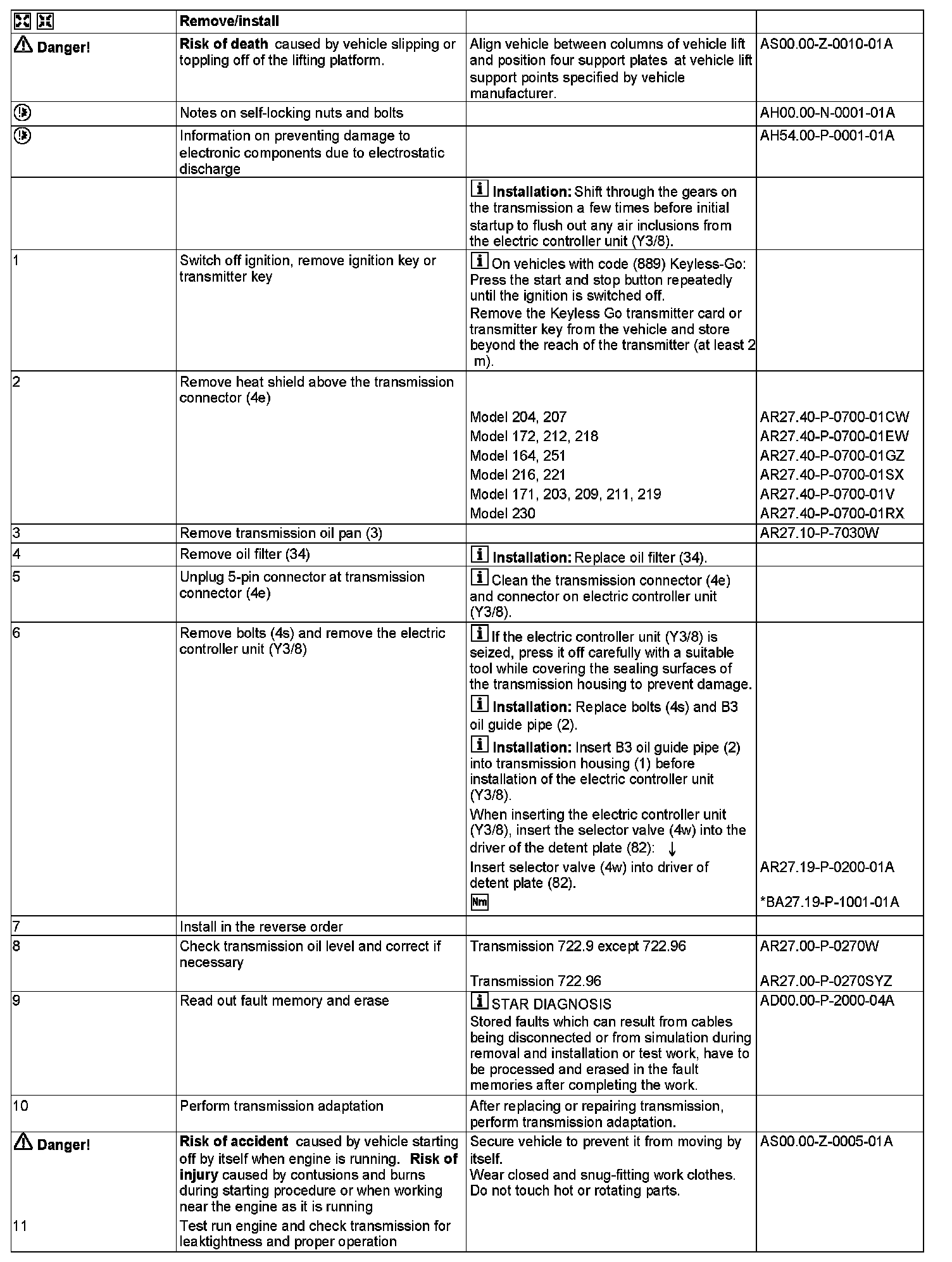

AR27.19-P-0200W Remove/Install Electrohydraulic Controller Unit (Transmission Installed)

AR27.19-P-0200W Remove/Install Electrohydraulic Controller Unit (Transmission Installed)
TRANSMISSION 722.9

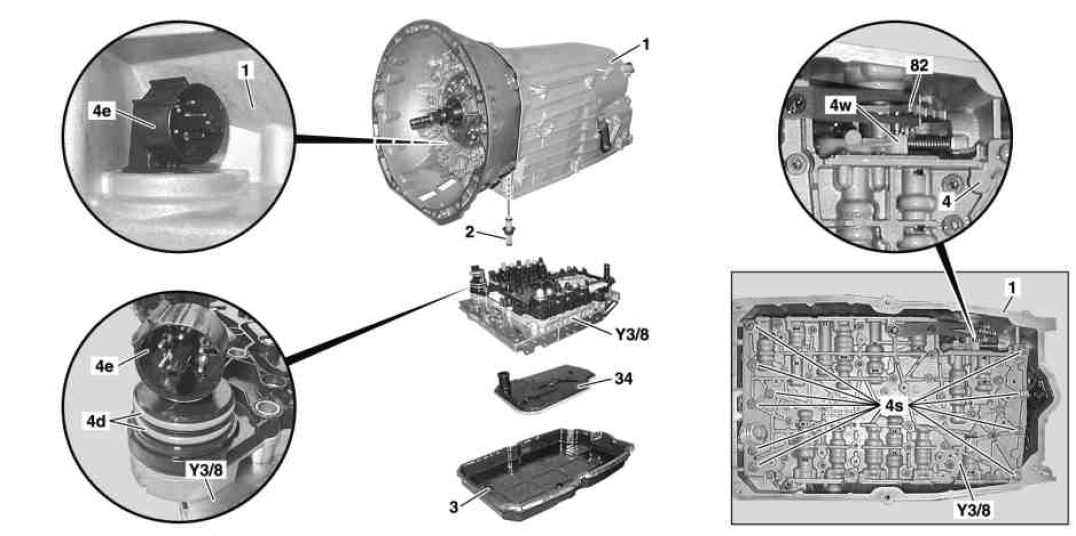

Shown on transmission of model 211

1 Transmission housing
2 B3 oil guide pipe
3 Transmission oil pan
4d O-ring
4e Transmission plug
4s Bolts (10 pcs.)
4w Selector valve
34 Oil filter
82 Detent plate

Y3/8 Electric control unit (VGS)
